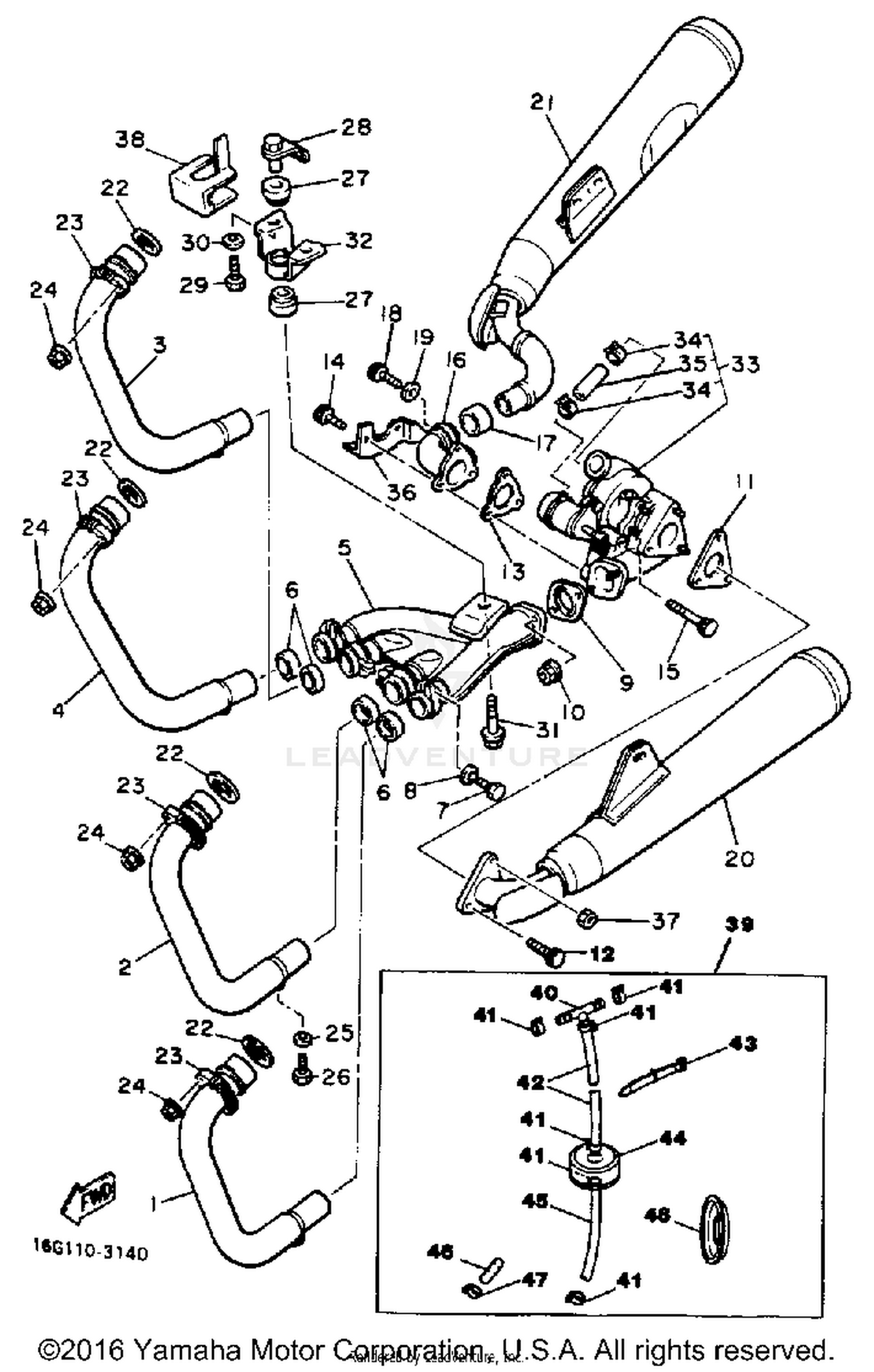

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
16G-14611-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST R
16G-14621-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#3
PIPE, EXHAUST 3
16G-14631-00-00
|
$212.99 | ||
|
Unavailable |
|||
|
#4
PIPE, EXHAUST 4
16G-14641-00-00
|
$150.99 | ||
|
Unavailable |
|||
|
#5
JOINT, EXHAUST L
16G-14615-00-00
|
$270.99 | ||
|
Unavailable |
|||
|
#6
GASKET, MUFFLER
16G-14714-00-00
Superseded by 4DN-14714-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, EXST PIPE
16G-14623-01-00
|
$7.10 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET 3
16G-14643-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, EXHAUST 4
16G-14653-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91311-06050-00
Superseded by 91314-06050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, EXHAUST R
16G-14625-00-00
|
$203.99 | ||
|
Unavailable |
|||
|
#17
GASKET, EXST PIPE
16G-14755-00-00
Superseded by 3JJ-14623-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#20
MUFFLER L
16G-14711-01-00
|
$369.99 | ||
|
Unavailable |
|||
|
#21
MUFFLER R
16G-14721-00-00
|
$369.99 | ||
|
Unavailable |
|||
|
#22
GASKET, EXHAUST PIPE
4H7-14613-00-00
Superseded by 4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, RING
4W5-14612-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#24
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX
97326-06008-00
Superseded by 97017-06008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, MUFFLER
36Y-14747-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
1AE-14638-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97013-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY, MUFFLER
4K0-14791-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#33
TURBO SUPRCHGR ASSEMBLY
16G-14690-01-00
|
$1,381.99 | ||
|
Unavailable |
|||
|
#34
CLIP
90467-08070-00
Superseded by 90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE, OUTLET
16G-14752-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#36
PROTC, EXHAUST PIPEPIPE
16G-14628-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#37
NUT
90179-08599-00
Superseded by 90179-08004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
GUIDE 1
16G-1479U-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#39
UNAVAILABLE IN PRICE BOOK
16-GW002-00-0
|
|||
|
Unavailable |
|||
|
#40
WAY 3
90413-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-08070-00
Superseded by 90467-08092-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
HOSE 1
16G-14694-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#43
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
VACUUM CONTRL VLVVALVE
16G-14696-00-00
|
$40.46 | ||
|
Unavailable |
|||
|
#45
HOSE 2
16G-14695-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#46
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPEC''L SHAP
90209-12222-00
|
$2.40 | ||
|
Unavailable |
|||
