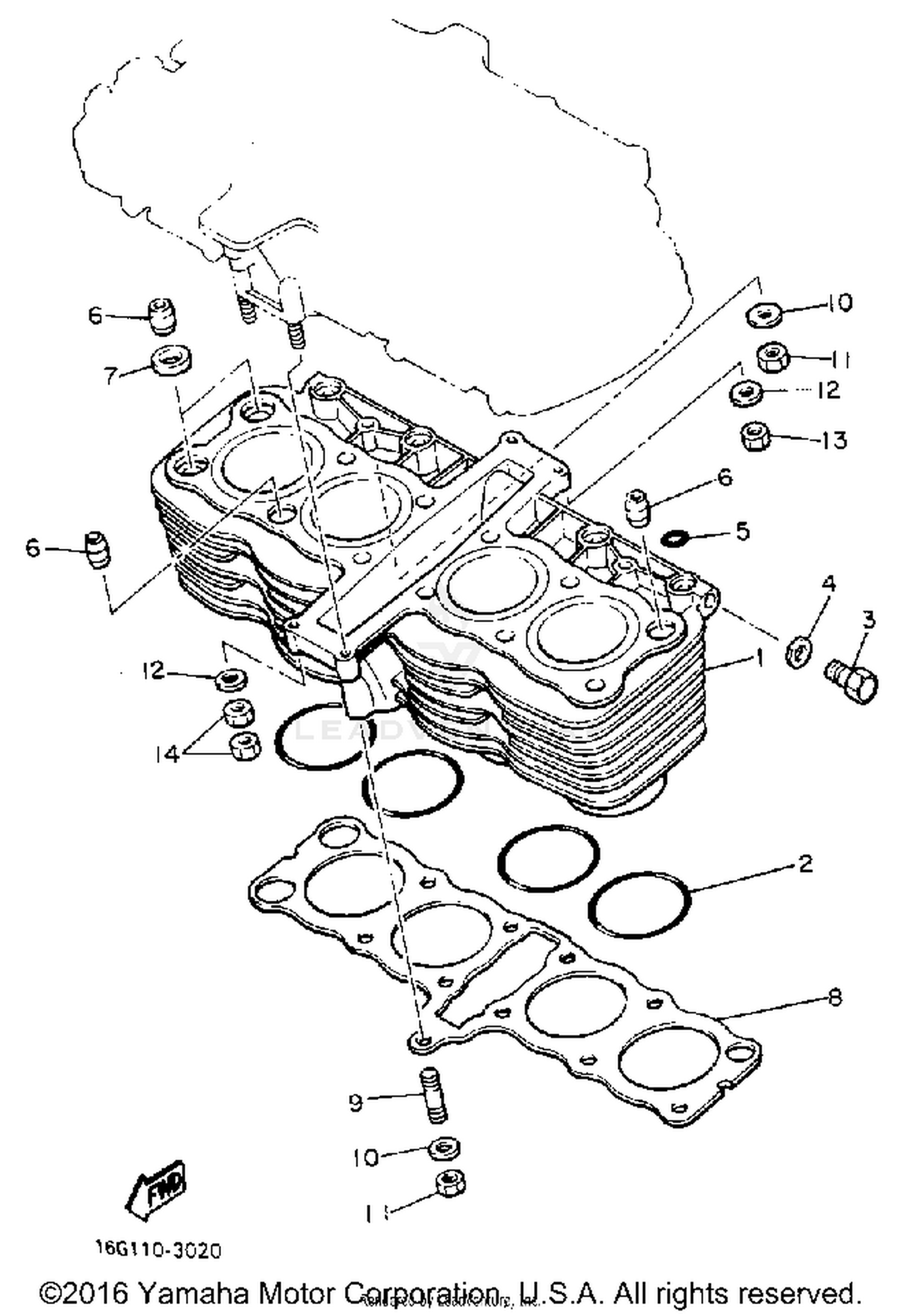

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11T-11310-00-00
|
$364.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-69434-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90340-12065-00
Superseded by 90105-122A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-10560-00
|
$1.75 | ||
|
Unavailable |
|||
|
#6
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-14131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CYLINDER
16G-11351-01-00
Superseded by 16G-11351-11-00
|
$52.99 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
95611-08330-00
Superseded by 95617-08330-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Unavailable |
|||
