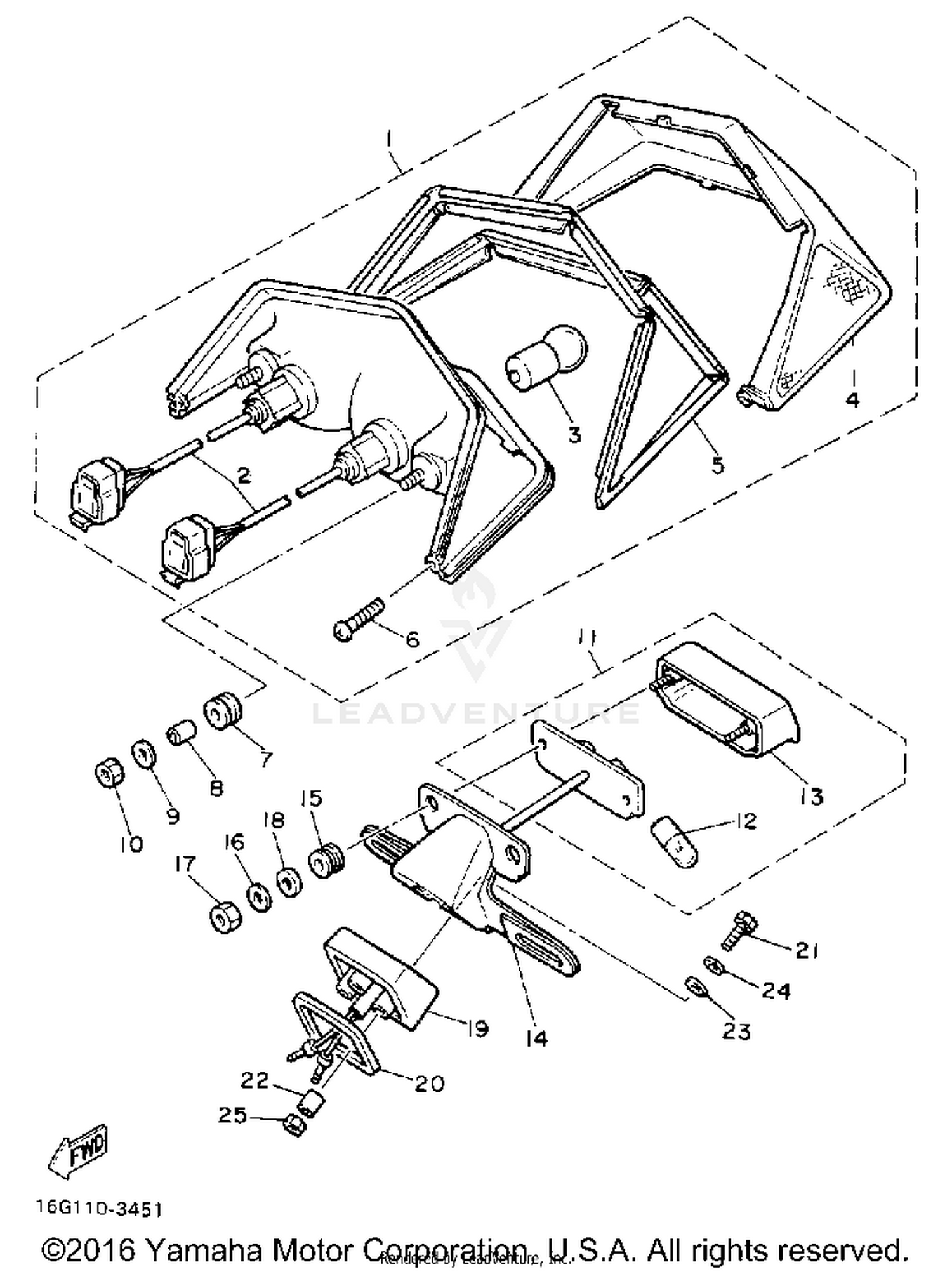

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
16G-84710-60-00
|
$149.99 | ||
|
Unavailable |
|||
|
#2
CORD ASY
4G0-84735-00-00
Superseded by 4SV-84735-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
16G-84721-60-00
|
$63.94 | ||
|
Unavailable |
|||
|
#5
GASKET, TAIL LENS
16G-84723-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#6
SCREW, TAPPING
97701-40510-00
Superseded by 97707-40610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER (11H-83541-00)
16G-84736-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-065G1-00
Superseded by 90387-06697-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
LICENSE LIGHT UNIT ASSY (4H3-8
2AX-84745-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#12
BULB, METER 12V 3.8W
3F9-84744-00-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, LICENSE LIGHT
2AX-84749-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, LICENSE
11H-84751-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#15
DAMPER
3G1-84553-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#16
WASHER, SPECIAL
3F9-84754-00-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#18
SPACER
3G1-84729-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#19
DAMPER
16G-84753-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#20
DAMPER
3G1-84753-60-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
BOLT (661)
97313-06050-00
Superseded by 97013-06050-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-064G4-00
|
$3.18 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
