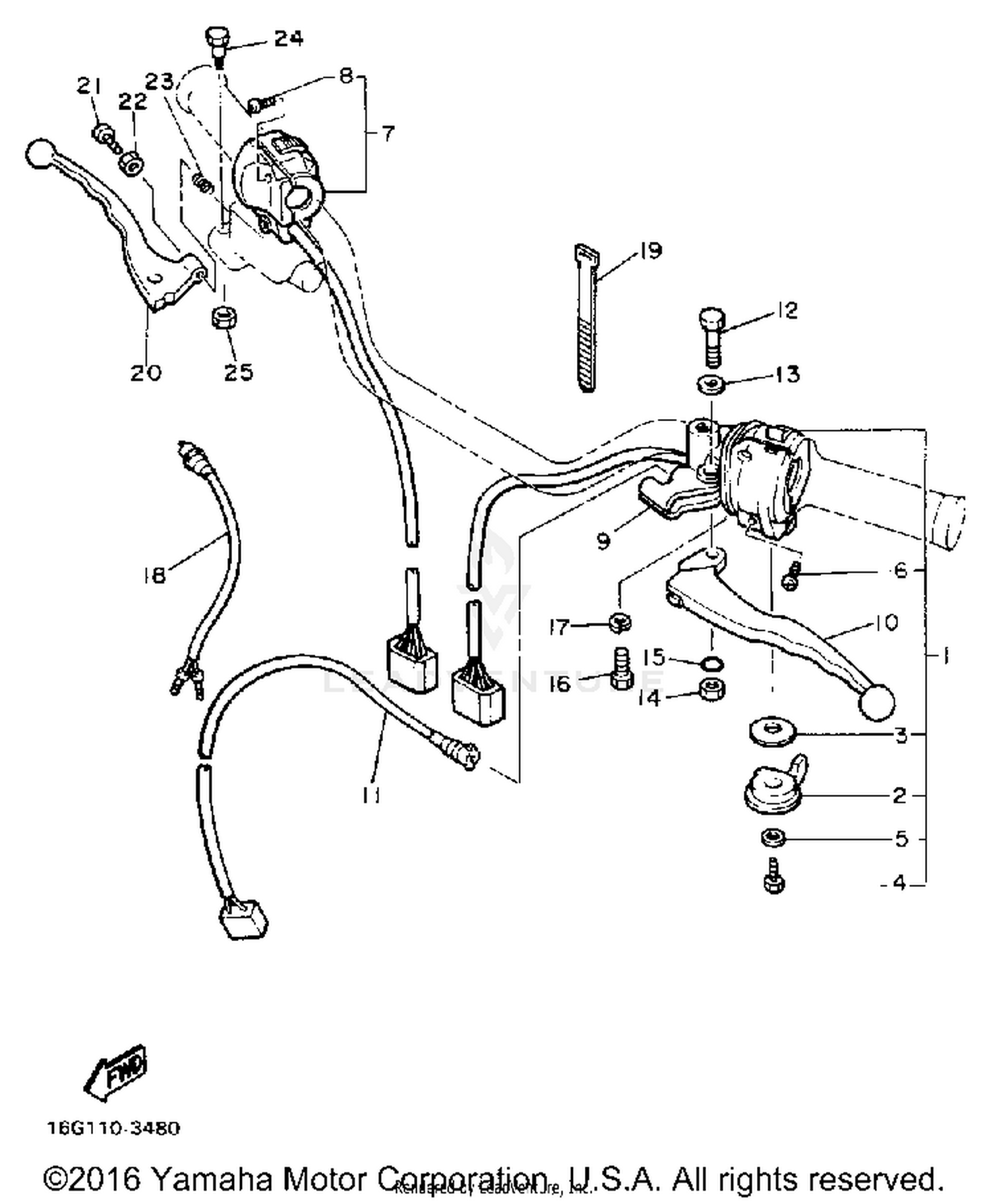

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, HANDLE 3
11H-83973-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#2
LEVER, STARTER
10M-83941-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH, HANDLE 2
26H-83975-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#9
HOLDER, LEVER 1
11H-82911-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER L
10W-83912-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH
3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-082A9-00
Superseded by 90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-11368-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER RH
4L0-83922-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-10510-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
