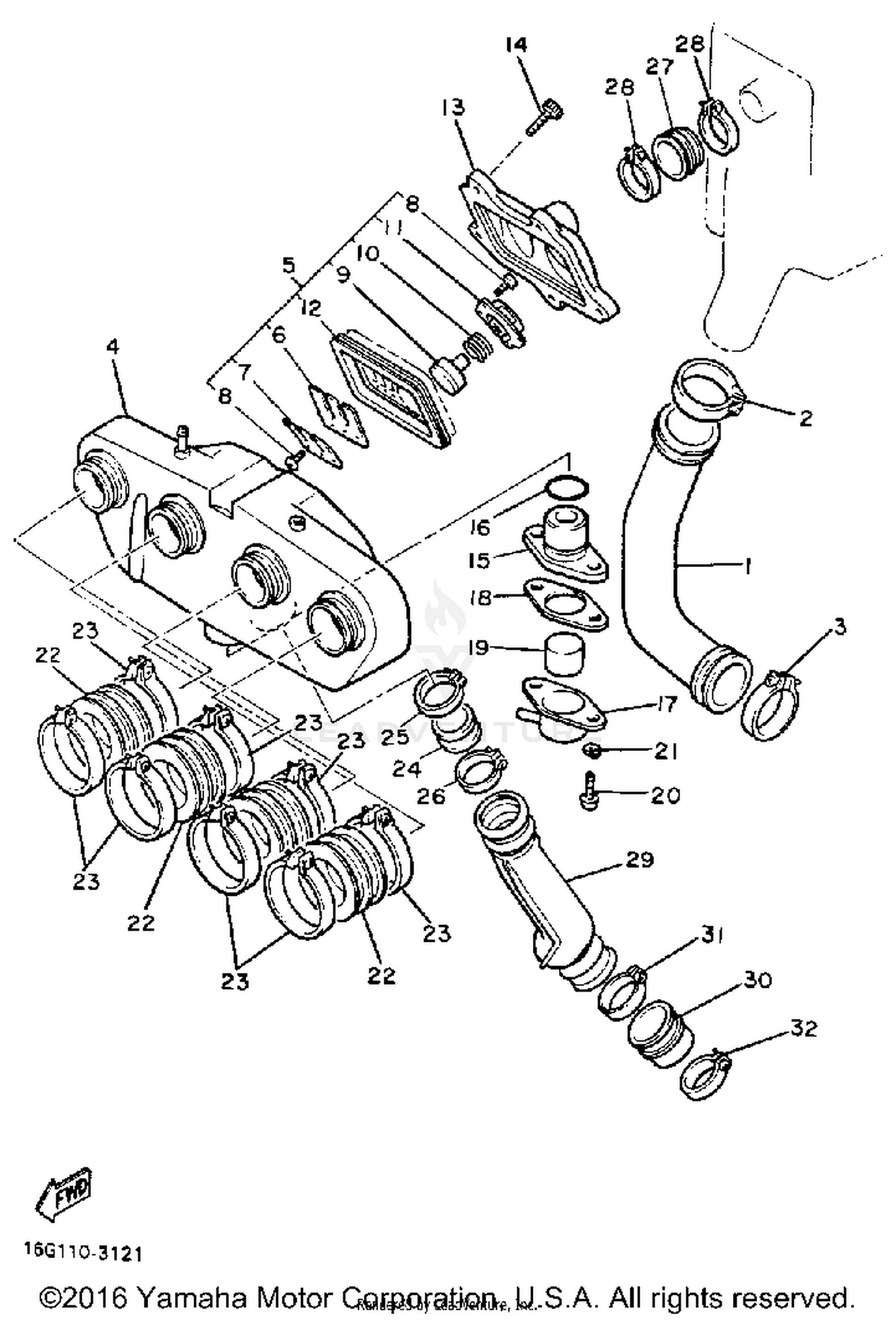

Surge Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUCT, TURBO 1
16G-1447A-00-00
|
$31.60 | ||
|
Unavailable |
|||
|
#2
CLAMP, HOSE (90460-52210-00)
90460-52264-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90460-45040-00
Superseded by 90450-45075-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANK, SURGE
16G-1446E-01-00
|
$172.99 | ||
|
Unavailable |
|||
|
#5
REED VALVE ASSEMBLY
16G-13610-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#6
REED, VALVE
16G-13613-00-00
|
$7.46 | ||
|
Unavailable |
|||
|
#7
STOPPER, REED VALVE
16G-13616-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, RELIEF
16G-1446J-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION
90501-16678-00
|
$1.18 | ||
|
Unavailable |
|||
|
#11
COVER, RELIEF VALVE
16G-1446H-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
SEAL, RUBBER
16G-13631-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#13
COVER, REED VALVE
16G-1446K-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#15
DRAIN VALVE ASSEMBLY
16G-1446L-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-13016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DRAIN VALVE
16G-1446M-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#18
GASKET
16G-1446N-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#19
SEAL
16G-1446R-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, SURGE TANK 1
16G-1446F-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#23
HOSE CLAMP ASSY
90460-60165-00
Superseded by 90450-62006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT, SURGE TANK 2
16G-1446G-01-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
HOSE CLAMP ASSY
90460-46206-00
Superseded by 90450-47002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, HOSE
90460-42212-00
|
$3.61 | ||
|
Unavailable |
|||
|
#27
JOINT, AIR FILTER 1
16G-1440F-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#28
CLAMP, HOSE
90460-40223-00
|
$1.98 | ||
|
Unavailable |
|||
|
#29
DUCT, TURBO 2
16G-1448A-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#30
JOINT, TURBO 2
16G-1448E-00-00
|
$10.64 | ||
|
Unavailable |
|||
|
#31
CLAMP, HOSE
90460-41191-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP, HOSE
90460-39052-00
Superseded by 90460-41191-00
|
$15.99 | ||
|
Unavailable |
|||
