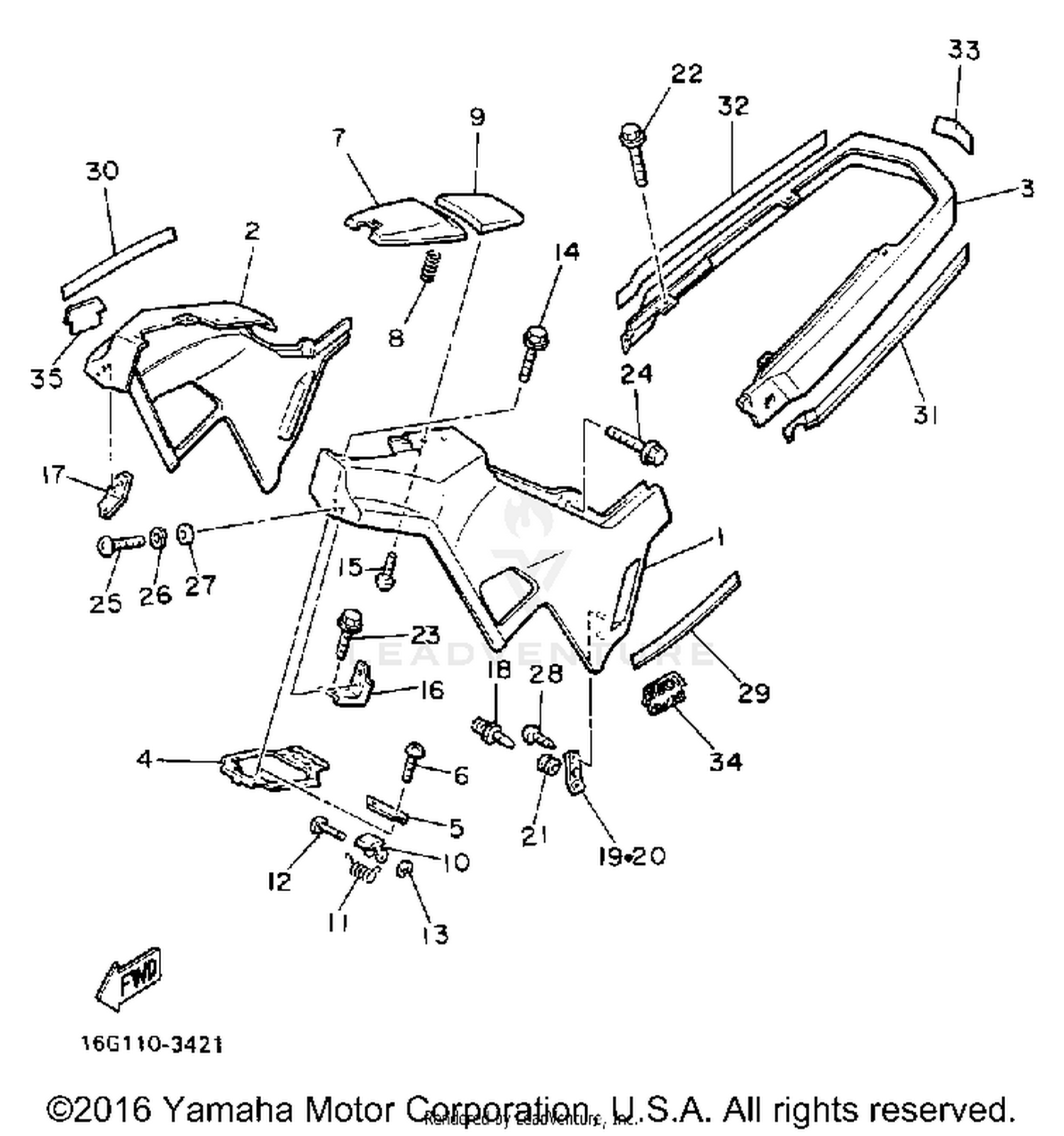

Fairing 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, REAR 1
16G-2835N-00-20
|
$466.99 | ||
|
Unavailable |
|||
|
#2
BODY, REAR 2
16G-2835R-00-20
|
$486.99 | ||
|
Unavailable |
|||
|
#3
BODY, REAR 3
16G-2835T-00-20
|
$183.99 | ||
|
Unavailable |
|||
|
#4
BRACKET
16G-28366-00-00
|
$37.13 | ||
|
Unavailable |
|||
|
#5
STAY, LEG SHIELD R
16G-28336-00-00
|
$4.94 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98506-03006-00
Superseded by 98507-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
16G-28365-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#8
SPRING, COMPRESSION
90501-14280-00
|
$3.80 | ||
|
Unavailable |
|||
|
#9
PAD
16G-28378-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#10
HOOK
16G-28379-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-12395-00
Superseded by 90508-104A1-00
|
$4.90 | ||
|
Unavailable |
|||
|
#12
PIN
90249-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING
97780-50612-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, LEG SHIELD L
16G-28321-00-00
|
$7.74 | ||
|
Unavailable |
|||
|
#17
STAY, LEG SHIELD R
16G-28322-00-00
|
$7.46 | ||
|
Unavailable |
|||
|
#18
JOINT
16G-28342-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BRACKET 8
16G-2833E-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
BRACKET 7
16G-2833A-00-00
|
$7.74 | ||
|
Unavailable |
|||
|
#21
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, TAPPING
97780-50612-00
|
$4.05 | ||
|
Unavailable |
|||
|
#29
GRAPHIC 7
16G-2839A-10-00
|
$12.92 | ||
|
Unavailable |
|||
|
#30
GRAPHIC 8
16G-2839E-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#31
GRAPHIC 9
16G-2839F-10-00
|
$16.02 | ||
|
Unavailable |
|||
|
#32
GRAPHIC 10
16G-2839G-10-00
|
$13.36 | ||
|
Unavailable |
|||
|
#33
EMBLEM 1
16G-2839H-00-00
|
$12.72 | ||
|
Unavailable |
|||
|
#34
EMBLEM 1
16G-21781-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#35
EMBLEM 1
16G-21781-00-00
|
$22.99 | ||
|
Unavailable |
|||
