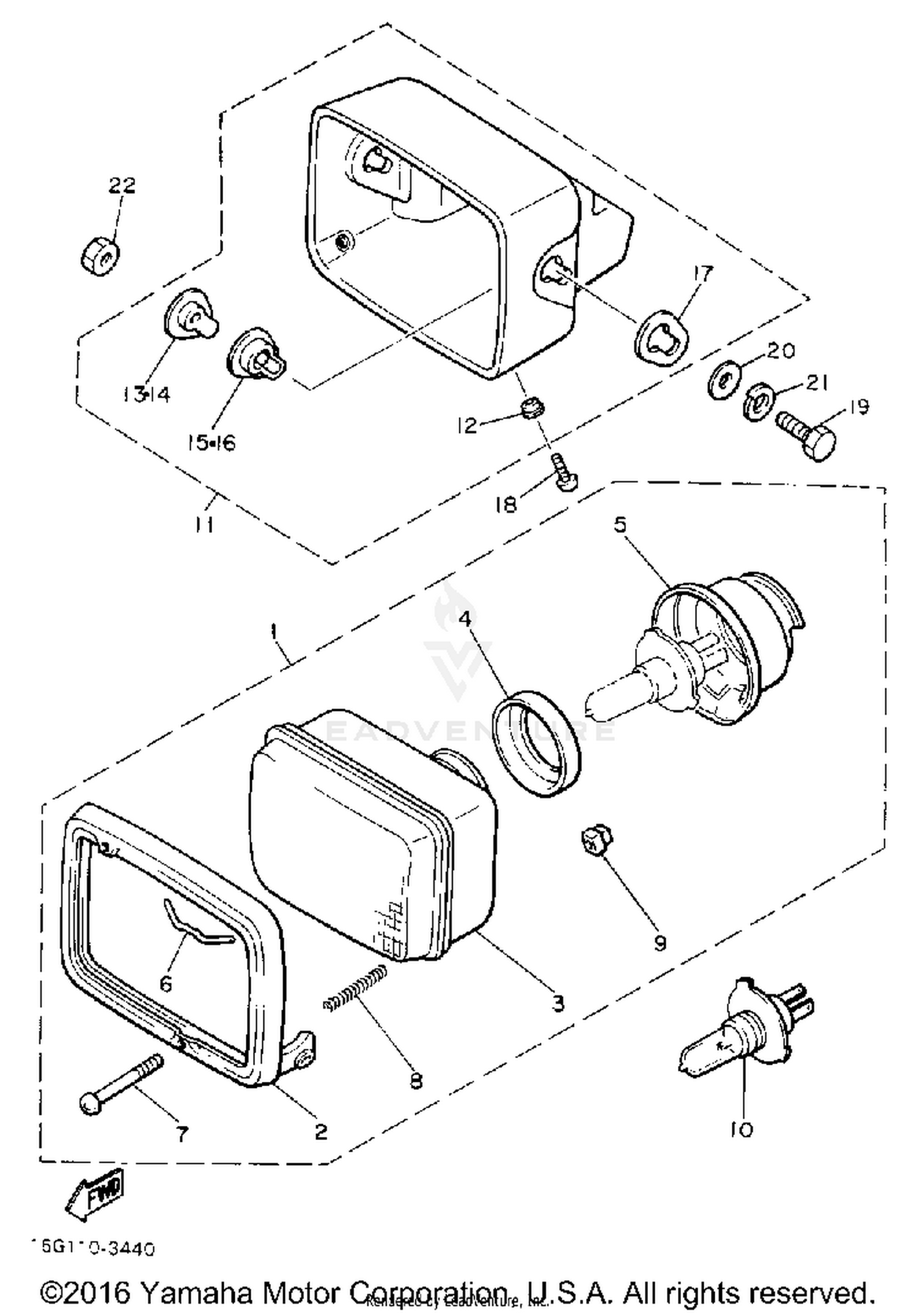

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
16G-84303-A0-00
|
$76.99 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
16G-84315-00-00
|
$45.46 | ||
|
Unavailable |
|||
|
#3
LENS, HEADLIGHT
11H-84321-60-00
|
$121.99 | ||
|
Unavailable |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SET
5G2-84324-A0-00
Superseded by 55X-84124-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, RIM ADJUSTER
43F-84131-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY ASSEMBLY
16G-84330-00-00
|
$69.81 | ||
|
Unavailable |
|||
|
#12
COLLAR, SCREW
5G2-84333-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR 1
5G2-84388-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, MNTNG RING
5G2-84398-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, HEADLIGHT 1
5G2-84366-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, HEADLIGHT 2
5G2-84367-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER 3
5G2-84368-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97326-08030-00
Superseded by 97017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
