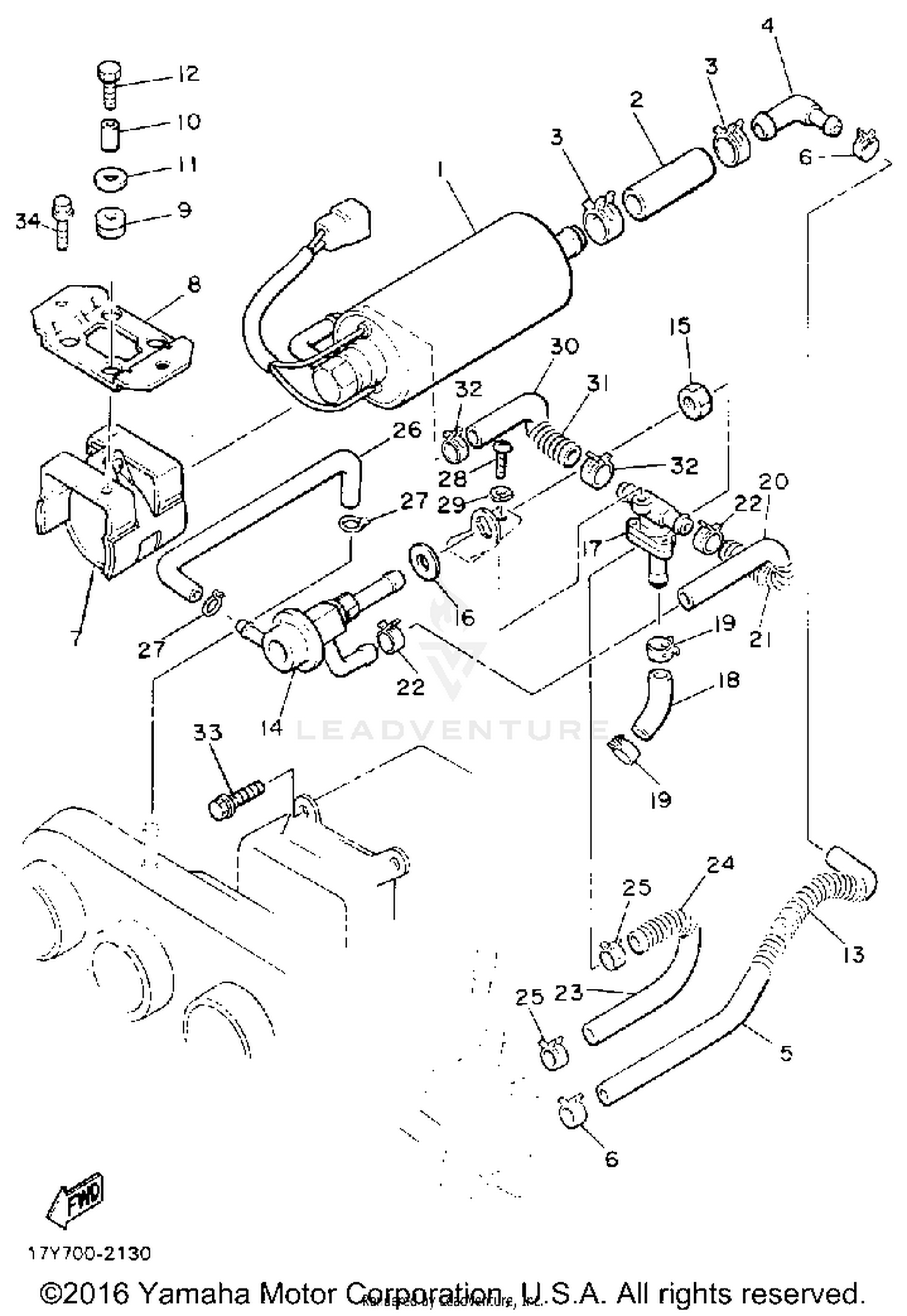

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL PUMP COMP.
16G-13907-00-00
|
$1,775.99 | ||
|
Unavailable |
|||
|
#2
PIPE, FUEL 2
16G-13972-01-00
|
$3.65 | ||
|
Unavailable |
|||
|
#3
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, JOINT
16G-13758-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
PIPE, FUEL 1
16G-13971-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, DAMPER
16G-13994-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#8
STAY 1
16G-14493-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-12475-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-08704-00
|
$3.80 | ||
|
Unavailable |
|||
|
#14
REGULATOR, PRESSURE (16G-13906-
16G-13906-02-00
|
$291.99 | ||
|
Unavailable |
|||
|
#15
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHECK VALVE ASSEMBLY
16G-13940-02-00
|
$54.99 | ||
|
Unavailable |
|||
|
#18
PIPE, FUEL 4
16G-13974-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
PIPE, FUEL 5
16G-13975-01-00
|
$4.40 | ||
|
Unavailable |
|||
|
#21
SPRING, COMPRESSION
90501-08706-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
PIPE, FUEL 6
16G-13976-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#24
SPRING, COMPRESSION
90501-08707-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
PIPE, REGULATOR
16G-13978-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, FUEL 3
16G-13973-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
SPRING, COMPRESSION
90501-08705-00
|
$1.28 | ||
|
Unavailable |
|||
|
#32
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
BOLT, WITH WASHER
90119-06029-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
