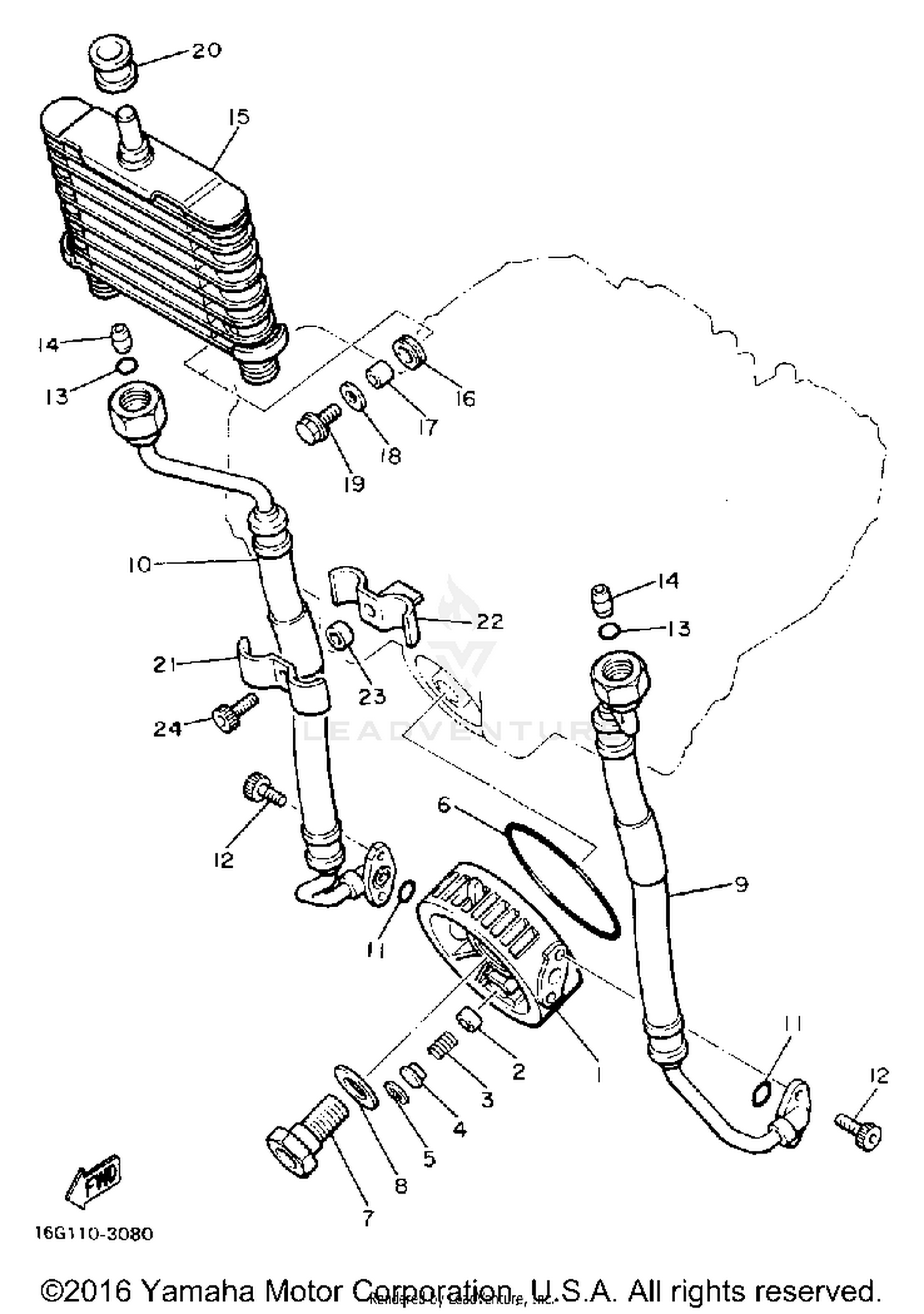

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, ADAPTOR
4K0-13461-01-00
Superseded by 5N1-13461-01-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUNGER
2H9-13493-00-00
Superseded by 4KM-13493-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-12413-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-06173-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-17500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-87723-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNAVAILABLE IN PRICE BOOK (9040
90401-20098-00
|
|||
|
Unavailable |
|||
|
#8
WASHER, PLATE (T2.0)
90201-25526-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, OIL 1
16G-13464-00-00
|
$84.59 | ||
|
Unavailable |
|||
|
#10
INACTIVE PART NUMBER
16G-13465-00-00
|
$86.94 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-10197-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-12152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL COOLER ASSEMBLY
16G-13470-01-00
|
$266.99 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-12475-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95826-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-16284-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90462-10066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90462-10095-00
|
$11.17 | ||
|
Unavailable |
|||
|
#23
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
