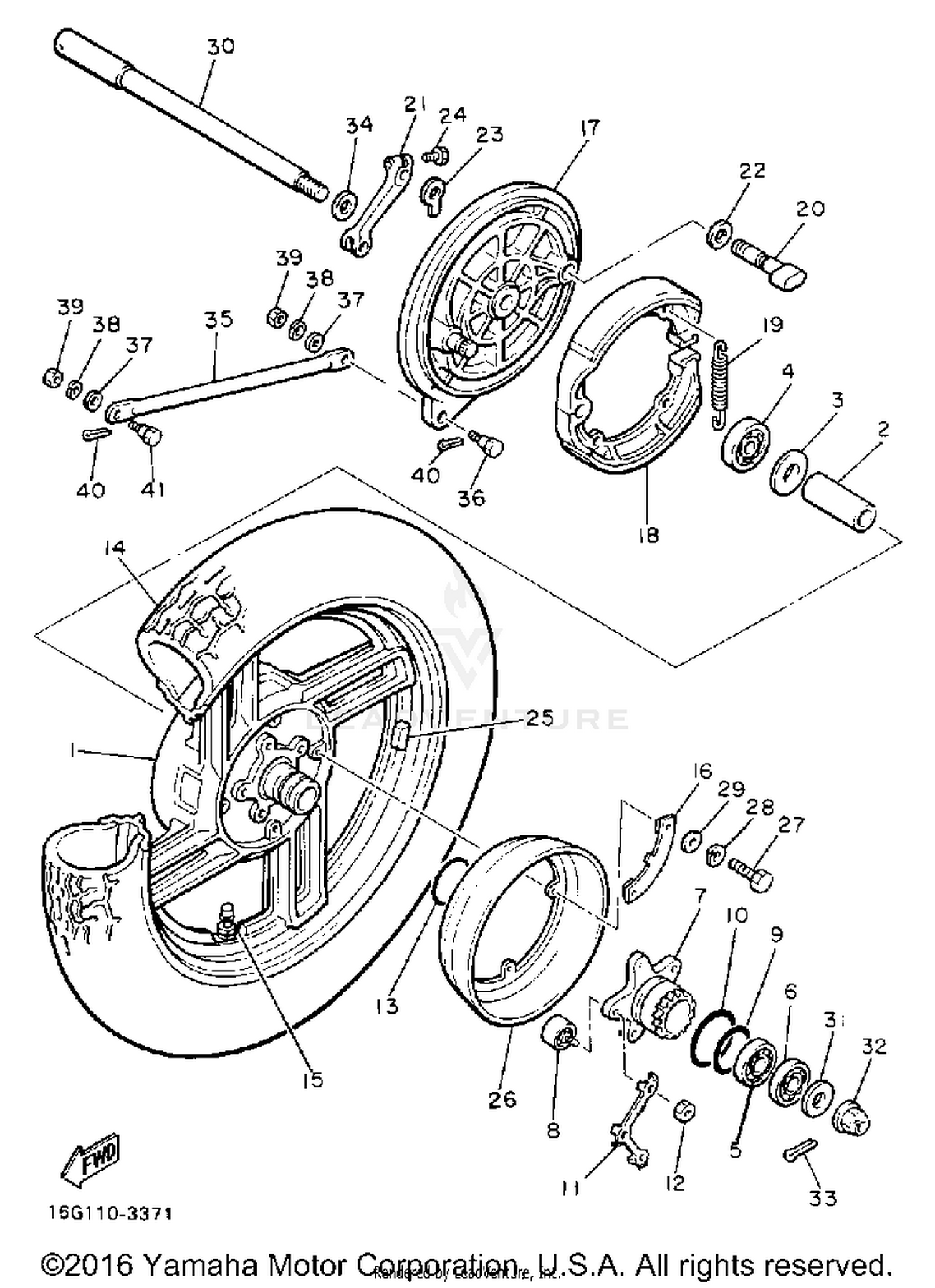

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
16G-25338-29-4N
|
$607.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17125-00
|
$9.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
CLUTCH, HUB
16G-25366-00-00
|
$41.87 | ||
|
Unavailable |
|||
|
#8
DAMPER
42H-25364-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-48530-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-59531-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
16G-25412-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-57428-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
120/90V18 S716 TL
94112-18483-00
|
$136.99 | ||
|
Unavailable |
|||
|
#15
VALVE, RIM
93900-00001-00
Superseded by 93900-00031-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, DAMPER
16G-2531A-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#17
INACTIVE PART NUMBER
16G-25321-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#18
BRAKE SHOE KIT
5A8-W2536-00-00
Superseded by 3DR-W253E-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT
4H7-25351-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEVER, CAMSHAFT
341-25355-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, INDICATOR
4H7-2533A-02-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#26
COVER, PLATE
4H7-25327-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#27
BOLT
97321-05020-00
Superseded by 97013-05020-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
4H7-25381-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-144J5-00
Superseded by 90201-14022-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90179-14217-00
Superseded by 90171-14031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR, WHEEL
56W-25377-00-00
Superseded by 4H7-25377-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAR, TENSION
3H0-25371-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
90109-08406-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
