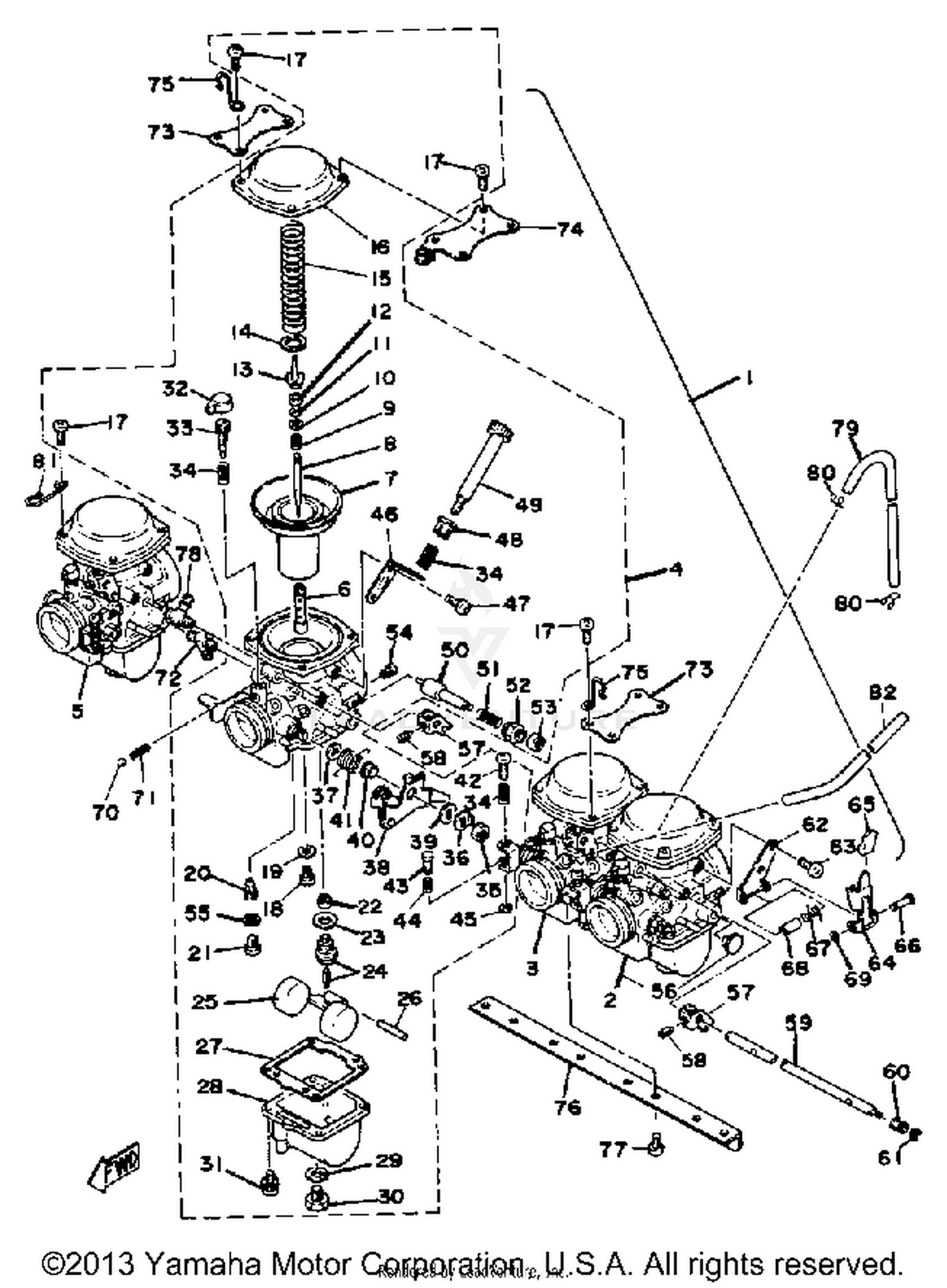

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CARBURETOR ASSEMBLY 1
2H7-14901-10-00
|
$258.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2 (2H7-14
2H7-14902-11-00
|
$270.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 3
2H7-14903-11-00
|
$214.99 | ||
|
Unavailable |
|||
|
#5
CARBURETOR ASSEMBLY 4
2H7-14904-10-00
|
$214.99 | ||
|
Unavailable |
|||
|
#6
NOZZLE, MAIN
2H7-14941-02-00
|
$38.38 | ||
|
Unavailable |
|||
|
#7
DIAPHRAGM ASSEMBLY
2F3-14940-00-00
|
$298.99 | ||
|
Unavailable |
|||
|
#8
NEEDLE
2H7-14116-06-00
|
$13.49 | ||
|
Unavailable |
|||
|
#9
SPRING
2F0-14589-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#10
WASHER
2F3-14952-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
CLIP
256-14919-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING
2F0-14918-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#13
PLATE, NEEDLE FTNG
2F3-14946-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
CLIP
2F0-14919-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
SPRING, DIAPHRAGM
2H7-14933-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#16
COVER, DIAPHRAGM
2A2-14958-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#
COVER, DIAPHRAGM
2H7-14958-00-00
|
$13.58 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, MAIN #137.5
620-1423A-78-A0
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, PILOT #42.5
256-14142-42-A0
|
$8.99 | ||
|
Unavailable |
|||
|
#21
SCREW
2F1-14991-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NEEDLE VALVE ASSEMBLY
1J7-14190-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT
2A2-14985-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, FLOAT CHMBR
2A2-14984-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BODY, FLOAT CHAMBER
2H7-14981-32-00
|
$20.99 | ||
|
Unavailable |
|||
|
#
BODY, FLOAT CHAMBER
2A2-14981-32-00
|
$18.22 | ||
|
Unavailable |
|||
|
#
BODY, FLOAT CHAMBER
2G2-14981-32-00
|
$20.14 | ||
|
Unavailable |
|||
|
#29
WASHER
1L9-14952-00-00
Superseded by 256-14956-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
1A8-14991-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#31
SCREW, PN/HD.W/WSHR
97601-05114-00
|
$0.89 | ||
|
Unavailable |
|||
|
#32
CAP
8A7-14969-00-00
|
$7.00 | ||
|
Unavailable |
|||
|
#33
SCREW, PILOT
2A2-14923-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, THRTL STOP
256-14934-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#35
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
256-14953-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#37
SEAL
2A2-14997-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
LEVER, THROTTLE 2
2H7-14964-00-00
|
$1.94 | ||
|
Unavailable |
|||
|
#
LEVER, THROTTLE
2H7-14913-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#
LEVER, THROTTLE 4
2H7-14963-00-00
|
$3.07 | ||
|
Unavailable |
|||
|
#39
VALVE, THROTTLE
306-14970-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#40
RING
2H7-14918-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#41
SPRING, THRTL LEVER
2H7-14931-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#
SPRING, THRTL LEVER
2H9-14931-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#
SPRING, THRTL 2
2H7-14932-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#42
SCREW, THROTTLE
256-14922-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#43
ROD
2H7-14992-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#44
SPRING, THRTL STOP
584-14934-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#45
CLIP
2H7-14937-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#46
PLATE
2F3-14243-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#47
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BUSH
1J7-14998-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#49
SCREW, THROTTLE
2H7-14922-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#50
PLUNGER, STARTER
2A2-14171-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#51
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#52
CAP, PLUNGER
2A2-14174-00-00
|
$11.18 | ||
|
Unavailable |
|||
|
#53
COVER, PLUNGER CAP
2A2-14173-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#54
PILOT JET, AIR #180
2A2-14172-36-00
|
$10.32 | ||
|
Unavailable |
|||
|
#55
WASHER
341-14952-00-00
Superseded by 584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#56
PLUG, DRAIN
2H7-14191-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#57
LEVER, STARTER
2A2-14905-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#58
SCREW
11V-14991-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#59
SHAFT, STARTER LVR
2H7-14978-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#60
BUSH
2H7-14998-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#61
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
BRACKET
3H3-14995-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#63
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Unavailable |
|||
|
#64
LEVER, STARTER 1
2F3-14975-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#65
CAP
2F3-14968-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#66
PIN, FLOAT
2F3-14386-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#67
SPRING
2F3-14938-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#68
PIPE
2F3-14996-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#69
CLIP
2F3-14919-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#70
BALL
93501-08001-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#71
SPRING
583-14589-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
PIPE, STARTER CON
1J7-14988-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
PLATE
2H7-14243-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#74
BRACKET, THROTTLE 1
2H7-14926-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#75
CLAMP
90462-13032-00
|
$9.49 | ||
|
Unavailable |
|||
|
#76
PLATE
2H7-14146-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#77
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
PIPE, STARTER CON
2H7-14988-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#79
HOSE
90445-10365-00
|
$6.49 | ||
|
Unavailable |
|||
|
#80
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#81
CLIP
90468-20072-00
|
$1.49 | ||
|
Unavailable |
|||
|
#82
HOSE (L150)
90445-07378-00
Superseded by 90445-082A9-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
