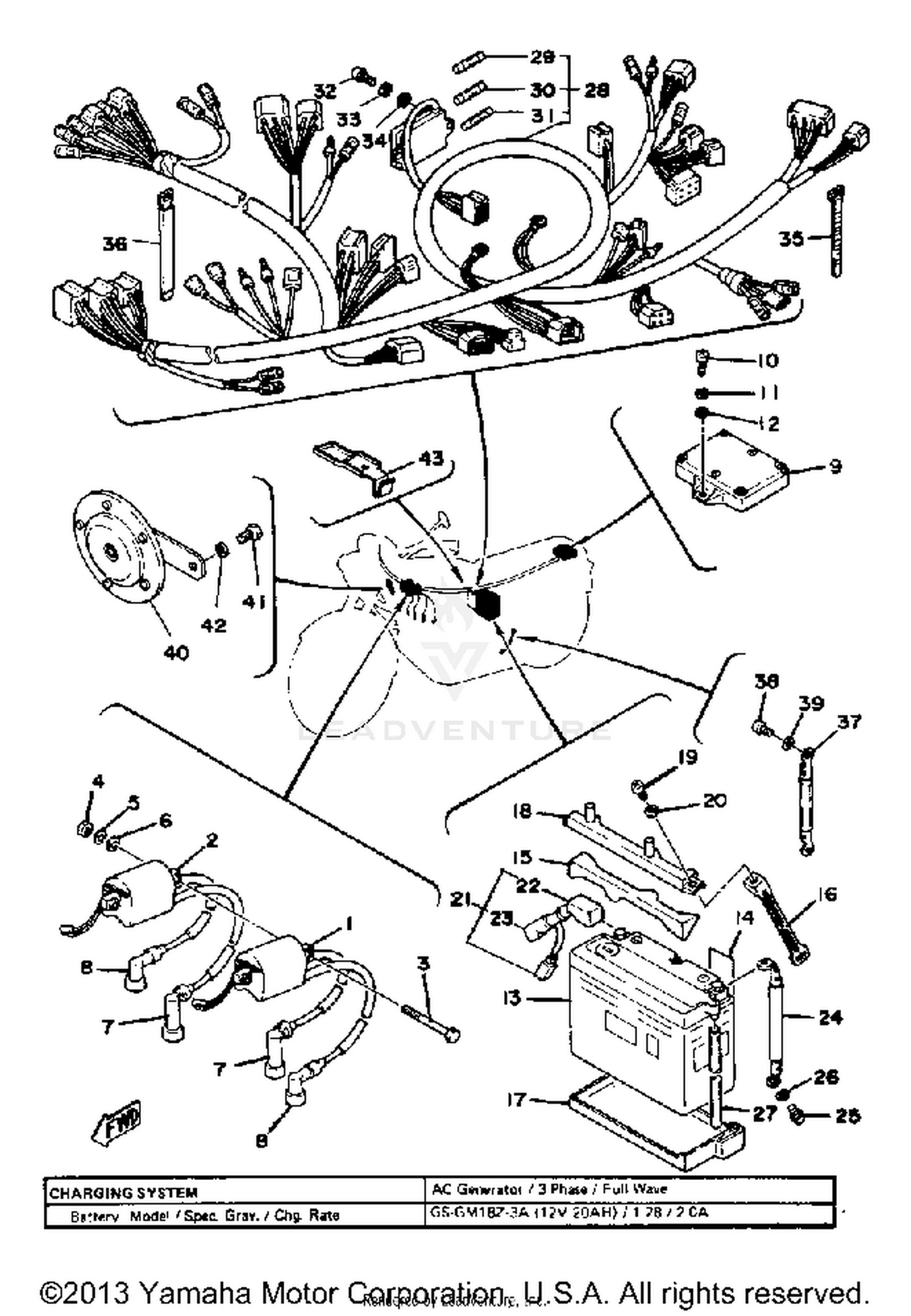

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
2H7-82310-60-00
|
$129.99 | ||
|
Unavailable |
|||
|
#2
IGNITION COIL ASSEMBLY
2H7-82320-60-00
|
$129.99 | ||
|
Unavailable |
|||
|
#3
BOLT (36E)
97023-06085-00
|
$4.50 | ||
|
Unavailable |
|||
|
#4
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG CAP ASSEMBLY
1J7-82370-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG CAP ASSY
256-82370-00-00
Superseded by 4BP-82370-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#9
IGNITOR UNIT ASSEMBLY 1
2H7-82305-10-00
|
$605.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SY50N18LAT YUASA BA
BTG-GM18Z-3A-S0
Superseded by SY5-0N18L-A0-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#15
PAD, BATTERY
2H7-82121-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
BAND, BATTERY
2H7-82124-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#17
SEAT, BATTERY
2H7-82122-01-00
|
$27.99 | ||
|
Unavailable |
|||
|
#18
PLATE, BATT FITTING
2H7-82136-00-00
|
$7.46 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
WIRE, PLUS LEAD
2H7-82115-00-00
|
$19.98 | ||
|
Unavailable |
|||
|
#22
COVER, LEAD WIRE
1J7-82119-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#23
COVER, LEAD WIRE
2H7-82119-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#24
WIRE, MINUS LEAD
2H7-82116-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#27
PIPE
90445-08336-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WIRE HARNESS ASSEMBLY
2H7-82590-50-00
|
$233.99 | ||
|
Unavailable |
|||
|
#29
FUSE
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUSE (12V-30A)
2H7-82151-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WIRE, EARTH LEAD
2H7-82519-00-00
|
$11.18 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#40
HORN
1J7-83371-22-00
|
$67.99 | ||
|
Unavailable |
|||
|
#41
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90465-10133-00
|
$1.54 | ||
|
Unavailable |
|||
