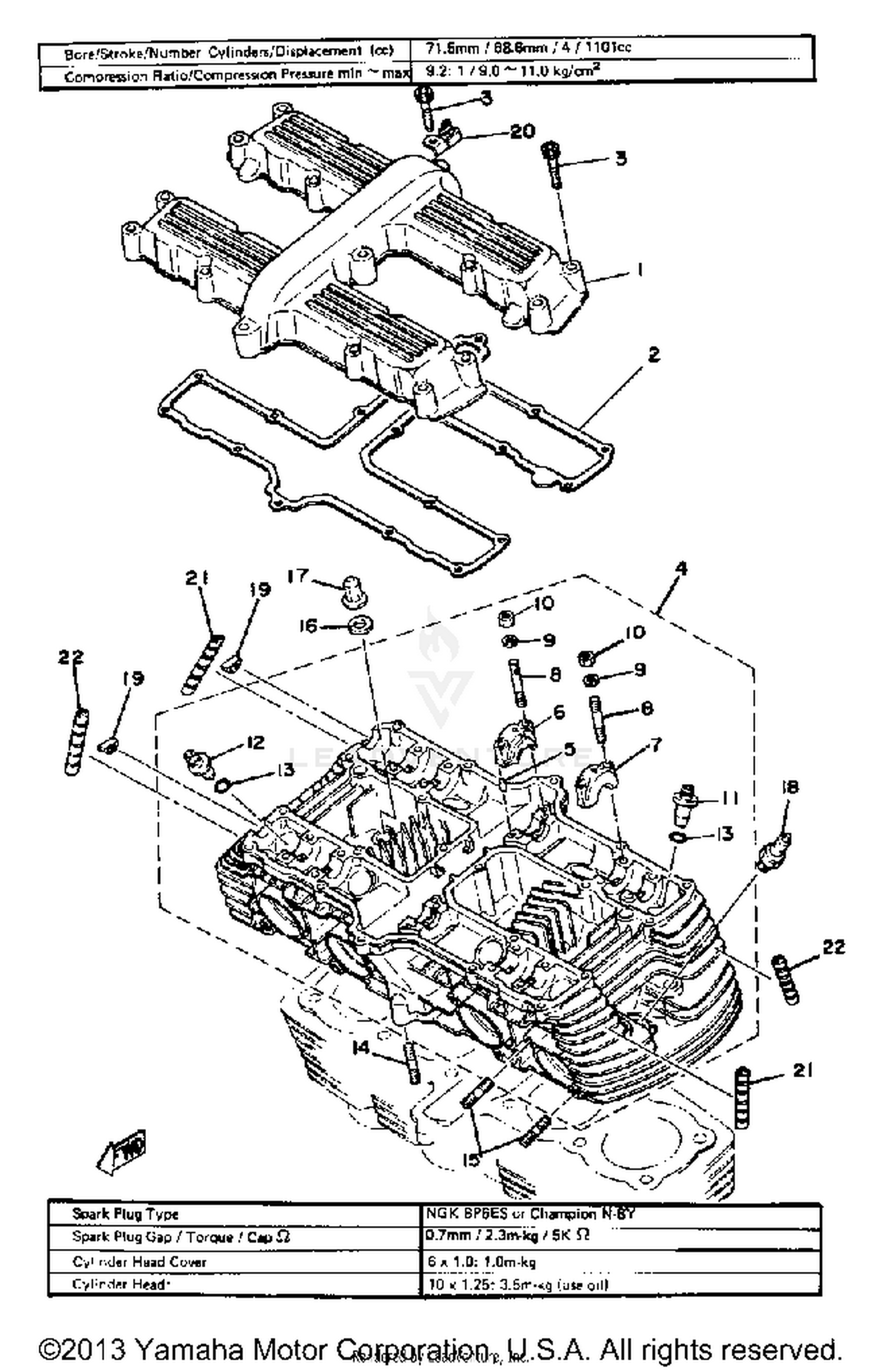

Cylinder Head - Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER.HEAD 1
2H7-11191-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#2
GASKET,HD.COVER1
2H7-11193-00-00
Superseded by 2H7-11193-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER HEAD ASSEMBLY
2H7-11110-00-00
|
$607.99 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
93603-09004-00
|
$2.15 | ||
|
Unavailable |
|||
|
#6
CAP, CAMSHAFT 1
1J7-12173-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#7
CAP, CAMSHAFT 2
1J7-12183-10-00
|
$24.99 | ||
|
Unavailable |
|||
|
#8
BOLT, STUD
90116-06228-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
GDE, INTK VLV 1 O/S
1J7-11133-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#12
GDE, EXST VLV 1 O/S
1J7-11134-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#13
O-RING
93210-11313-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD
90116-08161-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
95621-08615-00
Superseded by 95617-08615-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, STUD
95611-08625-00
Superseded by 95617-08625-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BPR6ES NGK SPLUG 4
NGK-BP6ES-00-00
Superseded by BPR-6ES00-00-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG
1J7-11138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90465-10129-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
ABSORBER 1
2H7-11161-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#22
ABSORBER 2
2H7-11162-00-00
|
$4.15 | ||
|
Unavailable |
|||
