1979 Yamaha XS1100 Pickup Coil - Governor OEM Parts

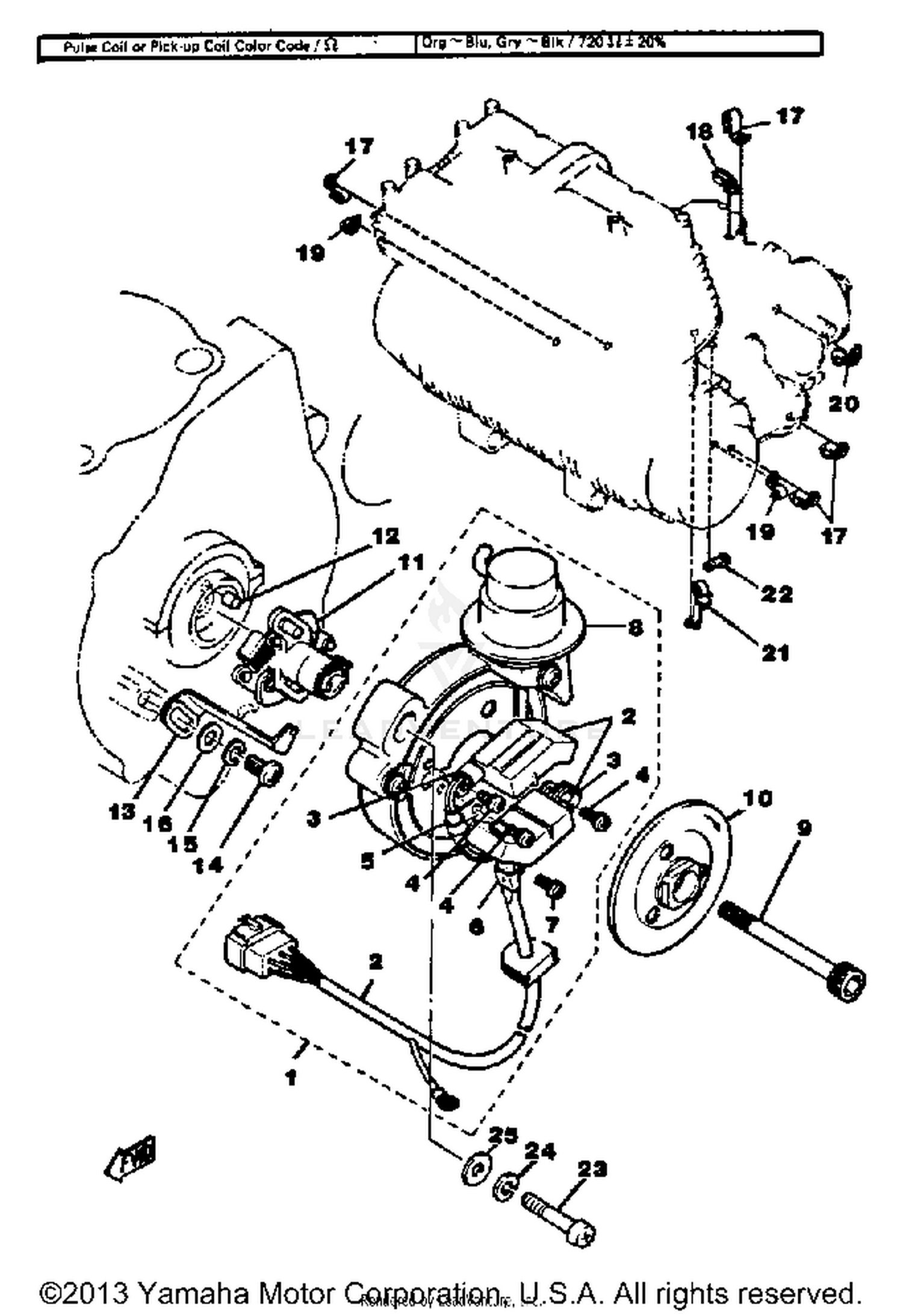

Pickup Coil - Governor Diagram

Item	MSRP	Qty
#1 BASE, PICKUP 2H7-81671-10-00	$470.99
Unavailable
#2 PULSER COIL ASSEMBLY 2H7-81676-10-00	$156.99
Unavailable
#3 CLAMP 2 2H7-81678-10-00	$6.04
Unavailable
#4 SCREW, PAN HEAD 98580-04008-00	$5.49
Available to order. Add to View Price
#5 CLAMP 3 2H7-81679-10-00	$4.84
Unavailable
#6 CLAMP 1 2H7-81677-10-00	$2.97
Unavailable
#7 SCREW 2 2H7-81646-10-00	$2.37
Unavailable
#8 DIAPHRAGM ASSEMBLY 3H5-81683-09-00	$57.18
Unavailable
#9 BOLT, HEXAGON SOCKET 91316-08075-00 Superseded by 90110-08235-00	$3.20
Unavailable
#10 PLATE, TIMING 2 2H7-81672-10-00	$31.56
Unavailable
#11 GOVERNOR ASSEMBLY 2H7-81653-11-00	$308.99
Unavailable
#12 PIN, DOWEL 93604-08071-00	$7.49
Available to order. Add to View Price
#13 PLATE, TIMING 2H7-81632-01-00	$9.50
Unavailable
#14 SCREW, PAN HEAD 98580-06012-00 Superseded by 97885-06012-00	$3.10
Available to order. Add to View Price
#15 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#16 WASHER, PLATE 90201-061A5-00	$6.49
Available to order. Add to View Price
#17 CLAMP 90465-06332-00 Superseded by 90465-06376-00	$8.49
Available to order. Add to View Price
#18 CLAMP 90465-10123-00	$1.98
Unavailable
#19 CLAMP 90465-08277-00	$10.49
Available to order. Add to View Price
#20 CLAMP 90465-10137-00	$1.80
Unavailable
#21 CLAMP 90465-08135-00	$6.99
Unavailable
#22 CLAMP 90465-08136-00	$1.49
Unavailable
#23 SCREW, PAN HEAD 98580-06030-00 Superseded by 97885-06030-00	$4.70
Available to order. Add to View Price
#24 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#25 WASHER, PLATE 90201-06M08-00	$2.30
Available to order. Add to View Price
