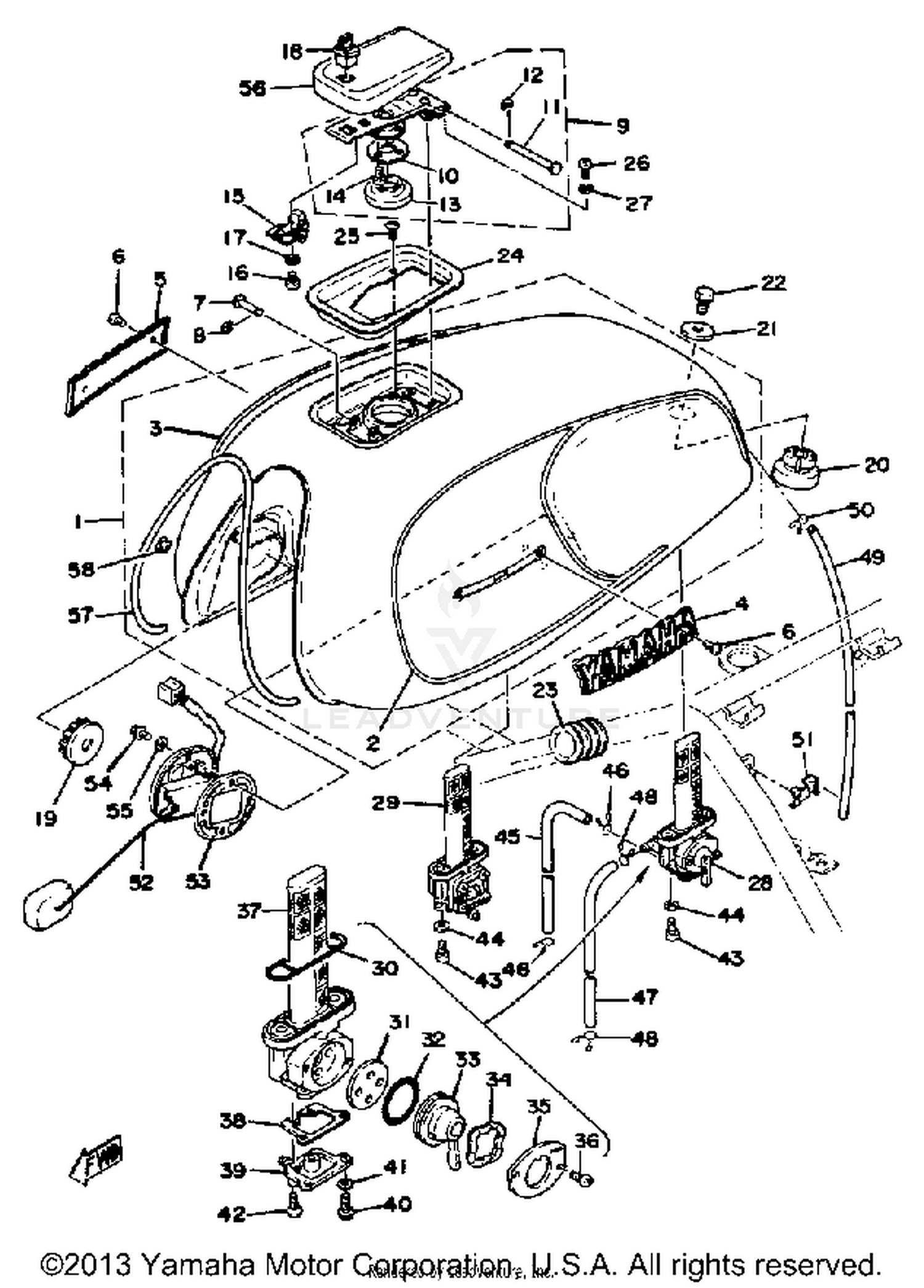

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2H7-24110-00-02
|
$351.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
2H7-24110-00-03
|
$351.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
2H7-24244-10-00
|
$16.10 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
2H7-24245-10-00
|
$15.26 | ||
|
Unavailable |
|||
|
#4
EMBLEM 1
2H7-24161-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM 2
2H7-24162-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
SCREW, COUNTERSUNK
90152-04006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SPEC''L SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK-CAP BODY ASSEMBLY
2H7-W2461-02-00
|
$35.99 | ||
|
Unavailable |
|||
|
#10
GASKET, CAP 1
2H7-24641-01-00
|
$2.20 | ||
|
Unavailable |
|||
|
#11
PIN 1
2H7-24623-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
GASKET, CAP
437-24612-00-00
|
$9.14 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING
97701-30506-00
|
$0.80 | ||
|
Unavailable |
|||
|
#15
HOOK/SLIDE CAM ASSEMBLY
2H7-W2462-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#16
SCREW, BINDING
98901-03008-00
Superseded by 98907-03008-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP ASSEMBLY
2H7-24602-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#19
DAMPER, LOCATING 1
1J7-24181-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#20
DAMPER, LOCATING 2
2H7-24182-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-08310-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, LOCATING 3
1J7-24183-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, FILLER
2H7-2414A-00-00
|
$18.00 | ||
|
Unavailable |
|||
|
#25
SCREW, BIND
98901-05008-00
Superseded by 98907-05008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUEL COCK ASSEMBLY 1
3G1-24500-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#29
FUEL COCK ASSEMBLY 2
2H7-24510-00-00
Superseded by 2G2-24510-05-00
|
$199.99 | ||
|
Unavailable |
|||
|
#30
GASKET
1J7-24512-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
VALVE
1J7-24523-00-00
Superseded by 16G-24523-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL, COCK
1J7-24534-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LEVER, COCK
2H7-24524-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#
LEVER, COCK
2H7-24524-10-00
|
$10.40 | ||
|
Unavailable |
|||
|
#34
WASHER, WAVE
1J7-24518-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#35
PLATE, LVR FITTING
2H7-24525-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#
PLATE, LVR FITTING
2H7-24525-10-00
|
$1.78 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#37
NET, FILTER 1
1J7-24514-02-00
|
$54.99 | ||
|
Unavailable |
|||
|
#38
GASKET
1J7-24522-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CUP, FILTER
2H7-24521-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#40
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, FLAT HEAD
98606-04016-00
Superseded by 98707-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE
90445-10141-00
Superseded by 90445-10144-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE (L200)
90445-07176-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-07029-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#51
CLAMP
90462-10040-00
|
$0.89 | ||
|
Unavailable |
|||
|
#52
SNDR UT ASSEMBLY, F/MTR
2H7-85752-00-00
|
$62.06 | ||
|
Unavailable |
|||
|
#53
GASKET, SENDER UNIT
2H7-85753-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, FLANGE
95821-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Unavailable |
|||
|
#56
BODY, CAP
2H7-24611-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#57
PLATE, MOLD
2H7-24189-00-00
Superseded by 3EB-24189-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLIP
90468-03063-00
|
$3.70 | ||
|
Unavailable |
|||
