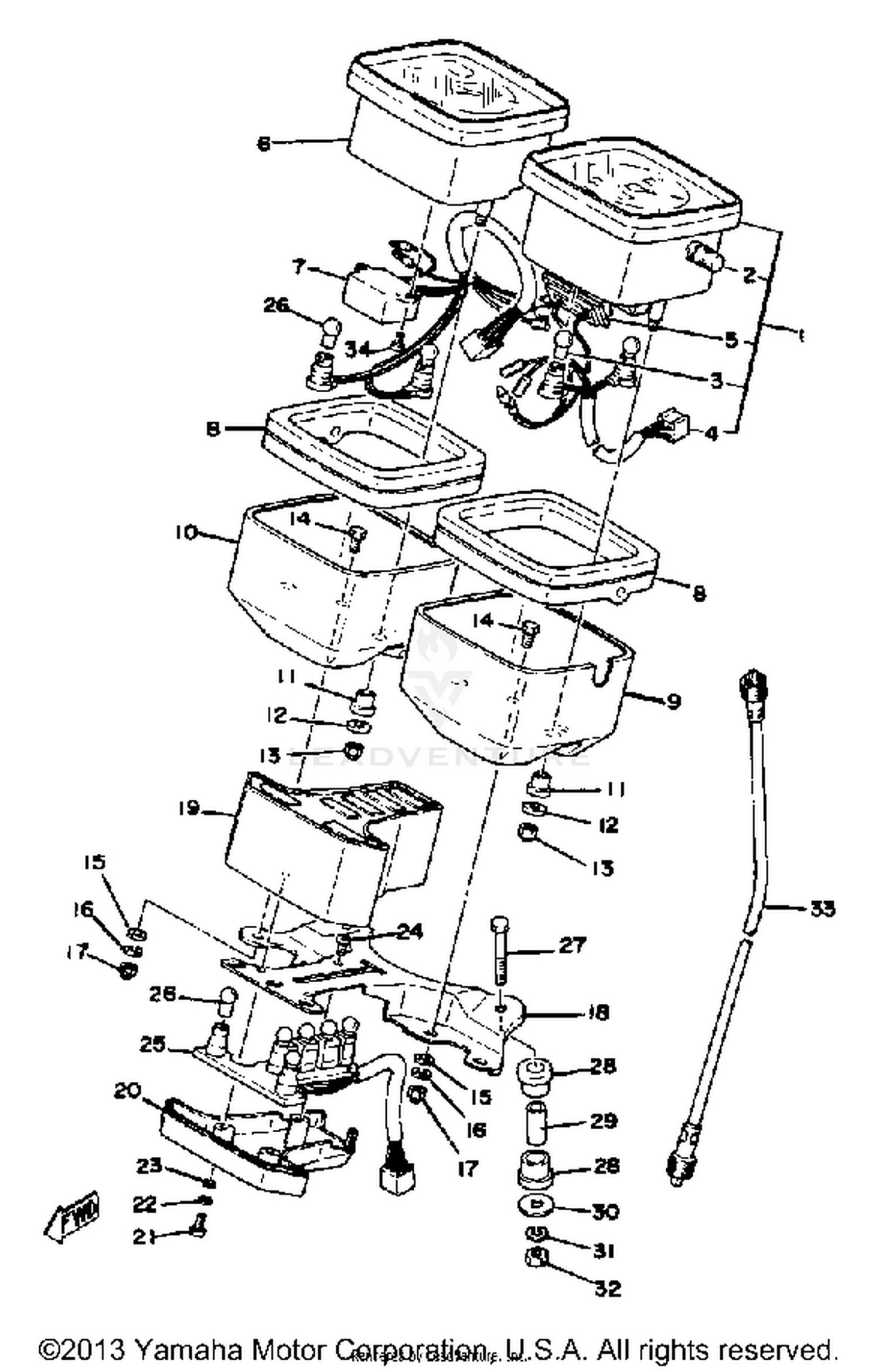

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
2H7-83570-A0-00
|
$269.99 | ||
|
Unavailable |
|||
|
#2
KNOB, TRIP METER
1E6-83578-60-00
|
$5.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET, METER
2H7-83536-00-00
|
$12.92 | ||
|
Unavailable |
|||
|
#5
SENDER
2H7-83556-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#6
TACHOMETER ASSEMBLY
2H7-83540-01-00
|
$258.99 | ||
|
Unavailable |
|||
|
#7
REGULATOR, FL METER
2H7-85755-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#8
DAMPER
2H7-83513-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#9
COVER, SPEEDOMETER
2H7-83507-00-00
|
$31.04 | ||
|
Unavailable |
|||
|
#10
COVER, TACHOMETER
2H7-83508-00-00
|
$31.04 | ||
|
Unavailable |
|||
|
#11
DAMPER
584-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#14
BOLT
584-83546-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, METER
2H7-83519-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#19
PILOT BOX, UPPER
2H9-83568-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#20
PILOT BOX, LOWER
2H7-83569-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SOCKET CORD ASSEMBLY
2H7-83509-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#26
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#27
BOLT
97006-06040-00
Superseded by 97017-06040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
584-83541-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06249-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
