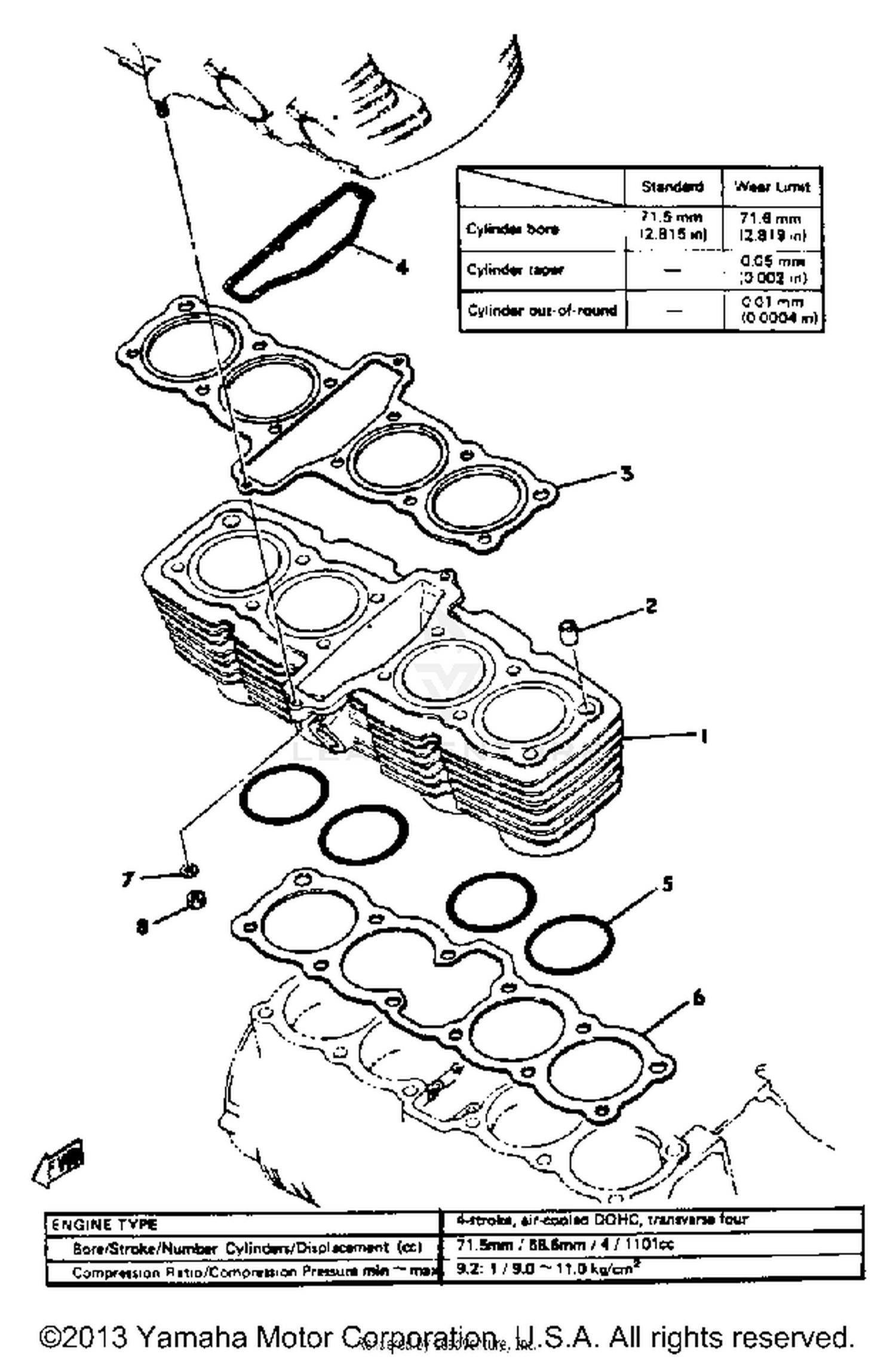

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
2H7-11310-00-00
|
$331.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD 1
2H7-11181-02-00
|
$96.99 | ||
|
Unavailable |
|||
|
#4
SEAL, CYLINDER 1
2H7-11355-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CYLINDER
2H7-11351-01-00
Superseded by 2H7-11351-11-00
|
$25.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
