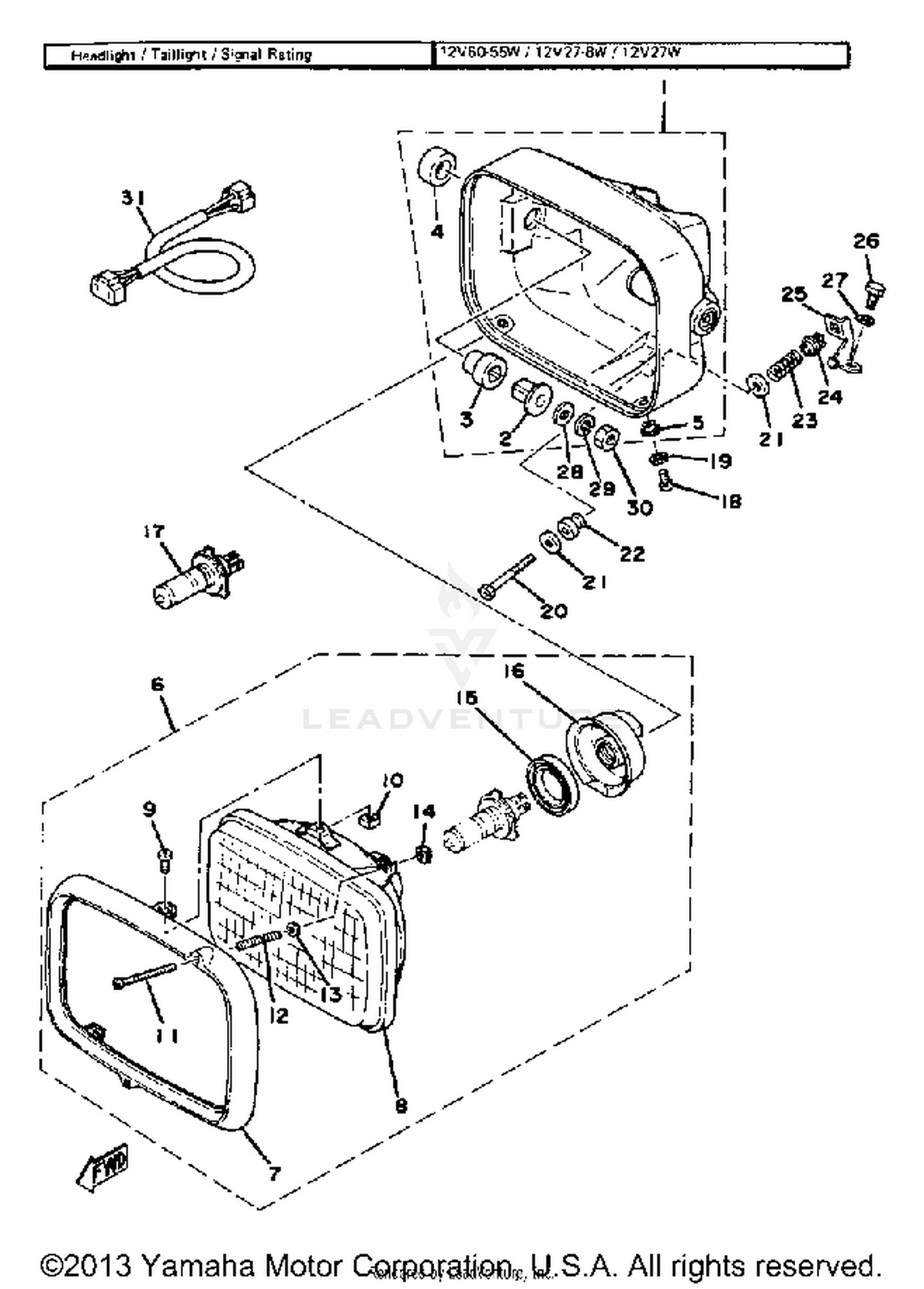

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
2H7-84330-00-98
|
$134.99 | ||
|
Unavailable |
|||
|
#2
COLLAR, BODY FTNG
2H7-84338-00-00
|
$2.75 | ||
|
Unavailable |
|||
|
#3
DAMPER, HEADLIGHT 1
2H7-84366-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, HEADLIGHT 2
2H7-84367-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#5
WASHER, SPECIAL
1L9-84327-60-00
|
$3.35 | ||
|
Unavailable |
|||
|
#7
RIM, HEADLIGHT
2H7-84315-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#8
LENS ASSEMBLY
2H7-84320-A0-00
|
$30.53 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
2H9-84326-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#11
SCREW,RIM ADJUSTER
1NN-84131-10-00
Superseded by 4KG-84331-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, SCREW
21V-84335-00-00
Superseded by 3AA-84332-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, ADJUSTING
1L9-84334-60-00
Superseded by 5PX-84334-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB, HOLDER
2H9-84371-00-00
|
$10.76 | ||
|
Unavailable |
|||
|
#16
COVER, SOCKET
2H9-84397-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#17
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL
2H7-84337-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#21
WASHER, SPECIAL
2H7-84327-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#22
GROMMET
2H7-84354-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#23
SPRING, SCREW
2H7-84335-00-00
Superseded by 1U4-84332-40-00
|
$4.35 | ||
|
Unavailable |
|||
|
#24
NUT, ADJUSTING
2H7-84334-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#25
STAY, HEADLIGHT 1
2H7-84318-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
CORD, HEADLIGHT
2H7-84359-00-00
|
$10.41 | ||
|
Unavailable |
|||
