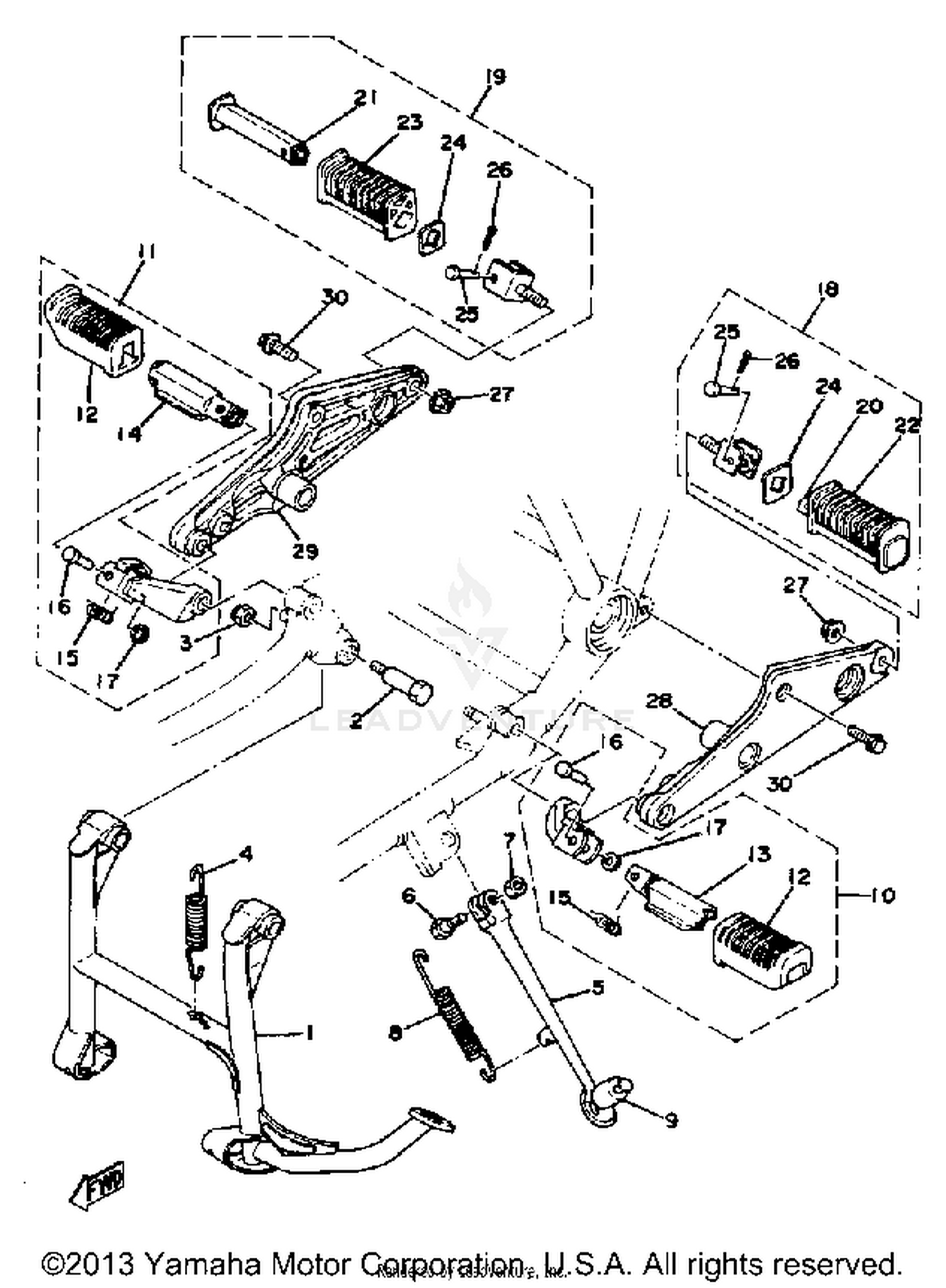

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
2H7-27111-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-10440-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-45199-00
|
$11.49 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
2H7-27311-00-00
|
$55.97 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-28146-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER
2H7-27314-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
FRT FOOTREST ASSEMBLY L (L.H.)
2H7-27410-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
FRT FOOTREST ASSEMBLY R (R.H.)
2H7-27420-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#12
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST
3CK-27451-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#14
FOOTREST
3N6-27461-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
90243-08006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RR FOOTREST ASSEMBLY 1
2H7-27430-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#19
RR FOOTREST ASSEMBLY 2
2H7-27440-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#20
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, RR FOOTREST
1J7-27433-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, RR FOOTREST
1J7-27444-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#24
WASHER, SPECL SHAP
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, CLEVIS
91701-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 2
2H9-27442-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#29
BRACKET 3
2H9-27443-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#30
BOLT, WASHER BASED
90105-10108-00
Superseded by 90105-10186-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
