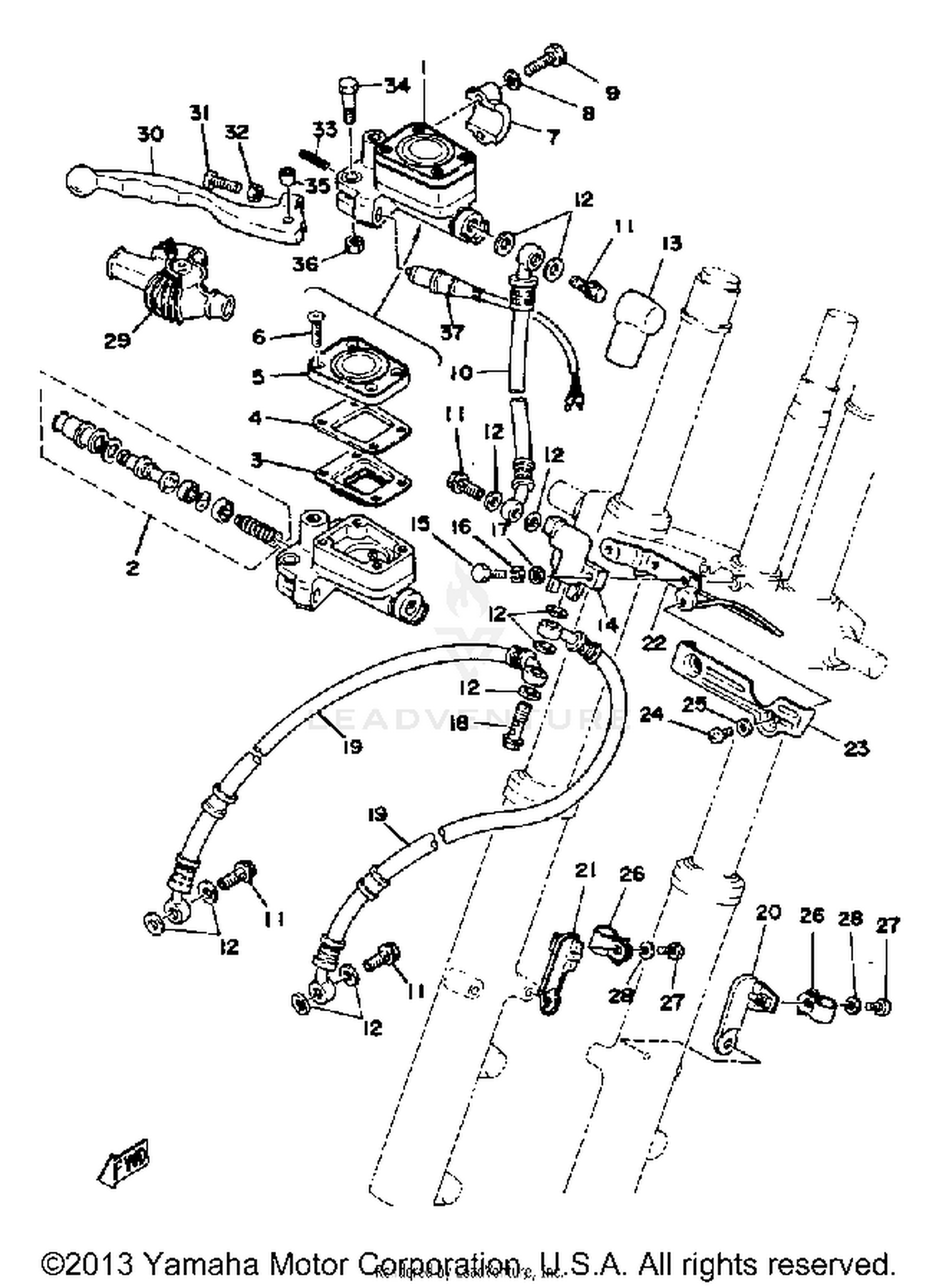

Front Master Cylinder - Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
1J3-25850-23-00
|
$203.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
1J3-W0041-20-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM RESERVOR
1J3-25854-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#5
CAP, RESERVOIR
1J3-25852-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#6
SCREW, FLAT HEAD
90151-05008-00
Superseded by 98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER (341-2
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97313-06025-00
Superseded by 90101-06M27-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
2H7-25872-00-00
|
$34.34 | ||
|
Unavailable |
|||
|
#11
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT, MASTER CYLINDER
306-25862-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, BRAKE 2
2H7-25873-00-00
|
$47.66 | ||
|
Unavailable |
|||
|
#20
HOLDER, BRKE HOSE 1
2H7-25875-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#21
HOLDER, BRKE HOSE 2
2H7-25876-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#22
GUIDE, CABLE
2H7-26399-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#23
HOLDER, CABLE
2H7-23317-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#24
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90461-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
COVER, HANDLE LEVER 1
1T5-26372-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER R
2H7-83922-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW,OVAL FLSTR
90146-06131-00
|
|||
|
Unavailable |
|||
|
#32
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, COMPRESSION
90501-10510-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUSH, SPEC''L NYLON
90386-08094-00
|
$4.60 | ||
|
Unavailable |
|||
|
#36
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
