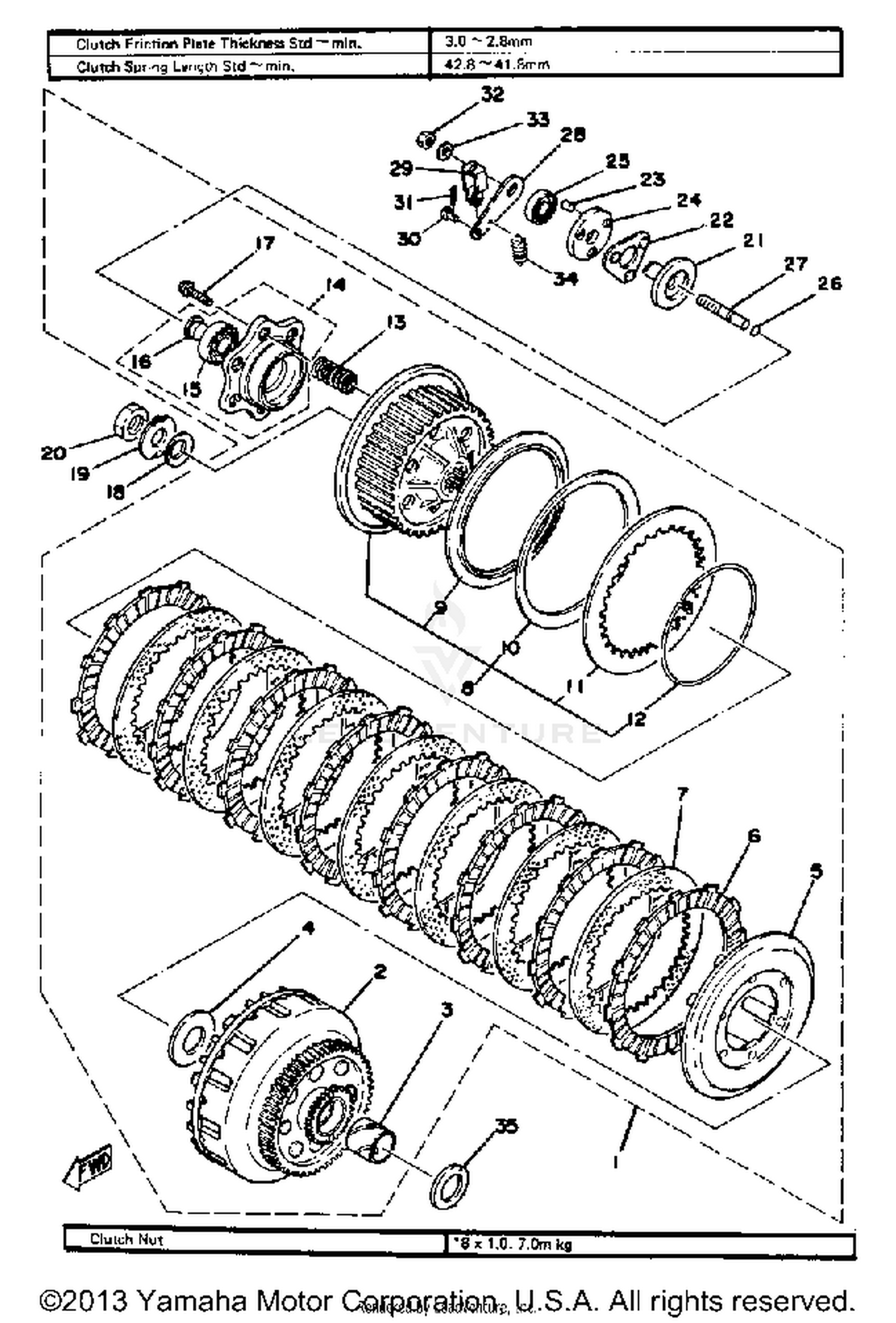

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
2H7-16301-01-00
|
$205.99 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
2H7-16150-01-10
|
$116.99 | ||
|
Unavailable |
|||
|
#
PRI DRVN GEAR
2H7-16150-01-20
|
$116.99 | ||
|
Unavailable |
|||
|
#3
SPACER 1
2H7-16181-00-10
|
$18.49 | ||
|
Unavailable |
|||
|
#
SPACER 1
2H7-16181-00-20
|
$18.99 | ||
|
Unavailable |
|||
|
#4
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, PRESSURE 2
2H7-16352-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#6
PLATE, FRICTION
341-16321-13-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
CLUTCH BOSS ASSEMBLY
2H7-16370-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#9
PLATE, SEAT
2H7-16384-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH BOSS
2H7-16383-00-00
|
$24.39 | ||
|
Unavailable |
|||
|
#11
PLATE, CLUTCH 1
2H7-16324-00-00
Superseded by 2H7-16324-10-00
|
$19.99 | ||
|
Unavailable |
|||
|
#12
RING, CLUTCH BOSS
2H7-16385-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-23142-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PRESS PLATE CMPL 1
2H7-W1635-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#15
BEARING
93306-00315-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIECE, CLUTCH PUSH
2H7-16386-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CONICAL SPRING
90208-18025-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
WASHER, LOCK
90215-19139-00
|
$3.60 | ||
|
Unavailable |
|||
|
#20
NUT
90170-18221-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PUSH
2H7-16341-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, BALL
2H7-16395-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
93606-07082-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOUSING, PUSH SCREW
2H7-16396-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-48364-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, ADJUSTING
2H7-16343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PUSH LEVER ASSEMBLY
2H7-16342-00-00
Superseded by 4X7-16340-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#32
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, TENSION
90506-10069-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, THRUST 1
360-16154-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
