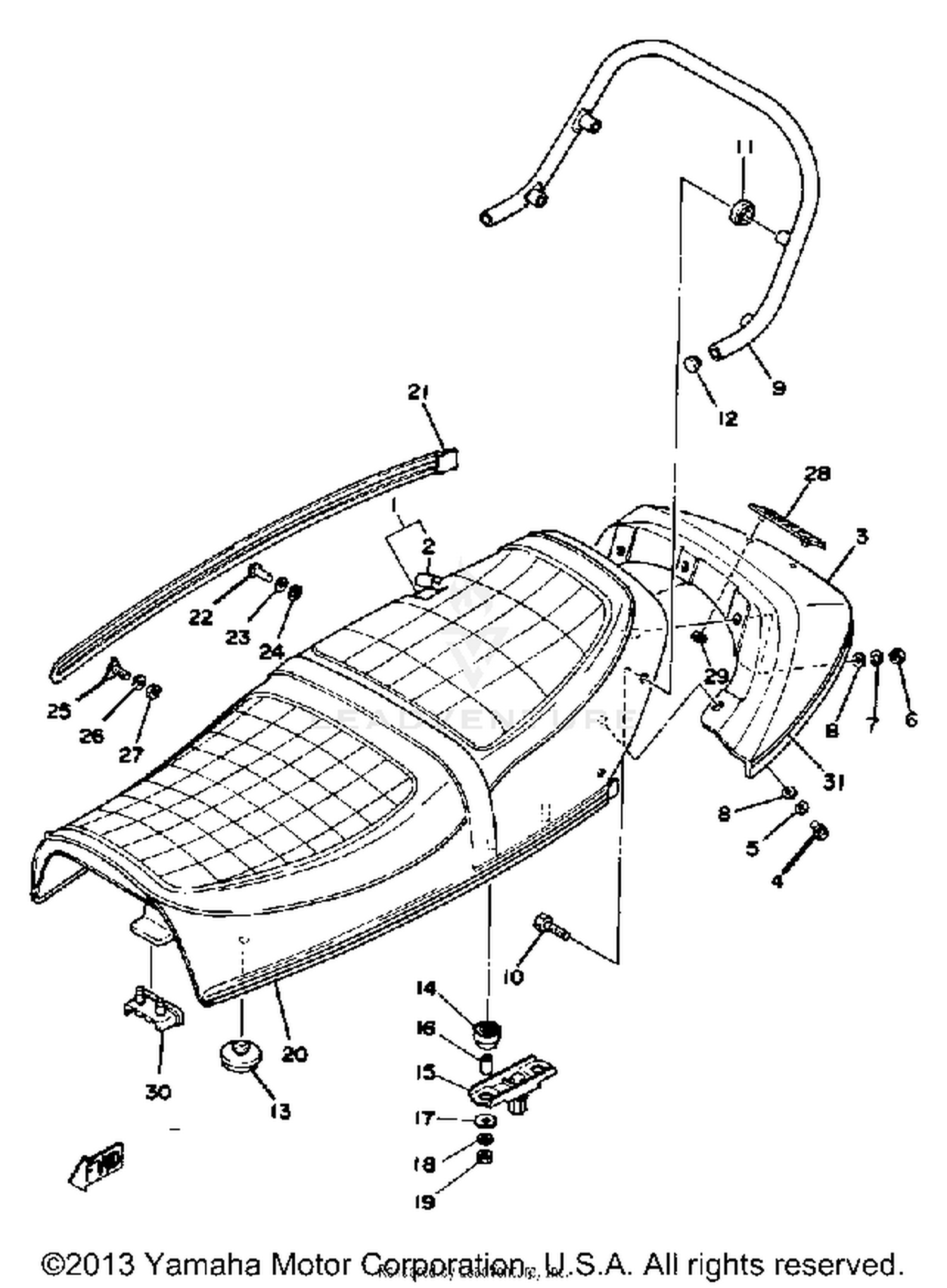

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY (2H7-24730
2H7-W2472-00-00
|
$421.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
2H7-24731-10-00
|
$32.12 | ||
|
Unavailable |
|||
|
#3
COVER, TAIL
2H7-24756-00-4E
|
$62.99 | ||
|
Unavailable |
|||
|
#
COVER, TAIL
2H7-24756-00-7E
|
$53.99 | ||
|
Unavailable |
|||
|
#4
BOLT, HEXAGON
97313-05016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#8
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE, SEAT
2H7-24773-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#10
BOLT
90101-08305-00
|
$1.70 | ||
|
Unavailable |
|||
|
#11
COVER
1T4-24796-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
1J3-24742-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, SEAT
2H7-24723-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#15
BRACKET, SEAT
2H7-24738-00-00
|
$18.44 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
MOLD, SEAT
2H7-24785-00-4E
|
$26.99 | ||
|
Unavailable |
|||
|
#
MOLD, SEAT
2H7-24785-00-7E
|
$31.99 | ||
|
Unavailable |
|||
|
#21
MOLD, SEAT
2H7-24785-10-4E
|
$24.99 | ||
|
Unavailable |
|||
|
#
MOLD, SEAT
2H7-24785-10-7E
|
$24.99 | ||
|
Unavailable |
|||
|
#22
RIVET
1J7-24789-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#23
WASHER, SPECIAL
1J7-24722-00-00
|
$2.95 | ||
|
Unavailable |
|||
|
#24
SPEED NUT
1J7-24735-00-00
|
$2.45 | ||
|
Unavailable |
|||
|
#25
BOLT, LEVER FITTING
1J7-24777-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95301-04600-00
Superseded by 95307-04600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
EMBLEM
25G-24786-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
NUT, SPRING
90183-04012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, SEAT
2H7-24724-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#31
GRAPHIC, TAIL COVER
2H7-24757-10-00
|
$7.68 | ||
|
Unavailable |
|||
