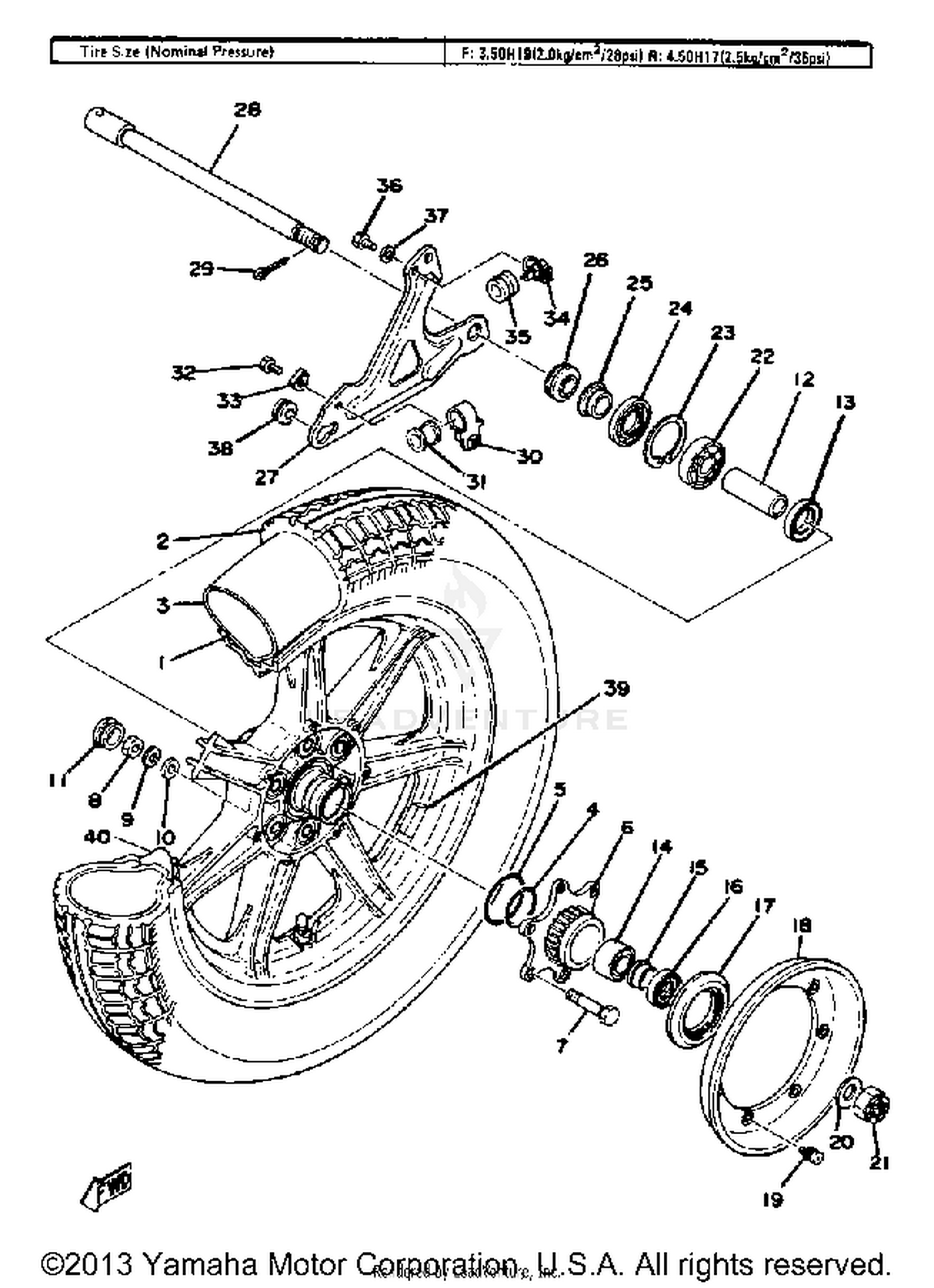

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
2H8-W2533-00-00
|
$414.99 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM
93900-00001-00
Superseded by 93900-00031-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
450X17 BS 21R2
94145-17384-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
450H17 S704TL
94145-17395-00
|
$51.21 | ||
|
Unavailable |
|||
|
#3
TUBE
94214-17278-00
|
$20.99 | ||
|
Unavailable |
|||
|
#4
O-RING
93210-40745-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-58677-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH, HUB
2H7-25366-00-00
|
$90.94 | ||
|
Unavailable |
|||
|
#7
BOLT
90109-10491-00
|
$4.20 | ||
|
Unavailable |
|||
|
#8
NUT
95380-10600-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10124-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, SPEC''L SHAPE
90338-24083-00
|
$1.49 | ||
|
Unavailable |
|||
|
#12
SPACER, BEARING
2H7-25317-00-00
|
$16.48 | ||
|
Unavailable |
|||
|
#13
FLANGE, SPACER
2H7-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, CYLINDER.#13
93313-62010-00
|
$45.99 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-20741-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
OIL SEAL
93102-25360-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, HUB DUST
1J7-25319-01-00
Superseded by 1J7-25319-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, PLATE
2H7-25327-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#19
SCREW, WITH WASHER
90159-05018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-18620-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
99009-52500-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL, SO-TYPE
93104-27026-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR, WHEEL
1J7-25377-00-00
|
$10.76 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-20637-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
BAR, TENSION
2H7-25371-00-00
|
$38.38 | ||
|
Unavailable |
|||
|
#28
AXLE, WHEEL
2H7-25381-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#29
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, BRAKE HOSE
2H7-25886-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#31
PROTC, BRAKE HOSE
306-25881-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#32
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, LOCK
90215-06128-00
|
$1.60 | ||
|
Unavailable |
|||
|
#34
HOLDER, BRAKE HOSE
2H7-25887-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#35
PROTECTOR, BRAKE HOSE
341-25881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER, TORQ.STOP (92901-08100)
1J7-25374-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#40
SPACER, BEAD
2X5-25394-00-00
|
$41.99 | ||
|
Unavailable |
|||
