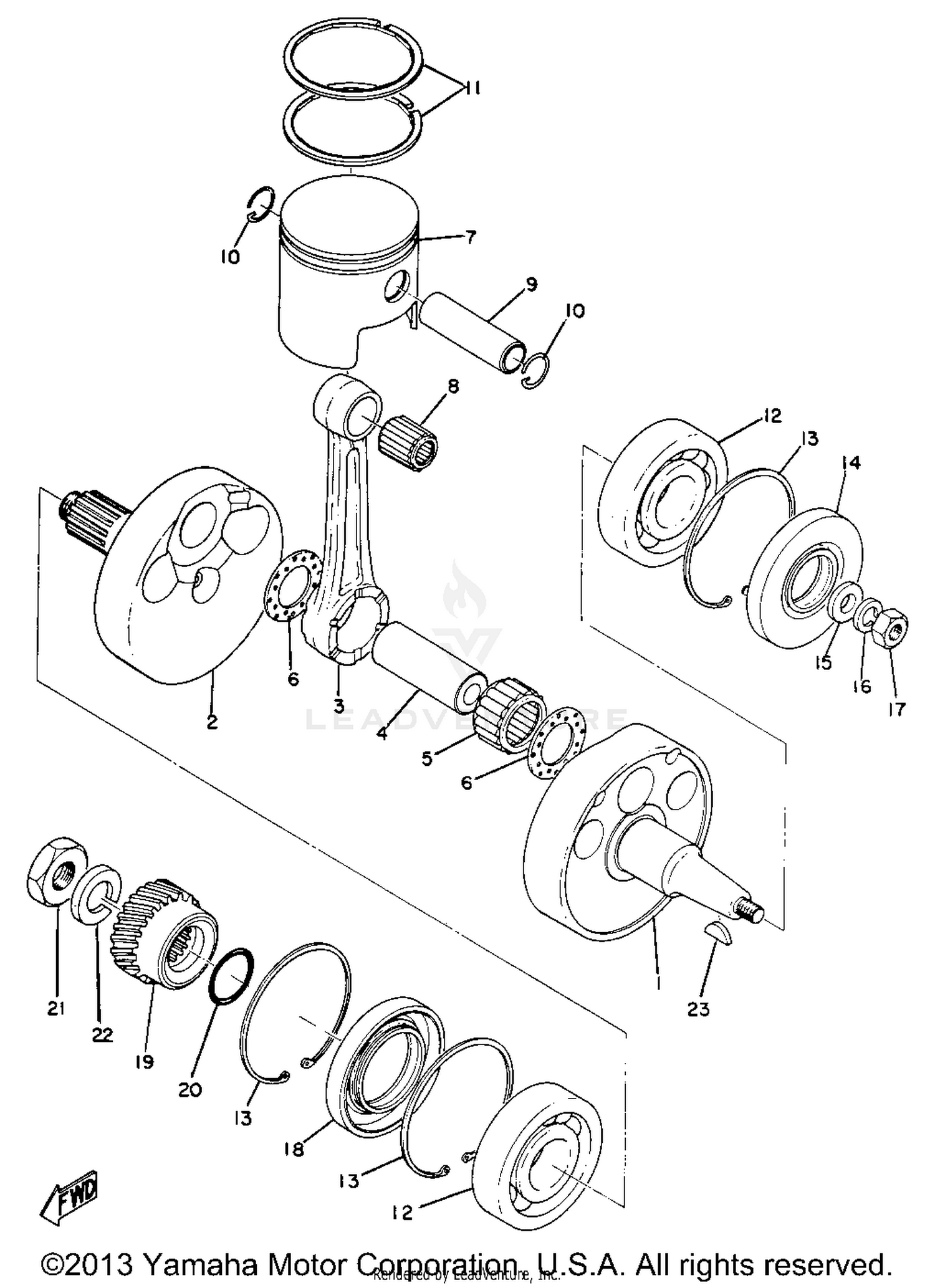

1971 Yamaha DT1MX CRANK & PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
214-11400-01-00
|
$138.99 | ||
|
Unavailable |
|||
|
#
CRANK 1
214-11412-01-00
|
$145.99 | ||
|
Unavailable |
|||
|
#2
CRANK 2
214-11422-00-00
|
$91.93 | ||
|
Unavailable |
|||
|
#3
ROD, CONNECTING
431-11651-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1 (DIA. 24MM)
214-11681-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#5
BEARING
93310-524K4-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL SHAPE
90209-24073-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON STD
214-11631-01-96
|
$54.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
214-11635-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
285-11638-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
214-11638-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
285-11637-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
214-11637-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
285-11636-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
214-11636-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
285-11635-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#
PISTON STD
285-11631-00-96
|
$60.99 | ||
|
Unavailable |
|||
|
#8
BEARING
93310-218A6-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PISTON
214-11633-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
93450-20026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING SET STD KS
214-11601-03-00
|
$52.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON STD
285-11611-00-00
|
$22.32 | ||
|
Unavailable |
|||
|
#
RING SET 1ST KS
214-11601-13-00
|
$44.26 | ||
|
Unavailable |
|||
|
#
RING, PISTON 1ST
285-11611-10-00
|
$10.98 | ||
|
Unavailable |
|||
|
#
RING SET 2ND KS
214-11601-23-00
|
$67.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 2ND
285-11611-20-00
|
$11.86 | ||
|
Unavailable |
|||
|
#
RING SET 3RD KS
214-11601-33-00
|
$44.26 | ||
|
Unavailable |
|||
|
#
RING, PISTON 3RD
285-11611-30-00
|
$25.04 | ||
|
Unavailable |
|||
|
#
RING SET 4TH KS
214-11601-43-00
|
$44.26 | ||
|
Unavailable |
|||
|
#
RING, PISTON 4TH
285-11611-40-00
|
$25.04 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-30630-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, R-TYPE
93420-72023-00
|
$2.39 | ||
|
Unavailable |
|||
|
#14
OIL SEAL, SW-TYPE (SW-30-72-10)
93103-30044-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-12535-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEXAGON
90170-12347-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, SW-TYPE (SW-42-72-10)
93103-42045-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
GEAR, PRI DRIVE
214-16111-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-25070-00
Superseded by 93210-24235-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
WASHER(N15)
92901-18100-00
Superseded by 92907-18100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
