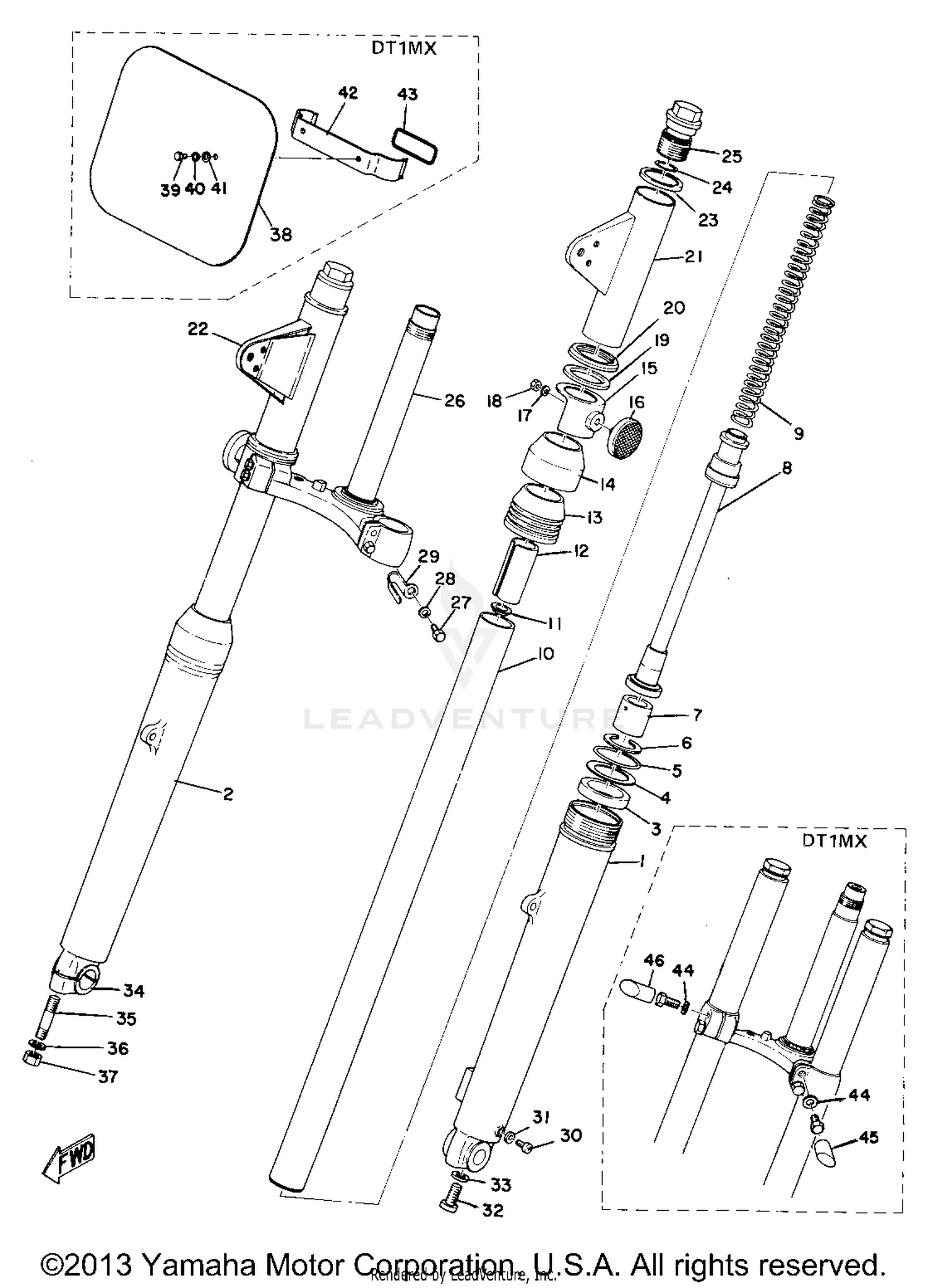

1971 Yamaha DT1MX FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, OUTER 1
291-23126-60-00
|
$197.99 | ||
|
Unavailable |
|||
|
#
FRONT FORK ASSEMBLY
291-23100-60-71
|
$295.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
291-23136-60-00
|
$155.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
278-23171-50-00
|
$9.28 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
291-23170-60-00
|
$59.88 | ||
|
Unavailable |
|||
|
#9
SPRING, FRONT FORK
214-23141-00-00
|
$37.32 | ||
|
Unavailable |
|||
|
#10
TUBE, INNER 1
291-23124-60-00
|
$157.99 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
SPACER
291-23118-60-00
|
$8.68 | ||
|
Unavailable |
|||
|
#13
SEAL, DUST
278-23144-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SEAL, DUST
292-23144-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#14
COVER, DUST SEAL
278-23148-50-00
|
$14.62 | ||
|
Unavailable |
|||
|
#15
COVER, OUTER 1
275-23122-60-00
|
$11.99 | ||
|
Unavailable |
|||
|
#16
REFLECTOR, FRONT 1
341-85111-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95380-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#20
GUIDE, COVER LOWER
447-23116-52-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
COVER, UPPER 1
291-23121-60-71
|
$22.99 | ||
|
Unavailable |
|||
|
#22
COVER, UPPER 2
291-23131-60-71
|
$22.99 | ||
|
Unavailable |
|||
|
#23
GUIDE, COVER UPPER
168-23115-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#24
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#25
BOLT, CAP
291-23111-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#26
UNDER BRACKET
291-23340-30-33
|
$134.99 | ||
|
Unavailable |
|||
|
#27
BOLT, W/WASHER
18G-23128-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, DRAIN PLUG
122-23129-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
509-23158-L0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#35
BOLT, STUD
90116-08261-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Unavailable |
|||
|
#37
NUT
95333-08600-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE, NUMBER
263-23485-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#39
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
STAY, PLATE
263-23487-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#43
O-RING
93210-67057-00
|
$1.49 | ||
|
Unavailable |
|||
|
#44
WASHER, PLAIN
92990-08200-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAY, PLATE FTNG 1
263-21581-00-00
|
$0.68 | ||
|
Unavailable |
|||
|
#46
STAY, PLATE FTNG 2
263-21591-00-00
|
$0.68 | ||
|
Unavailable |
|||
