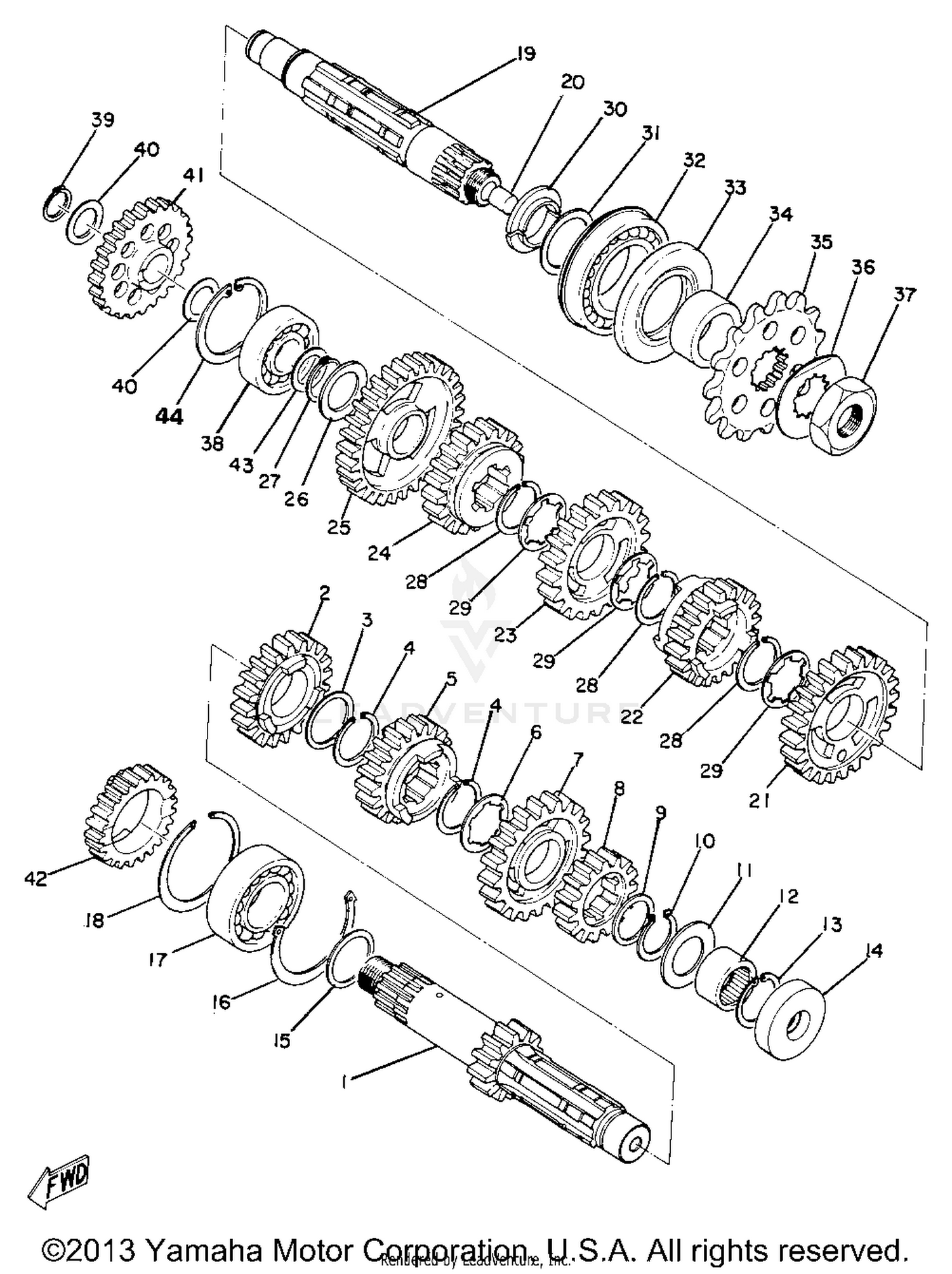

1971 Yamaha DT1MX TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
214-17411-11-00
|
$112.99 | ||
|
Unavailable |
|||
|
#
AXLE, MAIN
214-17411-61-00
|
$73.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
214-17141-11-00
|
$50.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPEC''L SHAP
90209-21080-00
|
$2.10 | ||
|
Unavailable |
|||
|
#7
GEAR, 3RD WHEEL
214-17231-10-00
|
$48.64 | ||
|
Unavailable |
|||
|
#
GEAR, 2ND PINION
214-17121-60-00
|
$62.60 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
214-17121-10-00
|
$44.88 | ||
|
Unavailable |
|||
|
#
GEAR, 2ND PINION
214-17121-60-00
|
$62.60 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-19400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM 1
137-17427-00-09
|
$3.95 | ||
|
Unavailable |
|||
|
#12
BEARING
93315-22004-00
|
$45.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, R-TYPE (R-26)
93420-26024-00
|
$3.16 | ||
|
Unavailable |
|||
|
#14
OIL SEAL, SDO-TYPE (SDO-6.8-26-
93109-07009-00
|
$4.60 | ||
|
Unavailable |
|||
|
#15
SHIM 1
156-17417-00-01
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1 (25.1-31-0.2)
156-17417-00-02
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1
156-17417-00-03
|
$6.49 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
214-17474-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#17
BEARING (B6205Z SPECIAL)
93306-20503-00
|
$46.99 | ||
|
Unavailable |
|||
|
#18
CIRCLIP, INNER
93450-52014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#19
AXLE, DRIVE
214-17421-00-00
|
$85.46 | ||
|
Unavailable |
|||
|
#20
PLUG, BLIND
214-17481-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#21
GEAR, 2ND WHEEL
214-17221-10-00
|
$64.22 | ||
|
Unavailable |
|||
|
#
GEAR, 2ND WHEEL
214-17221-60-00
|
$56.08 | ||
|
Unavailable |
|||
|
#22
GEAR, 3RD PINION
275-17131-12-00
|
$62.99 | ||
|
Unavailable |
|||
|
#23
GEAR, 3RD WHEEL
214-17231-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#24
GEAR, 4TH WHEEL
214-17241-10-00
|
$32.87 | ||
|
Unavailable |
|||
|
#25
GEAR, 1ST WHEEL (38T)
214-17211-10-00
|
$80.56 | ||
|
Unavailable |
|||
|
#
GEAR, 1ST WHEEL
214-17211-60-00
|
$93.64 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-20278-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99009-19400-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
UNAVAILABLE IN PRICE BOOK (214-
90209-21080-00
|
$2.10 | ||
|
Unavailable |
|||
|
#30
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#31
SHIM 2 (25-34-0.5)
168-17428-01-05
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$4.99 | ||
|
Unavailable |
|||
|
#32
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (SD-35-62-6 HS)
93102-35109-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-25193-00
|
$5.49 | ||
|
Unavailable |
|||
|
#35
SPROCKET, DRIVE (13T)
9383E-13144-00
Superseded by 9383E-13216-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (14T)
9383E-14145-00
Superseded by 9383E-14215-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
9383E-15082-00
Superseded by 4DN-17460-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 16T (16T)
9383E-16106-00
|
$15.95 | ||
|
Unavailable |
|||
|
#36
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
90179-18020-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93306-20310-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93306-20306-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-42500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CIRCLIP, INNER
93450-40001-00
|
$1.98 | ||
|
Unavailable |
|||
|
#40
SHIM 1 (1.0T)
164-17417-00-10
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GEAR, KICK IDLE (23T)
275-15651-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#42
GEAR, KICK PINION
214-15631-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#43
SHIM, (1.0T)
52G-17968-00-10
|
$10.49 | ||
|
Unavailable |
|||
|
#
SHIM 1
150-17417-00-05
|
$0.55 | ||
|
Unavailable |
|||
|
#
SHIM 1
150-17417-00-03
|
$1.65 | ||
|
Unavailable |
|||
|
#
SHIM 2
214-17428-00-07
|
$3.85 | ||
|
Unavailable |
|||
|
#44
CIRCLIP
99009-15400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
