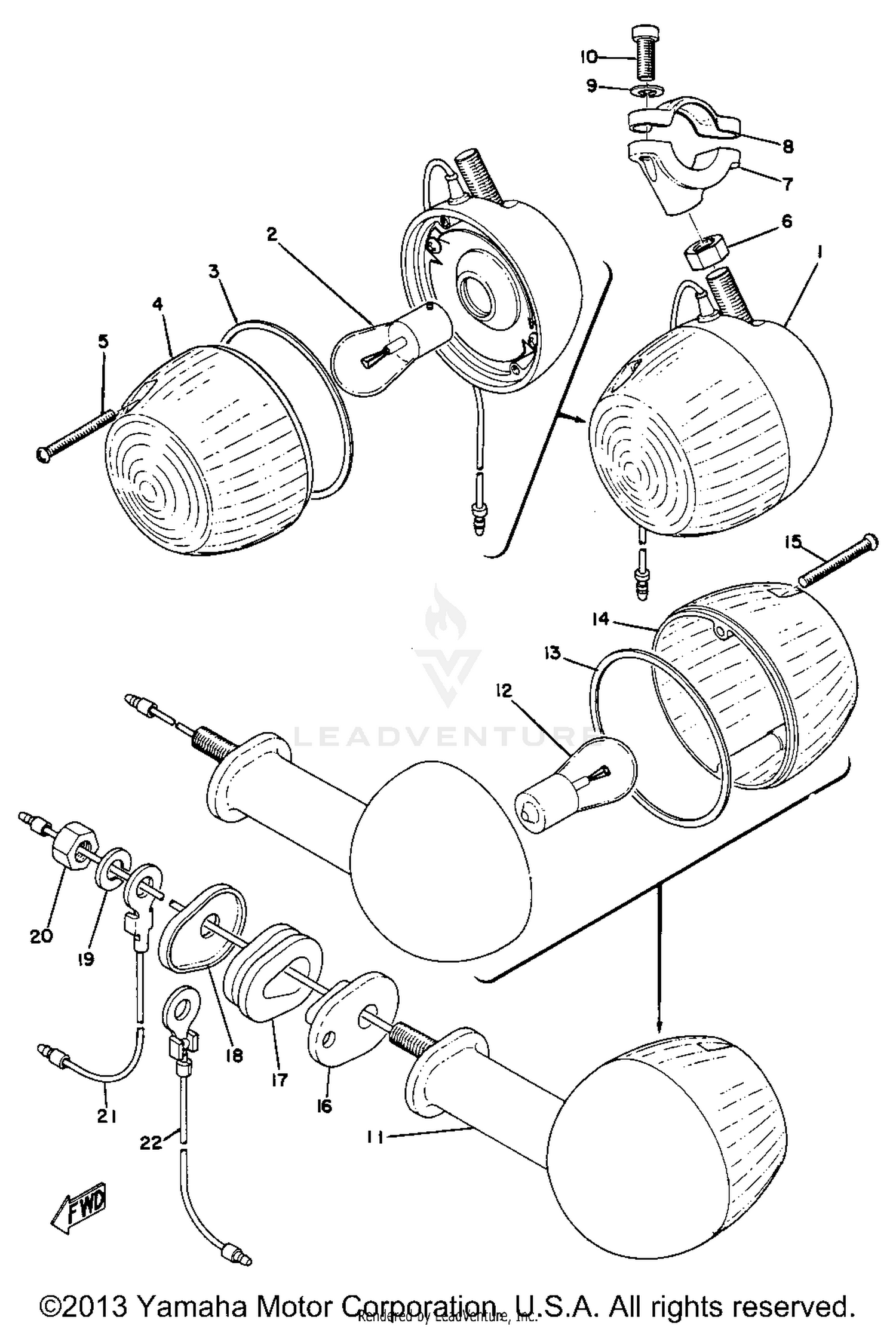

1971 Yamaha DT1MX FLASHER LAMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLY (275-83
275-83310-60-93
|
$34.99 | ||
|
Unavailable |
|||
|
#2
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, FLSHR LENS
183-83313-70-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, FLASHER
183-83312-70-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, LENS FITTING
183-83333-71-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95333-08600-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FLASHER 1
275-83318-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#8
STAY, FLASHER 2
275-83328-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
R FLSHR LITE ASSEMBLY
275-83330-65-93
|
$37.99 | ||
|
Unavailable |
|||
|
#
R FLSHR LITE ASSEMBLY
275-83340-65-93
|
$55.99 | ||
|
Unavailable |
|||
|
#12
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Unavailable |
|||
|
#13
GASKET, FLSHR LENS
183-83313-70-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
LENS, FLASHER
211-83332-75-00
|
$3.75 | ||
|
Unavailable |
|||
|
#15
SCREW, LENS FITTING
183-83333-71-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
COLLAR, FLASHER 1
256-83316-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#17
DAMPER, FLASHER 1
256-83321-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#18
WASHER, SPEC''L SHAP
90209-08028-00
|
$5.00 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$2.10 | ||
|
Unavailable |
|||
|
#21
CORD
275-83336-00-00
|
$0.60 | ||
|
Unavailable |
|||
|
#22
CORD
275-83346-00-00
|
$3.36 | ||
|
Unavailable |
|||
