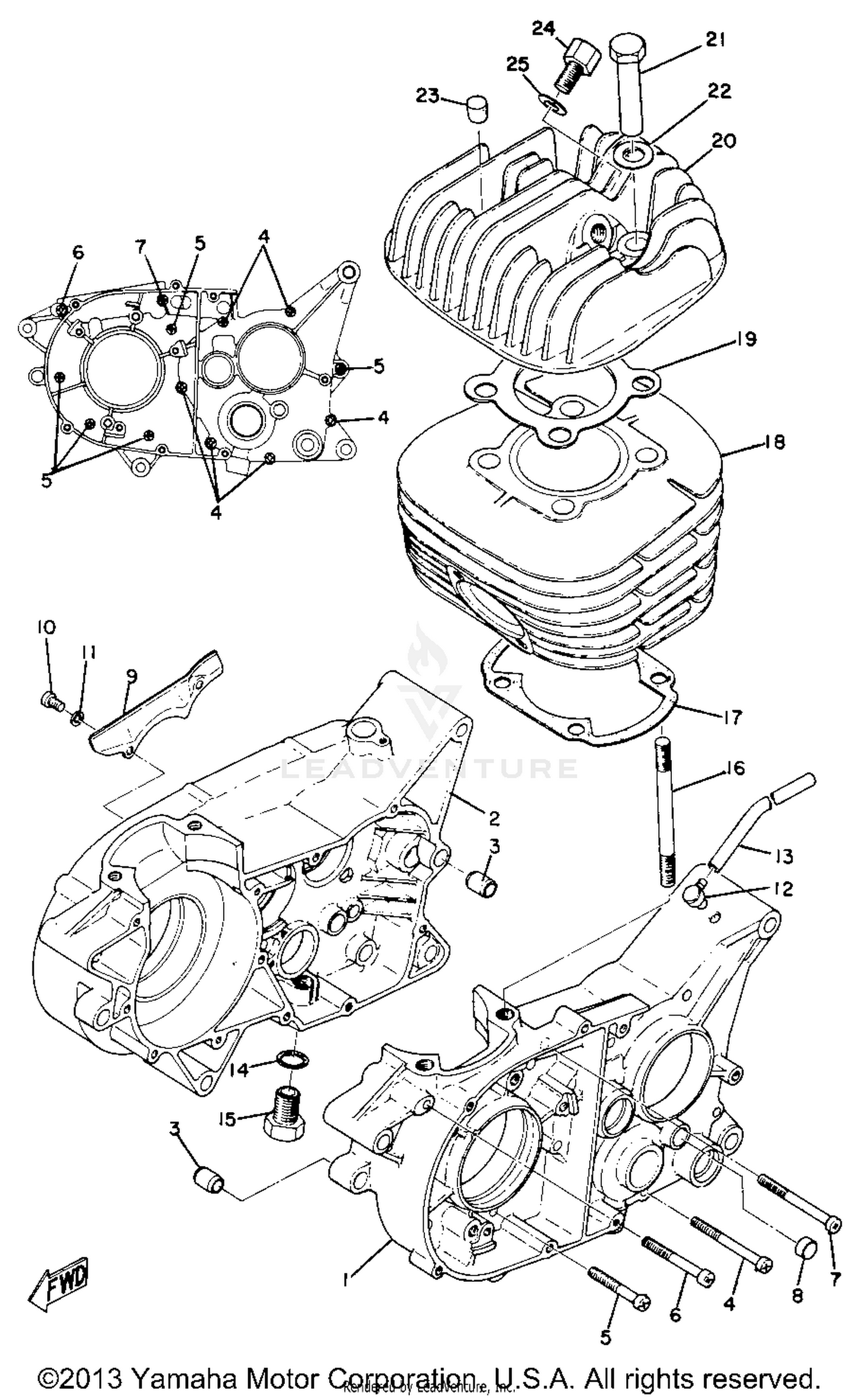

1971 Yamaha DT1MX CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
291-15111-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
291-15121-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06565-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06565-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
PLUG, BLIND
214-15385-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
214-15492-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BREATHER
583-15371-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE (3AK)
90446-07241-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-14385-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (214-11361-00)
90116-10089-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
GSKT,CYLNDR
214-11351-00-00
Superseded by 214-11351-09-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CYLINDER 1
233-11311-01-00
|
$302.99 | ||
|
Unavailable |
|||
|
#
CYLINDER 1
285-11311-00-00
|
$346.99 | ||
|
Unavailable |
|||
|
#19
CYLINDER 1
285-11311-00-00
|
$346.99 | ||
|
Unavailable |
|||
|
#
GSKT,CYLNDR HD
214-11181-01-00
Superseded by 214-11181-09-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEAD, CYLINDER 1
233-11111-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#
NO LONGER AVAILABLE
285-11111-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#21
NUT, SPEC''L SHAPE (214-11171-0
90179-10178-00
|
$4.40 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-15797-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ABSORBER 1
214-11161-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#24
PLUG, STRAIGHT SCRW (214-11197-
90340-14022-00
|
$4.40 | ||
|
Unavailable |
|||
|
#25
GASKET
214-11198-01-00
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#
CIRCLIP
99009-42500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLUG, BLIND
214-15385-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
BEARING
93306-20306-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
