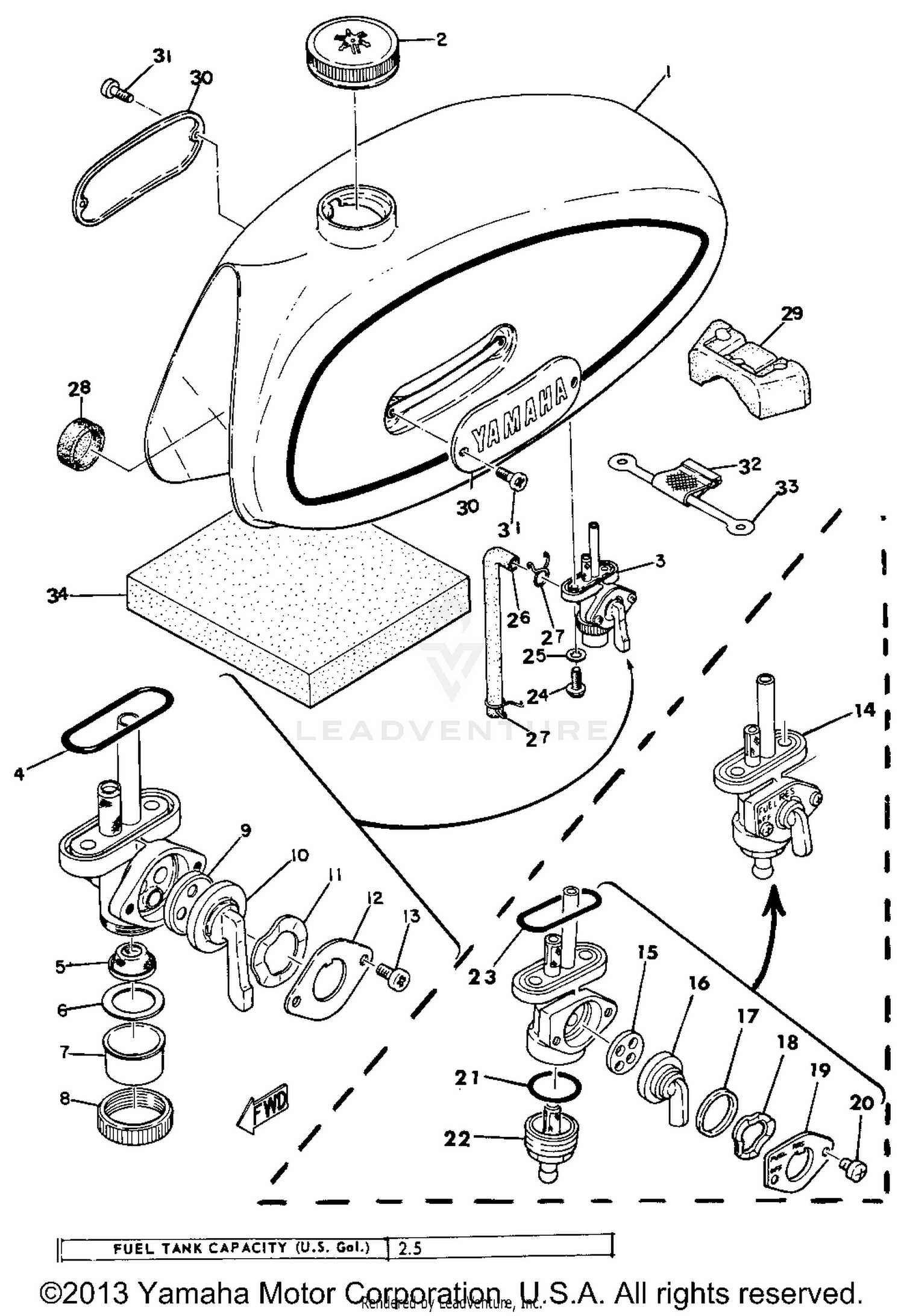

1971 Yamaha DT1MX FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
214-24110-03-07
|
$146.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSEMBLY
122-24610-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUEL COCK ASSEMBLY 1 (214-24500
498-24500-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
214-24512-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NET, FILTER 2
214-24515-00-00
|
$9.14 | ||
|
Unavailable |
|||
|
#6
GASKET
214-24522-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUP, FILTER
214-24521-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#8
NUT
214-24531-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#9
VALVE
214-24523-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, COCK
214-24524-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#11
WASHER, WAVE
90206-18025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, LVR FITTING
214-24525-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#13
SCREW, LEVER FITTING
214-24535-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL COCK ASSEMBLY 1 (214-24500
498-24500-01-00
|
$94.99 | ||
|
Unavailable |
|||
|
#15
VALVE
498-24523-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, COCK
498-24524-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#17
GASKET
498-24528-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#18
WASHER, WAVE
90206-18025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
PLATE, LVR FITTING
498-24525-00-00
|
$12.16 | ||
|
Unavailable |
|||
|
#20
SCREW, LEVER FITTING
214-24535-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
GASKET
498-24522-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUP, FILTER
498-24521-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#23
GASKET
214-24512-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#24
SCREW
90149-06011-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90202-05187-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (L100)
214-24311-00-00
Superseded by 90445-11293-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, LOCATING 4
214-24184-00-00
|
$24.95 | ||
|
Unavailable |
|||
|
#30
EMBLEM 1
211-24161-00-00
|
$19.72 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND, TNK FITTING 1
214-24173-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
BAND, TNK FITTING 1
248-24173-00-00
|
$11.08 | ||
|
Unavailable |
|||
|
#34
SEAL
214-21269-00-00
|
$6.86 | ||
|
Unavailable |
|||
