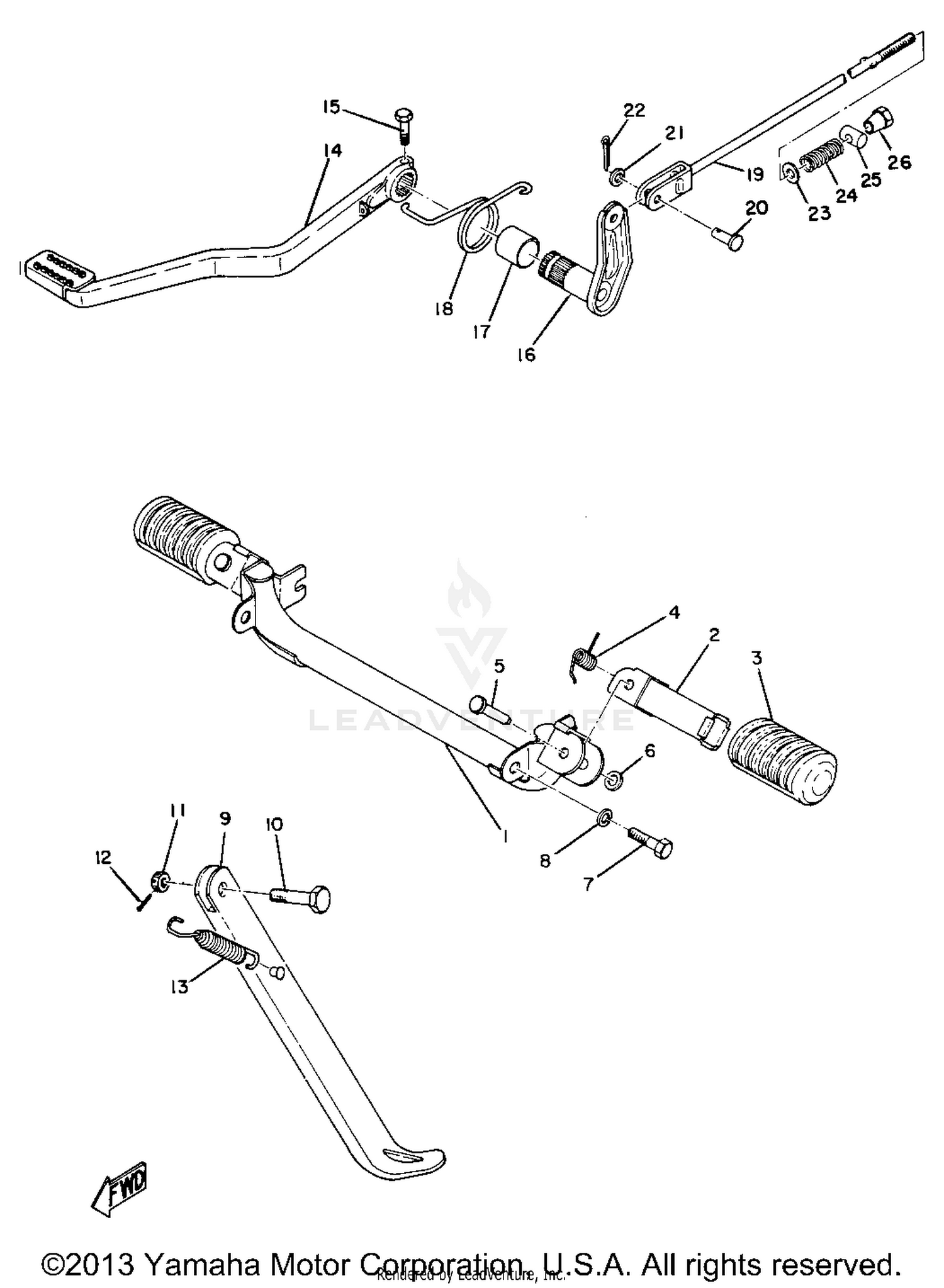

1971 Yamaha DT1MX STAND, FOOTREST & REAR BRAKE PEDAL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
214-27411-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#2
FOOTREST 2
214-27421-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FOOTREST
214-27413-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-20023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
90243-08006-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06042-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAND, SIDE
214-27311-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
91490-20025-00
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90507-29004-00
Superseded by 90506-26270-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, BRAKE PEDAL
214-27212-00-00
|
$30.48 | ||
|
Unavailable |
|||
|
#15
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, BRAKE PEDAL
214-27212-00-00
|
$30.48 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-20177-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
SPRING, TORSION (214-27216-00)
90508-40077-00
|
$3.00 | ||
|
Unavailable |
|||
|
#19
ROD, BRAKE
275-27231-00-00
|
$10.66 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06006-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
SPRING, COMPRESSION
90501-10245-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
90249-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06411-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
