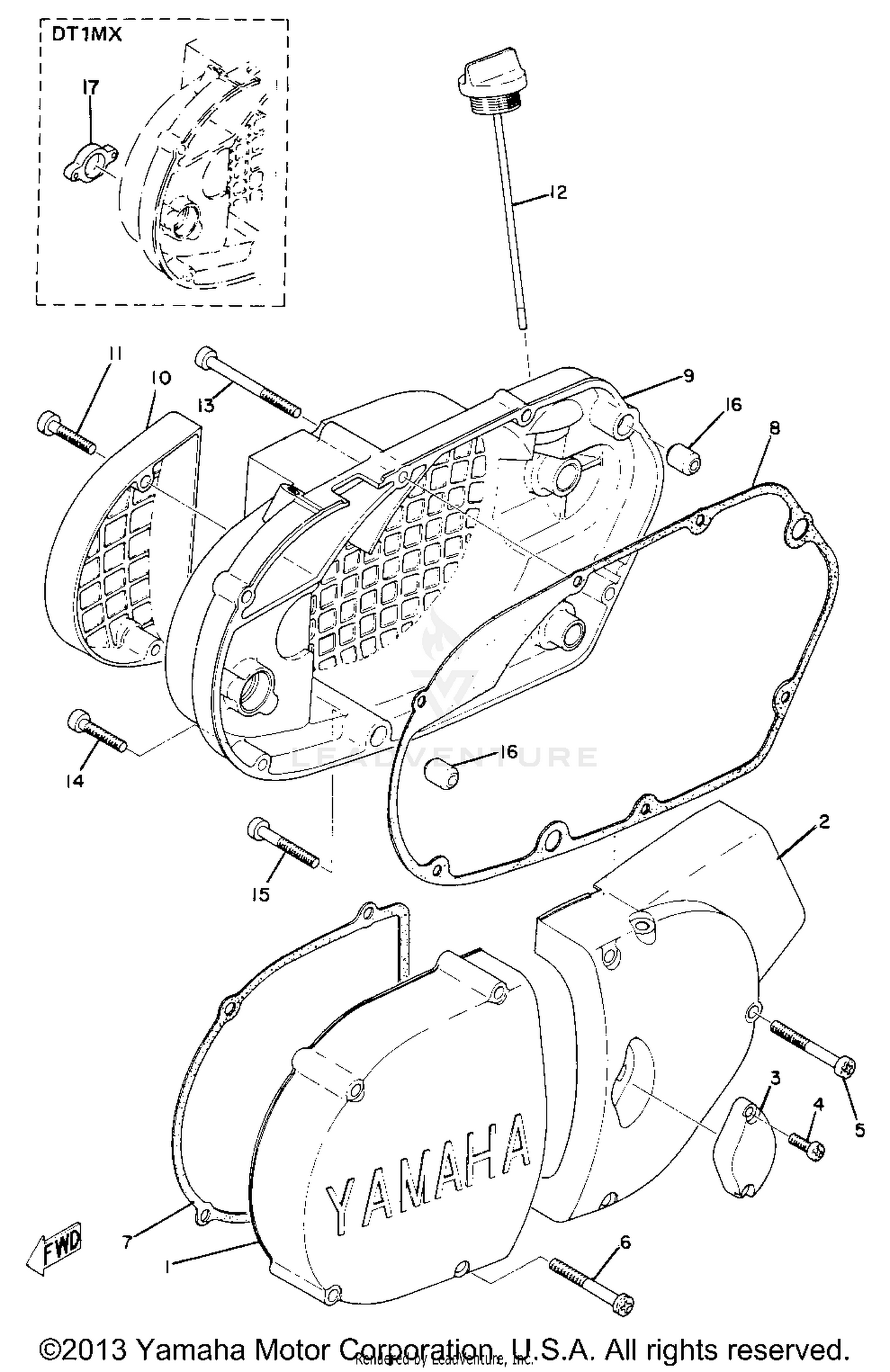

1971 Yamaha DT1MX CRANKCASE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
233-15411-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#2
COVER, CRANKCASE R
233-15421-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#3
COVER, CAP
233-15417-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06550-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-06550-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
GSKT, CRCS CVR
214-15451-02-00
Superseded by 214-15451-09-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GSKT,CRCS CVR
308-15461-01-00
Superseded by 308-15461-09-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CRANKCASE 3
233-15431-00-00
|
$76.54 | ||
|
Unavailable |
|||
|
#10
COVER, OIL PUMP
233-15416-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, OIL
214-15363-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06565-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.60 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, OIL PUMP R
161-15426-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
