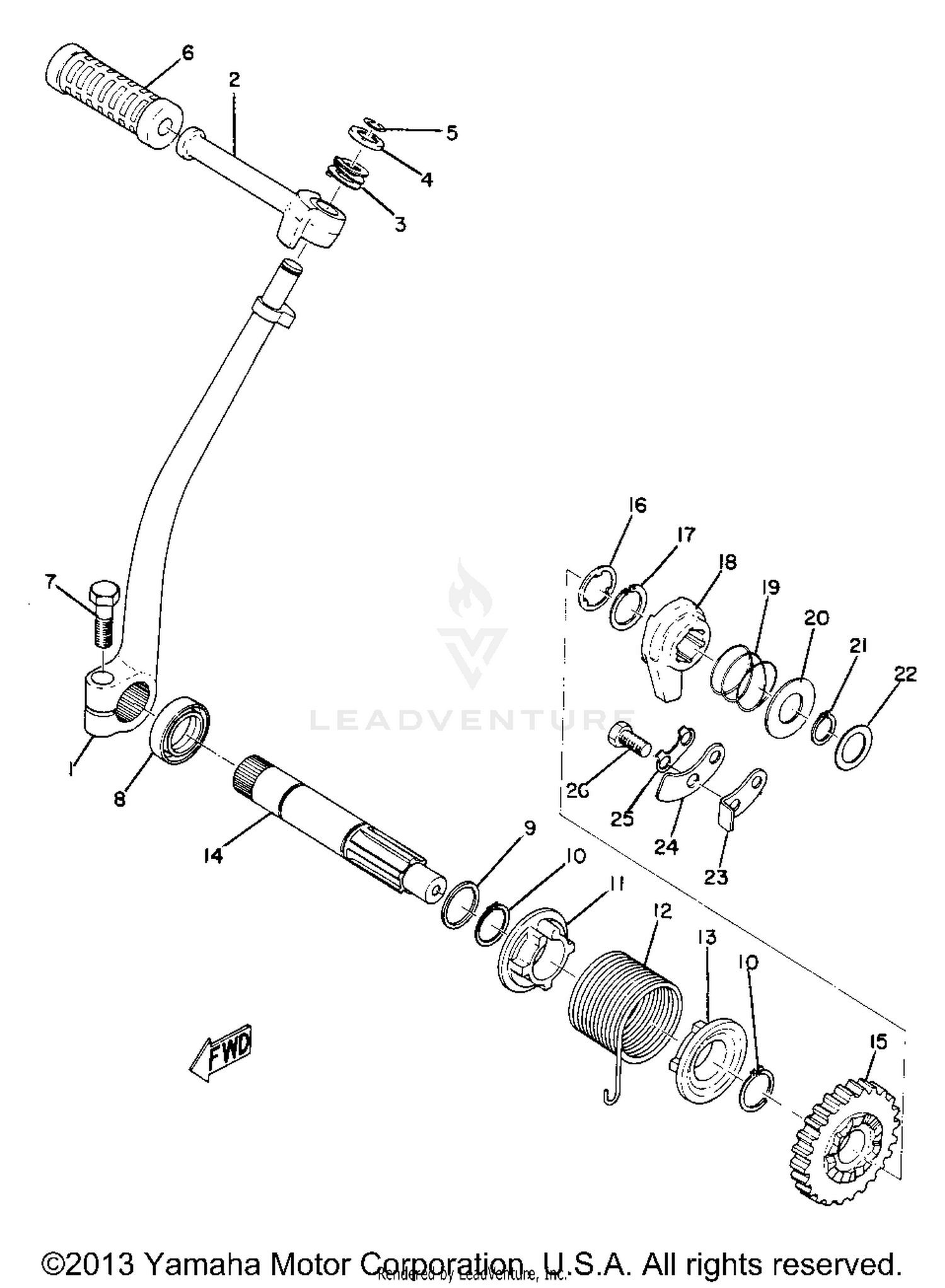

1971 Yamaha DT1MX STARTER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK CRANK ASSEMBLY
275-15610-00-93
|
$86.99 | ||
|
Unavailable |
|||
|
#2
LEVER, KICK
214-15612-01-00
|
$12.52 | ||
|
Unavailable |
|||
|
#3
SPRING, COMPRESSION (214-1562
90504-18009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, KICK LEVER
214-15616-00-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP, OUTER
93440-11029-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, KICK LEVER
214-15618-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93101-20048-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-203E7-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-20400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SPRING
214-15676-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#12
SPRING, TORSION (214-15665-00)
90508-30079-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
GUIDE, SPRING
214-15664-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#14
AXLE, KICK
214-15661-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#15
GEAR, KICK (24T)
308-15641-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#16
WASHER, CLAW (168-15653-00)
90214-16009-00
|
$2.20 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
WHEEL, RATCHET
308-15671-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#19
SPRING, COMPRESSION
90501-16107-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-155K6-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99009-15400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM
132-15644-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#23
STOPPER
214-15668-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
GUIDE, RATCHET WHEEL
2NX-15674-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK
214-15686-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, STUD
90116-06180-00
|
$2.65 | ||
|
Unavailable |
|||
