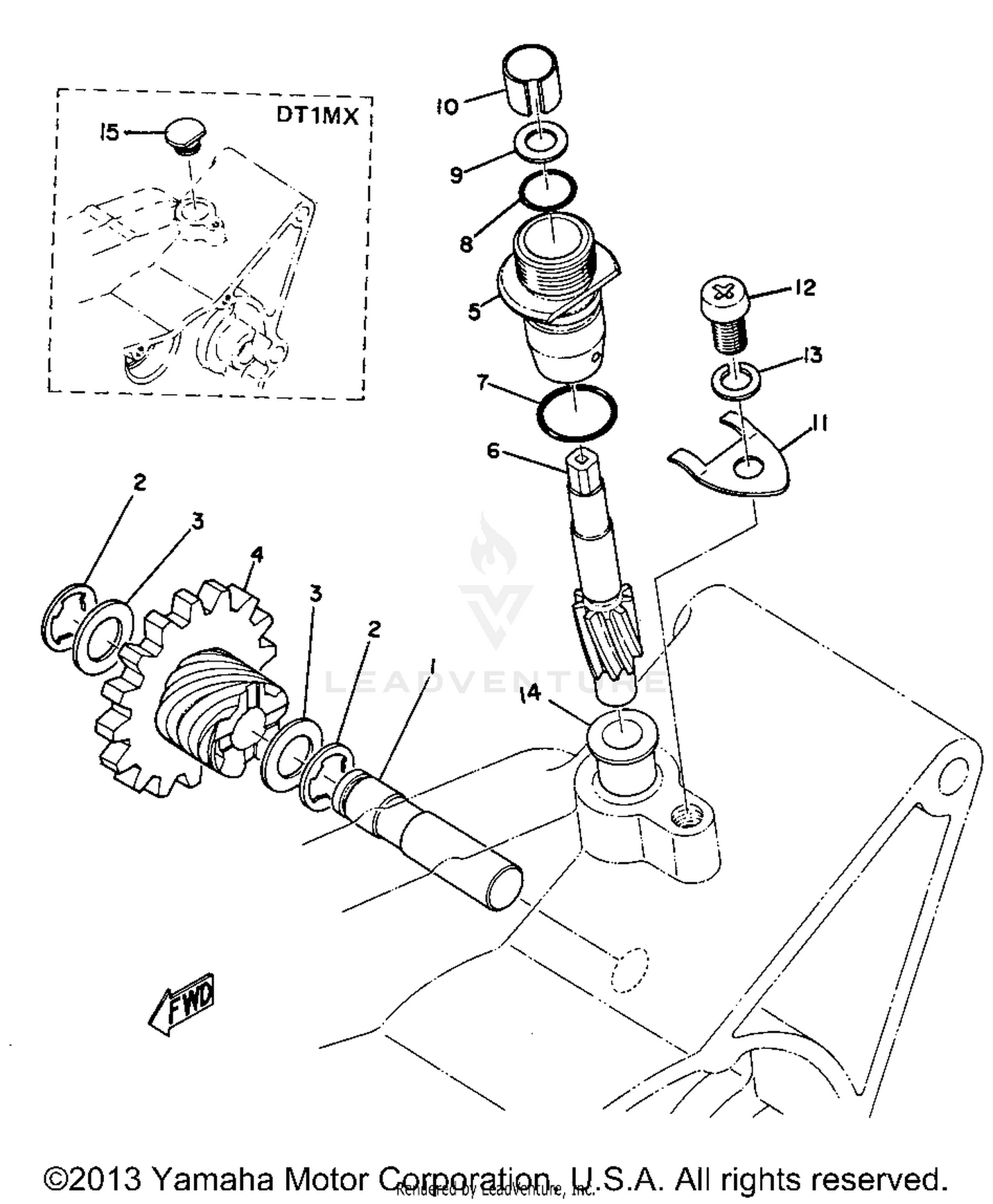

1971 Yamaha DT1MX TACHOMETER GEAR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, DRIVE GEAR
214-17861-09-00
|
$8.28 | ||
|
Unavailable |
|||
|
#2
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM (10.2-16-1)
214-17837-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#4
GEAR, DRIVE
214-17831-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
HOUSING ASSEMBLY, TACH (214-178
353-17810-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#6
GEAR, DRIVEN
214-17841-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-13016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-07100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM (7.5-10.8-0.4)
214-17847-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#10
BUSH, FORMED (214-17815-00)
90383-10005-00
|
$4.40 | ||
|
Unavailable |
|||
|
#11
STOPPER
5U7-17812-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, SOLID
90381-08002-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, HOUSING
241-17819-00-00
|
$3.16 | ||
|
Unavailable |
|||
