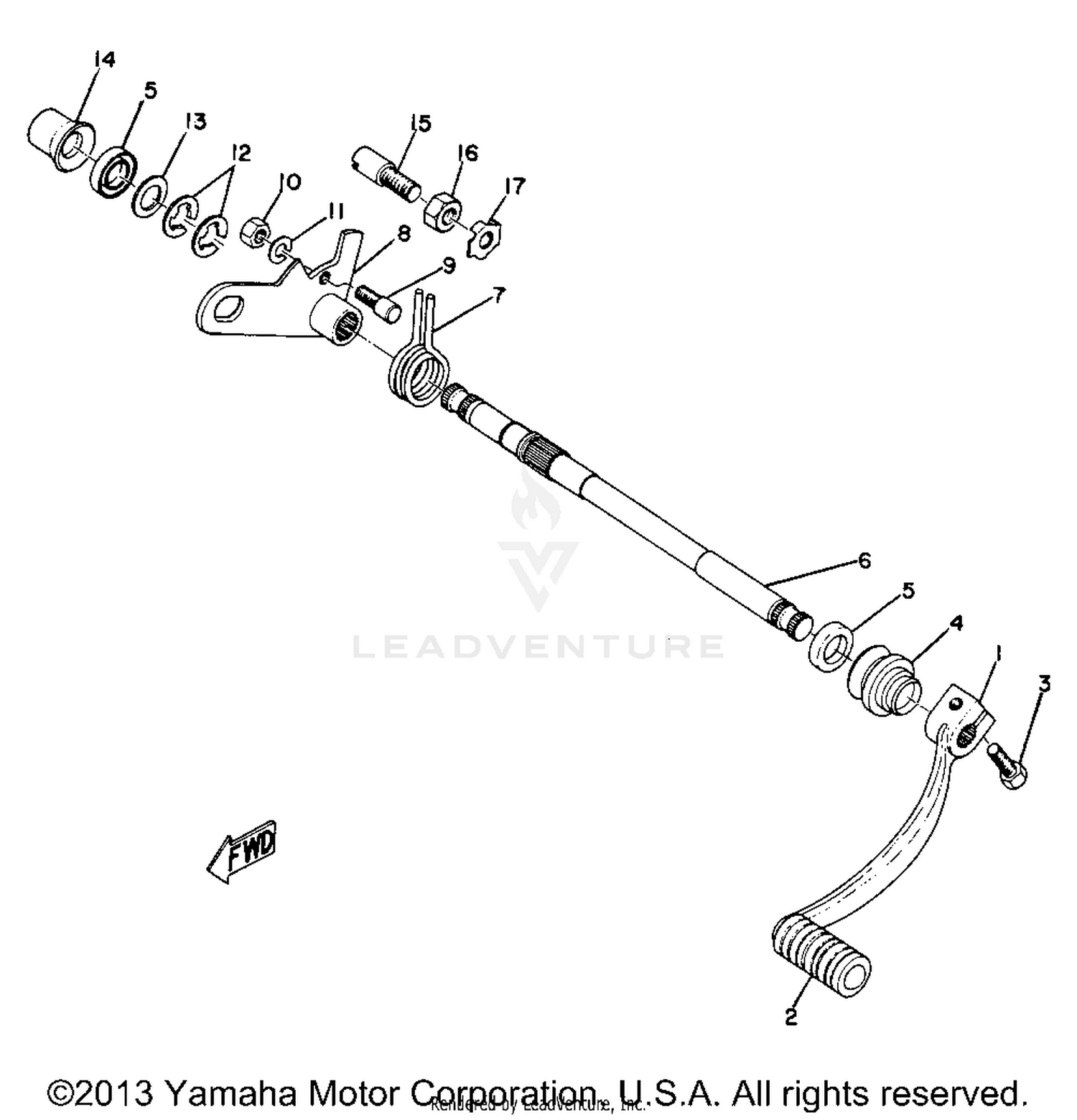

1971 Yamaha DT1MX SHIFTER B OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, SHIFT
214-18111-01-00
|
$34.82 | ||
|
Unavailable |
|||
|
#2
COVER, SHIFT PEDAL
132-18113-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, SEALING
214-18131-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, SHIFT
214-18125-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#7
SPRING, TORSION (214-18124-00)
90508-32052-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SHIFT 1
214-18121-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
SCREW, SPEC''L SHAPE (214-18186
90149-06017-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE (12.3-18-0.2) (15
90201-12168-00
|
$2.30 | ||
|
Unavailable |
|||
|
#14
COVER, SHIFT SHAFT
214-18129-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#15
SCREW
90149-08094-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK (214-18139-00)
90215-08015-00
|
$4.35 | ||
|
Unavailable |
|||
