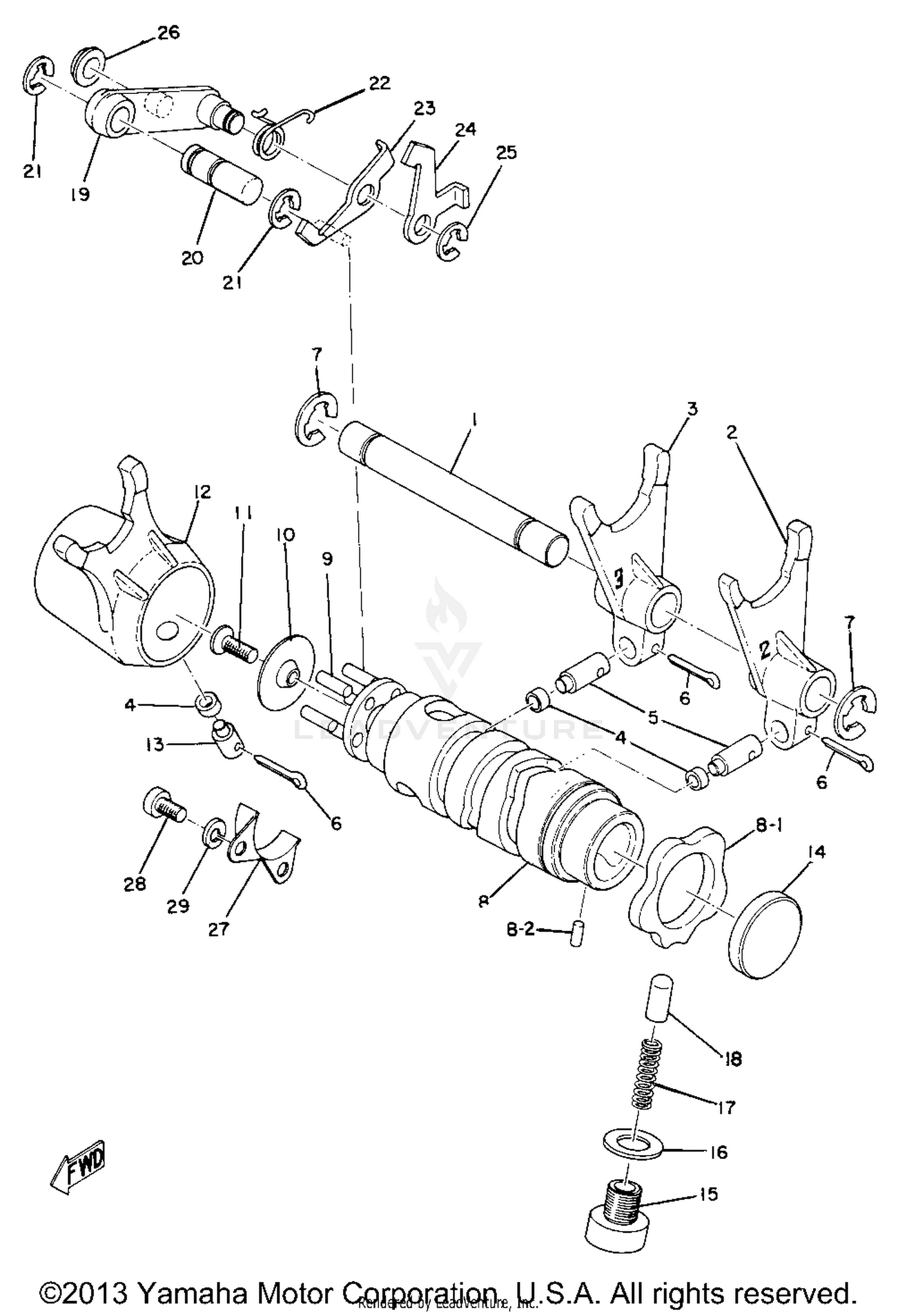

1971 Yamaha DT1MX SHIFTER A OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, SHIFT FORK GUIDE 1
214-18531-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#
CAM, SHIFT
214-18541-02-00
|
$67.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
278-17141-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
FORK, SHIFT 2
214-18512-00-00
|
$36.74 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
93604-08071-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FORK, SHIFT 3
214-18513-00-00
|
$42.16 | ||
|
Unavailable |
|||
|
#4
PIN, SPEC''L SHAPE
136-18551-00-00
Superseded by 90249-05035-00
|
$2.65 | ||
|
Unavailable |
|||
|
#5
PIN, SPEC''L SHAPE (214-18552-0
90249-05042-00
|
$3.70 | ||
|
Unavailable |
|||
|
#6
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM, SHIFT
214-18541-02-00
|
$67.99 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
93604-14012-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SIDE 1
214-18561-00-00
|
$3.45 | ||
|
Unavailable |
|||
|
#11
SCREW, FLAT HEAD
98701-05016-00
Superseded by 98707-05016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FORK, SHIFT 1
214-18511-00-00
|
$79.79 | ||
|
Unavailable |
|||
|
#13
PIN, SPEC''L SHAPE
90249-05041-00
|
$1.90 | ||
|
Unavailable |
|||
|
#14
PLUG, SPEC''L SHAPE
90338-32031-00
|
$2.10 | ||
|
Unavailable |
|||
|
#15
BOLT (59W)
90109-12198-00
Superseded by 90109-127A3-00
|
$13.49 | ||
|
Unavailable |
|||
|
#16
GASKET
90430-12207-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION (137-18557-
90501-09050-00
|
$2.80 | ||
|
Unavailable |
|||
|
#18
STOPPER, CAM
137-18547-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#19
BRACKET
214-18128-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#20
AXLE, PAWL HOLDER
214-18188-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#21
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION (214-18123-00)
90508-08007-00
|
$6.99 | ||
|
Unavailable |
|||
|
#23
LEVER, SHIFT 4
214-18152-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#24
LEVER, SHIFT 3
214-18151-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#25
CIRCLIP
99080-07600-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROLLER, SHIFT LEVER
214-18178-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#27
GUIDE
214-18179-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
