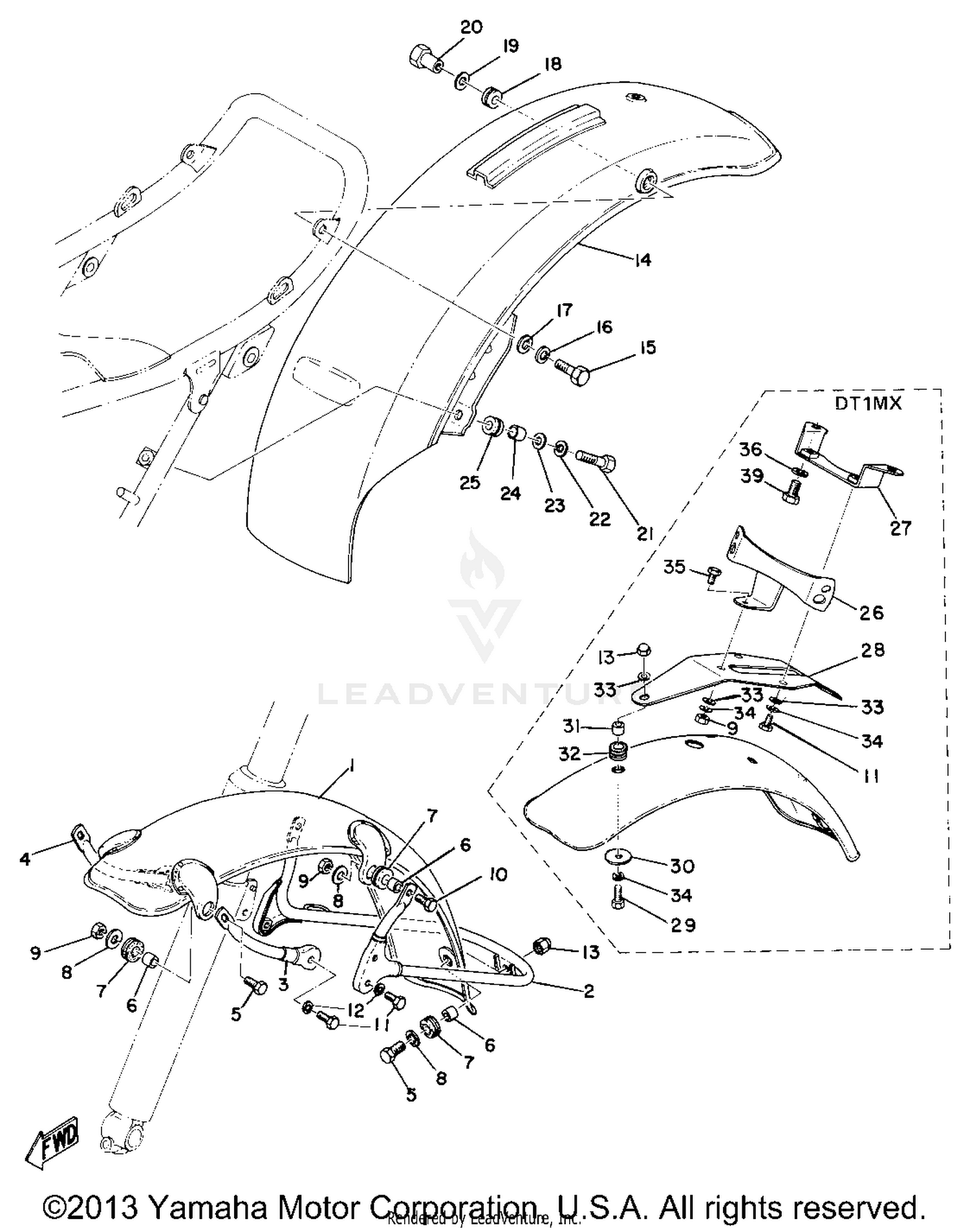

1971 Yamaha DT1MX FRONT FENDER & REAR FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
214-21510-00-35
|
$89.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
284-21510-00-35
|
$73.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FENDER
214-21512-00-93
|
$33.99 | ||
|
Unavailable |
|||
|
#3
STAY, FENDER 1
214-21513-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#4
STAY, FENDER 2
214-21514-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#5
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06M08-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97013-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FENDER, REAR
275-21610-00-35
|
$85.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER 2
168-21639-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-15239-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
NUT, REAR FENDER
275-21635-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#21
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$6.99 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-14023-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
GROMMET
90480-13163-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, FENDER 1
284-21513-00-35
|
$9.99 | ||
|
Unavailable |
|||
|
#27
STAY, FENDER 2
284-21514-00-35
|
$12.99 | ||
|
Unavailable |
|||
|
#28
BRACKET, FENDER
284-21512-00-35
|
$45.99 | ||
|
Unavailable |
|||
|
#29
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Unavailable |
|||
|
#30
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.49 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-062N2-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-13163-00
|
$3.65 | ||
|
Unavailable |
|||
|
#33
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Unavailable |
|||
|
#34
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#35
BOLT
97013-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#36
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-14100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER 2
170-21746-00-00
Superseded by 5A8-21639-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
