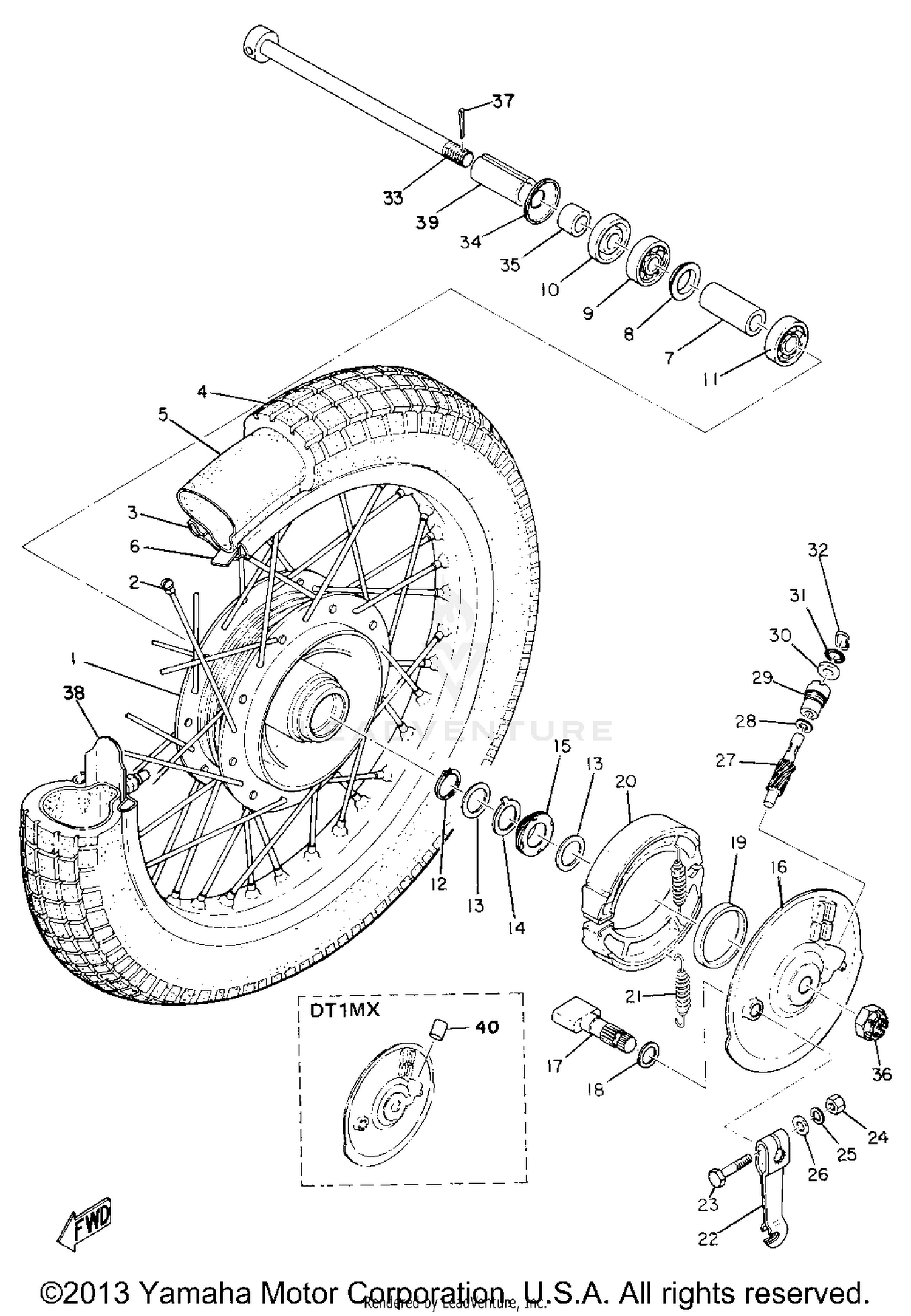

1971 Yamaha DT1MX FRONT WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
227-25111-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
214-25104-00-00
|
$20.34 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
214-25197-90-00
|
$3.96 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
214-25196-90-00
|
$3.96 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
214-25196-80-00
|
$8.46 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
214-25197-80-00
|
$4.56 | ||
|
Unavailable |
|||
|
#
SPOKE SET, FRONT
214-25104-10-00
|
$28.30 | ||
|
Unavailable |
|||
|
#3
RIM 1.60X19
94416-19035-00
|
$33.75 | ||
|
Unavailable |
|||
|
#
RIM 1.60X21
94416-21038-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
325X19 DUNLP TRIAL
94132-19063-00
|
$24.41 | ||
|
Unavailable |
|||
|
#
275X21 BS M7
94127-21216-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94232-19064-00
|
$11.99 | ||
|
Unavailable |
|||
|
#
TUBE 2.75/3.00-21
94225-21186-00
Superseded by 94227-21293-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.00-19)
94325-19027-00
Superseded by 94327-19111-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#7
SPACER
90560-15293-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER 2
146-25116-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-20211-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-20009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20204-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, METER
214-25149-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, DRIVE
214-25135-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE PLT ASSEMBLY
438-25120-10-00
|
$65.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90507-20002-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (341-25147-00)
90201-25286-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL, SDD-TYPE (SDD-50-62-7
93105-50010-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRAKE SHOE KIT
214-W2535-00-00
Superseded by 3GW-W253A-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90507-20002-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
LEVER, CAMSHAFT 1
214-25155-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#23
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, METER
214-25138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-07076-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH
109-25136-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93104-07003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING, STOP
102-25137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
AXLE, WHEEL
275-25181-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#34
COVER, HUB DUST
1R0-25118-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR (136-25183-00)
90387-157G5-00
|
$11.99 | ||
|
Unavailable |
|||
|
#36
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER, BEAD
1T1-25194-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR (275-25186-00)
90387-15117-00
|
$4.35 | ||
|
Unavailable |
|||
|
#40
PLUG, TAPER
90336-18023-00
|
$3.00 | ||
|
Unavailable |
|||
