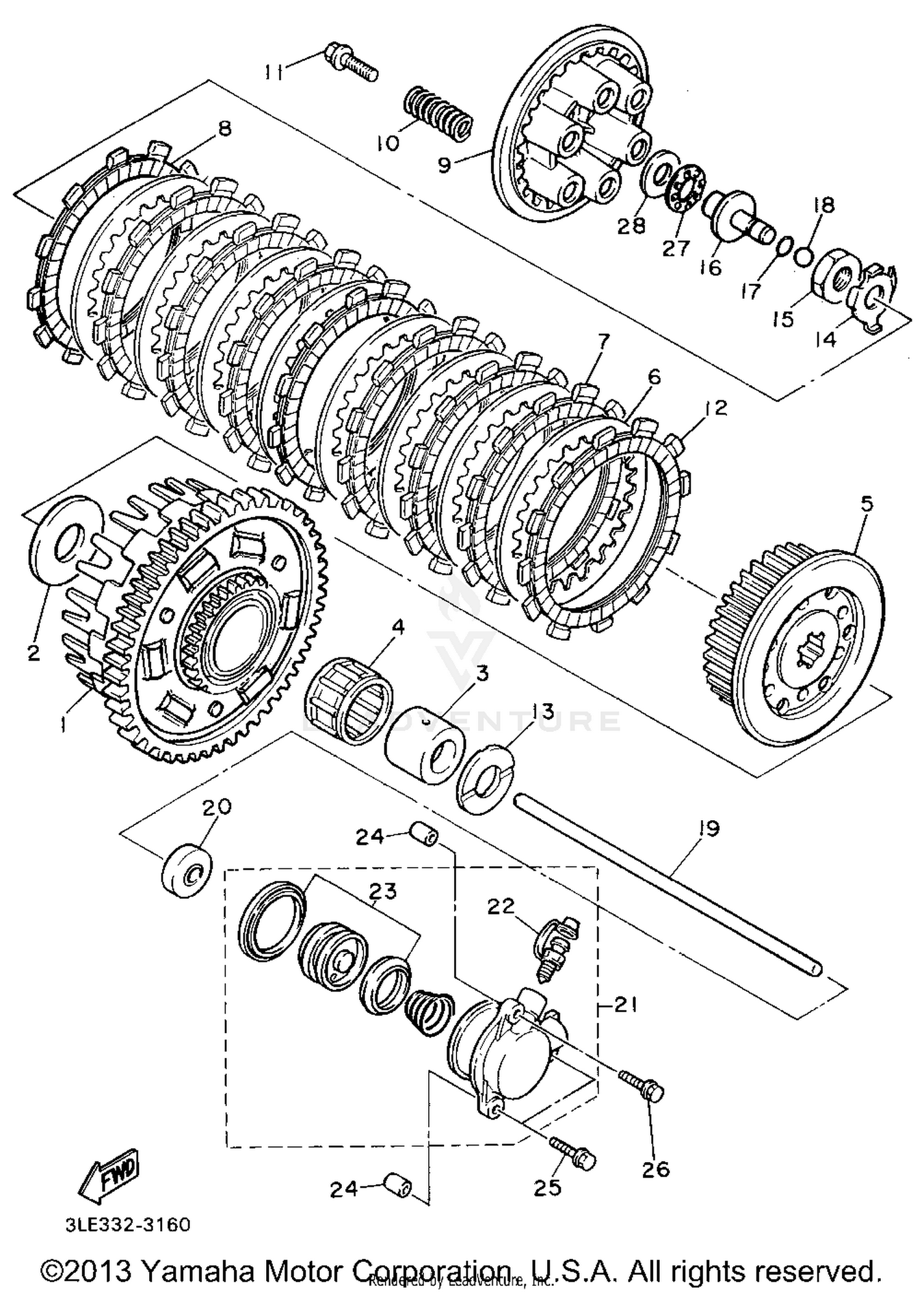

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
3GM-16150-01-00
|
$533.99 | ||
|
Unavailable |
|||
|
#2
PLATE, THRUST 1
1AE-16154-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90560-25270-00
Superseded by 90387-25024-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93310-340N8-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
4BH-16371-01-00
Superseded by 4BH-16371-02-00
|
$161.99 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH 2
31A-16325-00-00
Superseded by 31A-16325-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
PLATE, FRICTION
4H7-16321-01-00
Superseded by 4H7-16321-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FRICTION
31A-16321-00-00
Superseded by 4H7-16321-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
PLATE, PRESSURE 1
3GM-16351-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION
90501-230E4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-06123-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION
3GM-16321-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, THRUST 2
1AE-16164-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH 1
1LJ-16356-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 2
1AE-16357-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93109-08061-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PUSH LEVER COMP.
1TV-16381-10-00
Superseded by 1TV-16381-12-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER SEAL KIT
26H-W0098-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95026-06030-00
Superseded by 95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95026-06090-00
Superseded by 95027-06090-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-150H2-00
Superseded by 90201-150U6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
