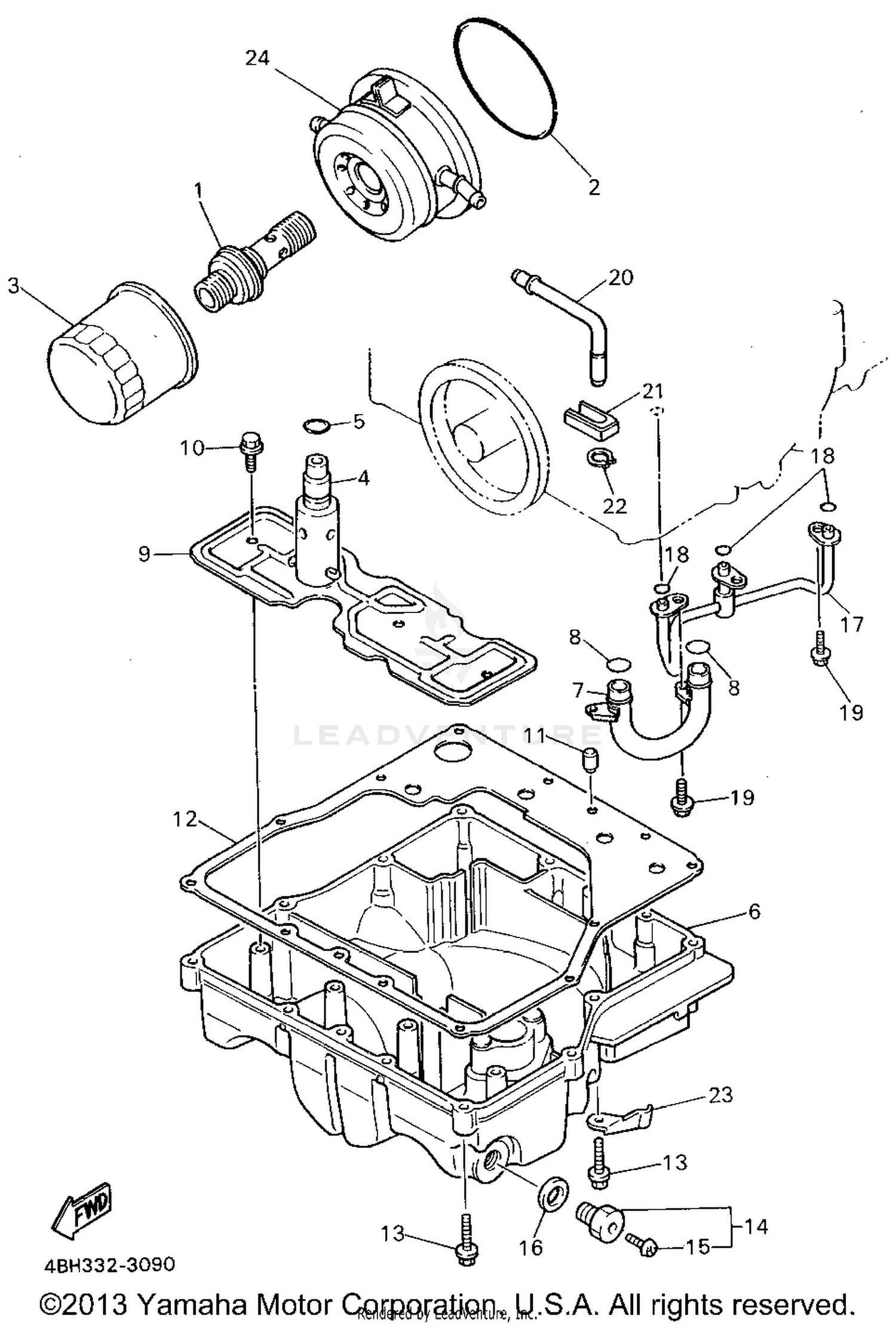

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, UNION
3TJ-13340-00-00
Superseded by 90401-20158-00
|
$15.49 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-87723-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT ASSY, OIL CL
3FV-13440-00-00
Superseded by 3FV-13440-30-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RELIEF VALVE ASSY
3KS-13490-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, STRAINER
4BH-13417-00-00
|
$222.99 | ||
|
Unavailable |
|||
|
#7
PIPE, OIL 1
3FV-13416-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,BAFFLE LOWER
3GM-13337-00-00
Superseded by 3FV-13337-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
95026-06010-00
Superseded by 95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, STRAINER COVER
4BH-13414-00-00
Superseded by 4FM-13414-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98901-06008-00
Superseded by 98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, DELIVERY 1
3GM-13161-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-06714-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, BREATHER
3GM-15373-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
HOLDER, OIL PIPE
3GM-13174-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
99009-10400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90465-08076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL COOLER ASSEMBLY
4BH-13470-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
