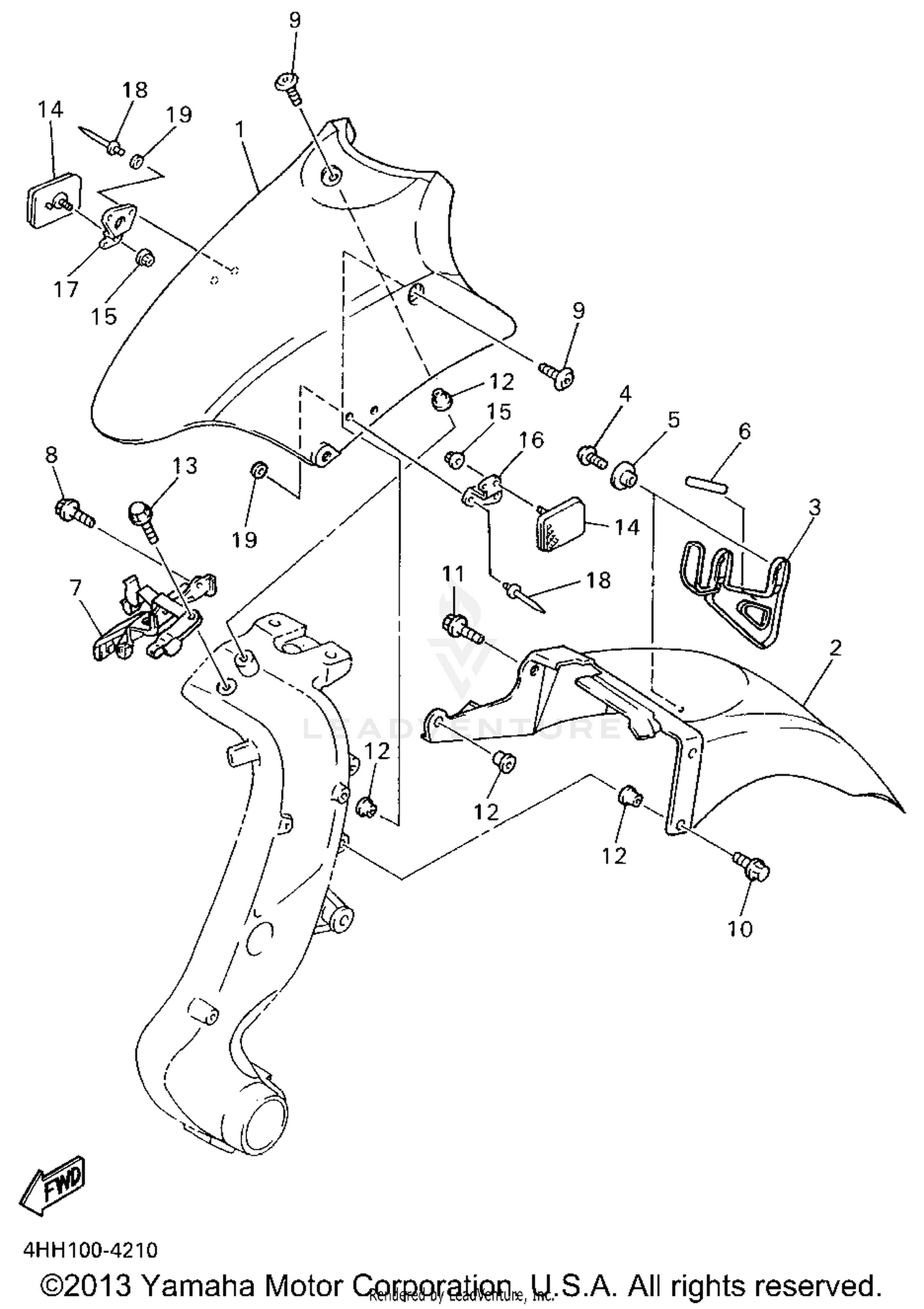

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4FV-21511-00-P2
|
$168.99 | ||
|
Unavailable |
|||
|
#2
FENDER, FRONT 2
4BH-21556-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#3
HOLDER
4BH-21596-00-00
|
$54.62 | ||
|
Unavailable |
|||
|
#4
BOLT, BUTTON HEAD
92011-06012-00
Superseded by 92014-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-0702H-00
|
$3.95 | ||
|
Unavailable |
|||
|
#6
SEAL
46X-21269-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FENDER 1
4BH-21513-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06061-00
Superseded by 90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-0702E-00
Superseded by 90387-065T2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
92011-06016-00
Superseded by 92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
REFLECTOR ASSY
23V-85110-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY 1
4FV-21587-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#17
STAY 2
4FV-21588-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#18
RIVET, BLIND
90267-40073-00
Superseded by 90267-40029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-044A2-00
Superseded by 90201-044H9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
