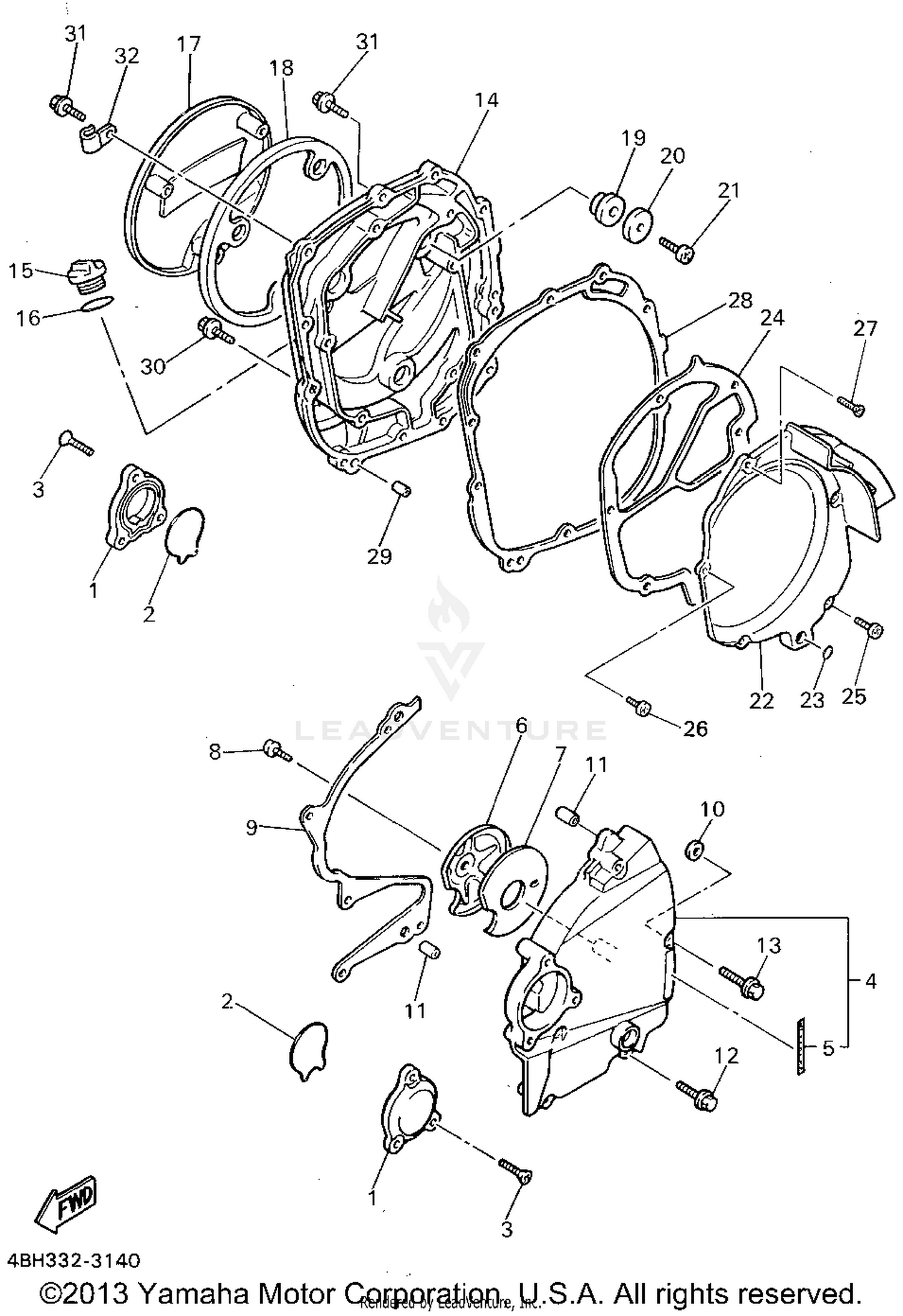

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL PUMP
3GM-15416-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#2
GASKET, OIL PUMP COVER 1
1AE-15456-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, FLAT HEAD
90152-06014-00
Superseded by 98707-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKCASE COVER ASSEMBLY 1
3GM-15410-00-00
Superseded by 3GM-15410-01-00
|
$225.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM
2GH-15435-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CAP 2
3GM-15427-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, ENGINE MOUNT 1
1AE-15316-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
BOLT, BUTTON HEAD
92011-06010-00
Superseded by 92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, CRANKCASE COVER 1
4BH-15451-00-00
Superseded by 4FM-15451-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
4CR-15467-00-00
Superseded by 4FM-15467-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95021-06050-00
Superseded by 95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CRANKCASE 2
4BH-15421-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#15
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CAP
3GM-15417-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#18
RING, RUBBER
3GM-15449-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
4H7-15486-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BREATHER 1
3GM-15346-00-00
Superseded by 4SV-15346-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-09418-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, CARBURETOR COVER 2
4BH-15463-00-00
Superseded by 4FM-15463-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW,PAN HEAD
90157-06104-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, FLAT HEAD
90152-06024-00
Superseded by 98707-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
GASKET, CRANKCASE COVER 2
4BH-15461-00-00
Superseded by 4FM-15461-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90465-06038-00
Superseded by 90465-06376-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
