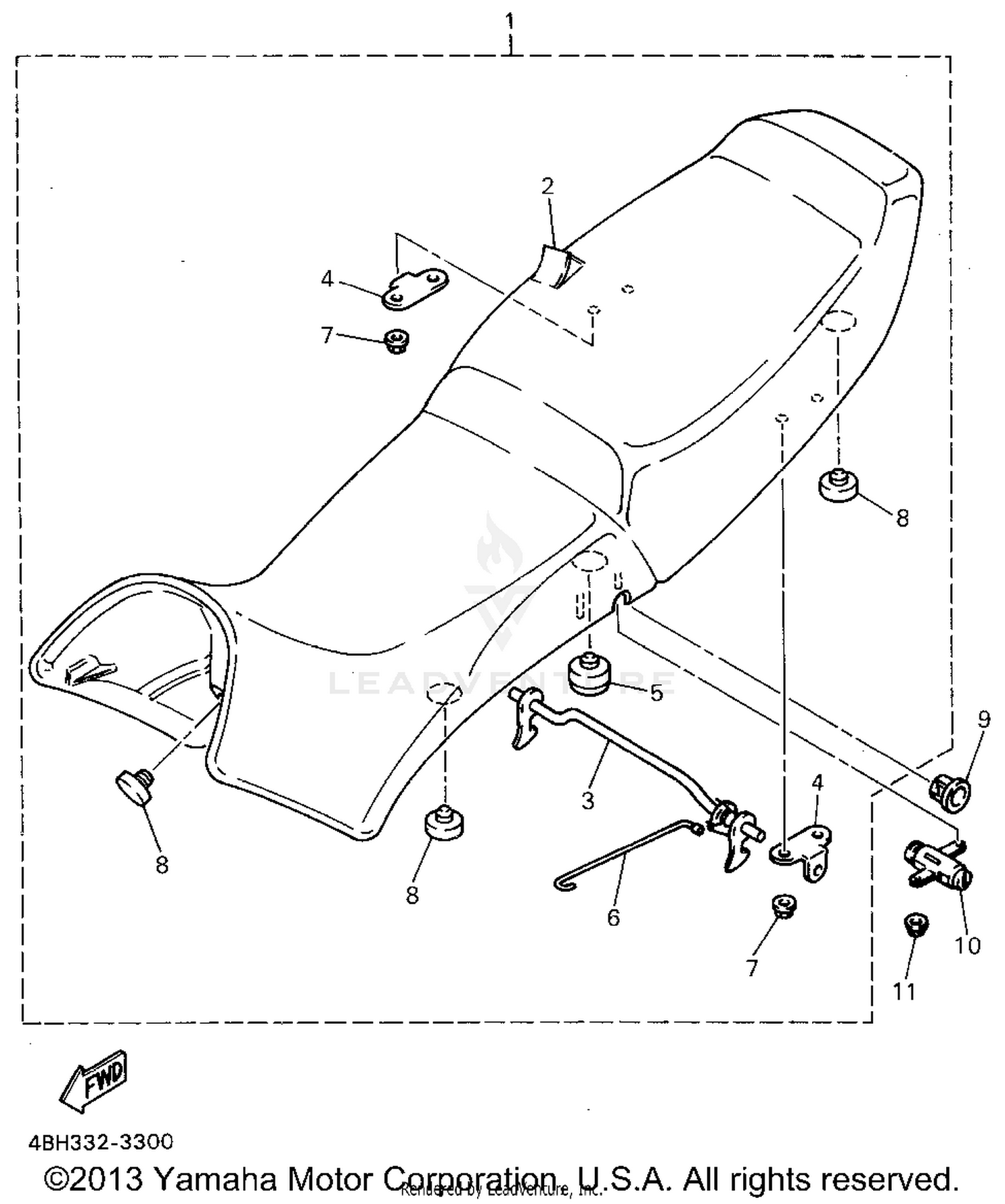

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
4BH-24730-10-00
|
$688.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
4BH-2470F-10-00
|
$196.99 | ||
|
Unavailable |
|||
|
#3
LEVER, SEAT
4BH-24776-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
4BH-24718-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#5
PAD, SEAT
1T4-24741-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
4BH-2478F-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
51Y-24796-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
SEAT LOCK ASSEMBLY
4BH-24705-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
