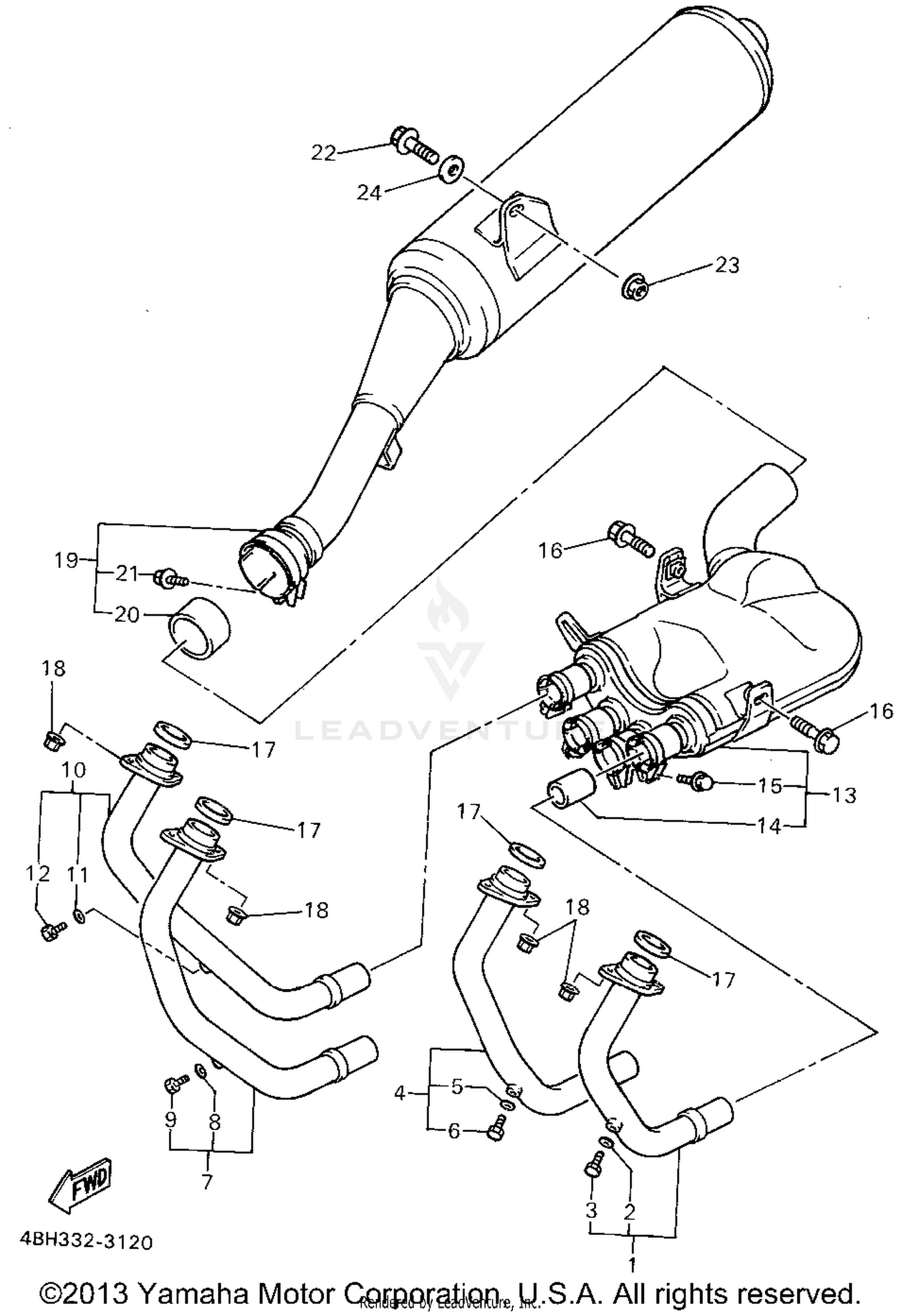

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
4BH-14610-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXHAUST PIPE ASSEMBLY 2
4BH-14620-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#6
BOLT
90101-06576-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
EXHAUST PIPE ASSEMBLY 3
4BH-14630-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#9
BOLT
90101-06576-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
EXHAUST PIPE ASSEMBLY 4
4BH-14650-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06576-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
CHAMBER ASSY
4BH-14730-00-00
Superseded by 4BH-14730-01-00
|
$1,012.99 | ||
|
Unavailable |
|||
|
#14
GASKET, MUFFLER
4BH-14714-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (SMALL HEAD)
95023-08020-00
Superseded by 95024-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
MUFFLER ASSEMBLY 1
4BH-14710-00-00
|
$1,152.99 | ||
|
Unavailable |
|||
|
#20
GASKET, SILENCER
3HE-14755-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95821-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-10316-00
Superseded by 90105-10778-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-10669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
