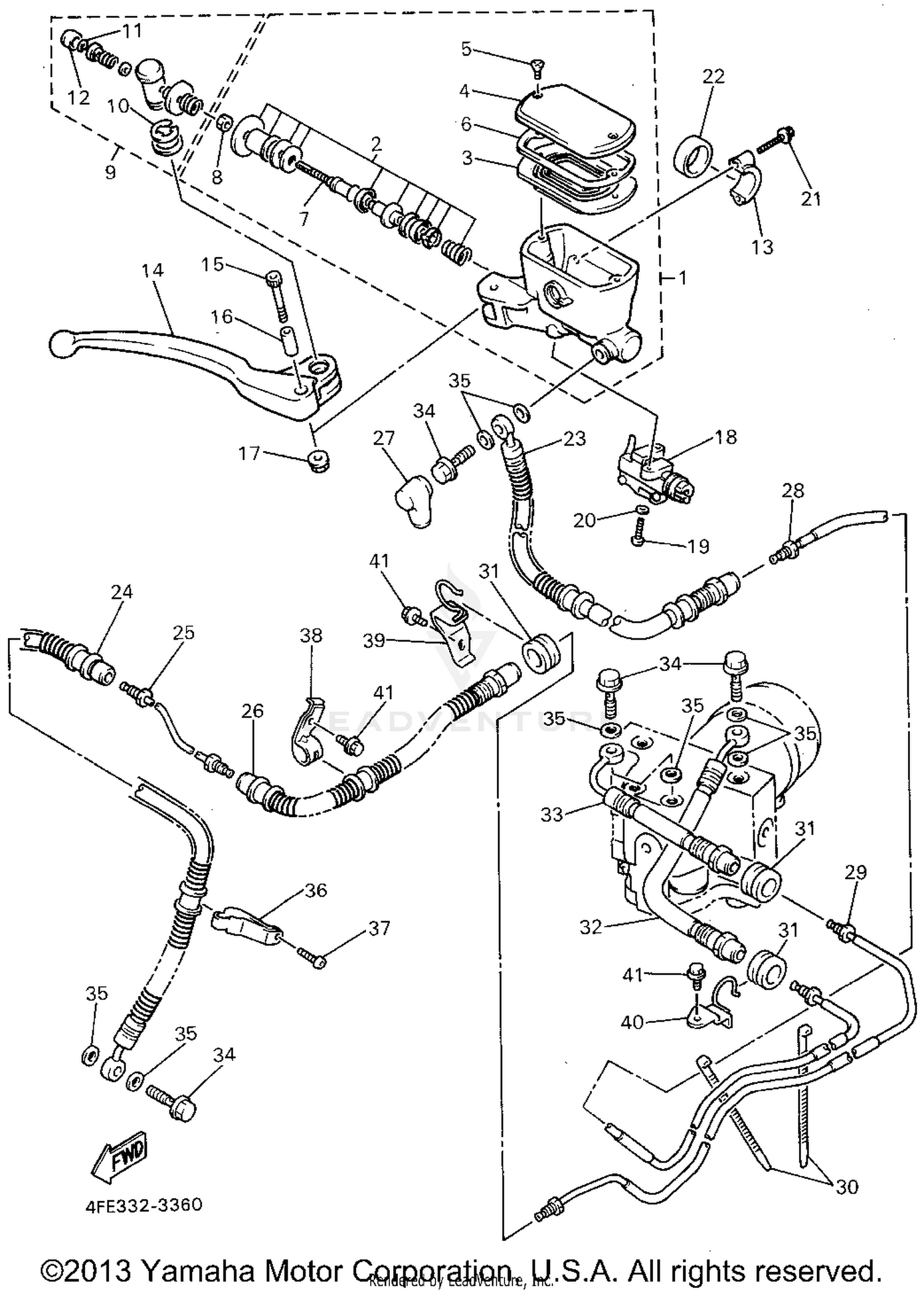

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
4BH-W2587-01-00
|
$341.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
4BH-W0041-00-00
Superseded by 4TX-25807-04-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4BH-25854-01-00
Superseded by 4BH-25854-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4BH-25852-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, PISTON
4BH-25815-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PUSH ROD COMP.
3YX-25880-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE
95601-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW KIT, MASTER CYLINDER
3YX-W0091-02-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
3YX-25866-00-00
Superseded by 99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
3YX-25866-10-00
Superseded by 99080-03600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT
3YX-2583H-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER 2
3YX-83922-09-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, LEVER
3YX-2589F-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SLEEVE, CALIPER
3YX-25838-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT STOP SWITCH ASSEMBLY
4FE-83980-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#19
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-22660-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, BRAKE 1
4FE-25872-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BRAKE 2
4FE-25873-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, BRAKE
4FE-25871-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#26
HOSE, BRAKE 5
4FE-2581K-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#27
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE, BRAKE 2
4FE-25882-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#29
PIPE, BRAKE 3
4FE-25883-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#30
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
PROTECTOR, BRAKE HOSE
341-25881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BRAKE
4FE-25874-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE, BRAKE 4
4FE-2581J-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#34
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOLDER, BRAKE HOSE 1
4BH-25875-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#37
BOLT, BUTTON HEAD
92011-06016-00
Superseded by 92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER, BRAKE HOSE
4BH-25887-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#39
HOLDER, BREAK HOSE
4BH-2587A-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#40
HOLDER, BREAK HOSE
4FE-2587A-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
