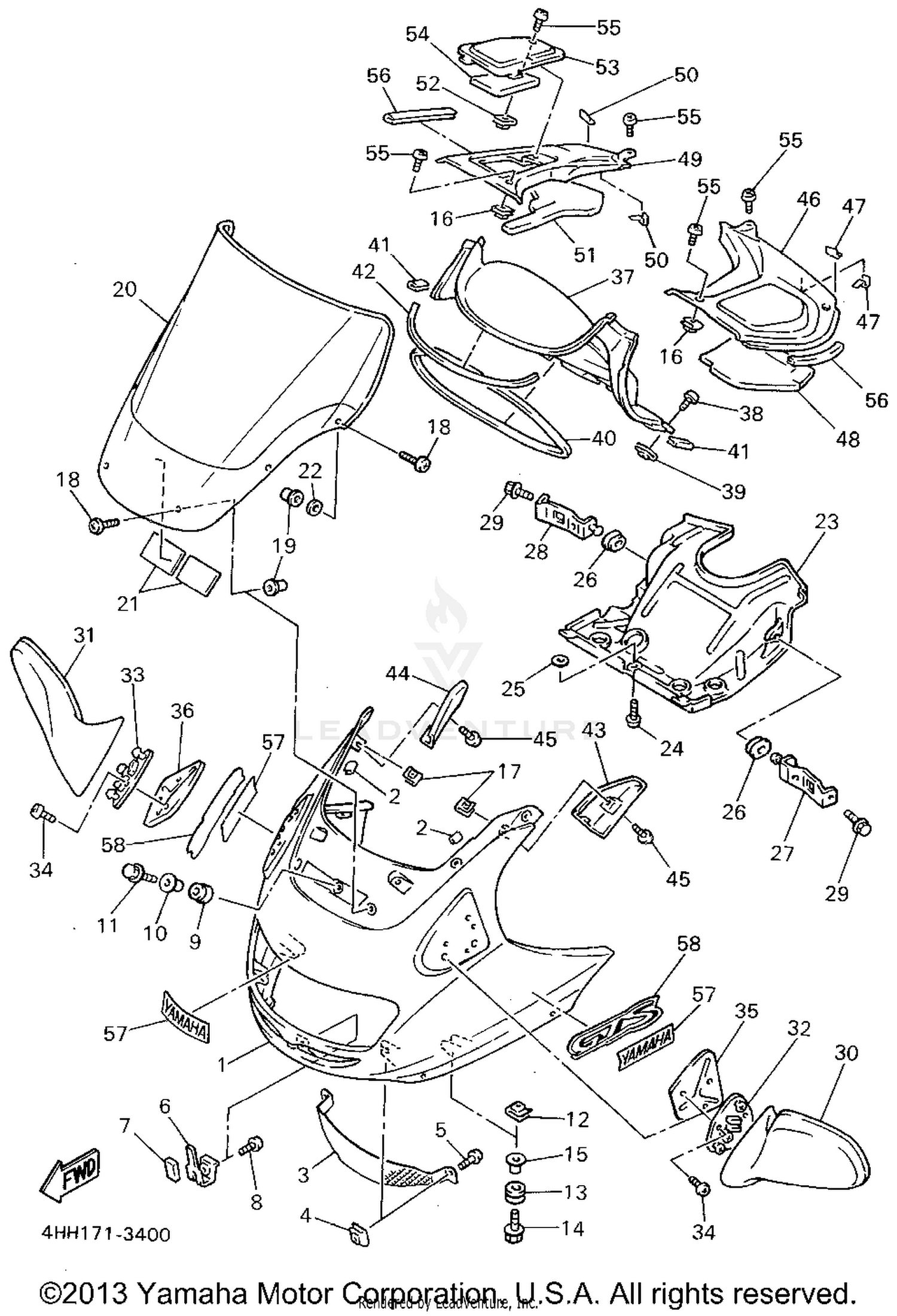

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWLING ASSEMBLY
4BH-28350-00-P3
|
$869.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR
3MA-27491-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE
4BH-28336-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#4
NUT, SPRING
90183-05061-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY 3
4BH-28358-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
DAMPER
34M-2139X-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-067K6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-15257-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06163-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-081F5-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05061-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
SCREW, ROUND HEAD
90150-05023-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WINDSHIELD
4BH-28381-10-00
Superseded by 4BH-28381-11-00
|
$280.99 | ||
|
Unavailable |
|||
|
#21
SEAL 2
1JK-21735-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
3YF-21268-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#23
COVER
4BH-28365-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#24
SCREW
90149-06194-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE
4U5-2176E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-12325-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET
4BH-28366-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#28
BRACKET
4BH-28367-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#29
BOLT,FLANGE
95826-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
REAR VIEW MIRROR ASSEMBLY (LEFT
4BH-26280-20-00
|
$145.99 | ||
|
Unavailable |
|||
|
#31
REAR VIEW MIRROR ASSEMBLY (RIGH
4BH-26290-20-00
|
$145.99 | ||
|
Unavailable |
|||
|
#32
STAY, MIRROR 1
4BH-2831W-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#33
STAY, MIRROR 2
4BH-2832W-00-00
|
$61.16 | ||
|
Unavailable |
|||
|
#34
SCREW, BIND
98906-05014-00
Superseded by 98907-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, MIRROR 1
4BH-2834N-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#36
BRACKET, MIRROR 2
4BH-2834R-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#37
PANEL, INNER 5
4BH-2836R-00-00
|
$266.99 | ||
|
Unavailable |
|||
|
#38
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Unavailable |
|||
|
#39
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#40
MOLE 4
36Y-28348-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
MOLD, SIDE COVER 1
3EN-28345-50-00
Superseded by 1UF-2171L-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#42
MOLE 6
3CV-2834H-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#43
PANEL, INNER 3
4BH-2836M-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#44
PANEL, INNER 4
4BH-2836N-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#45
SCREW, BIND
98906-05012-00
Superseded by 98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PANEL, INNER 1
4BH-2836K-00-00
|
$236.99 | ||
|
Unavailable |
|||
|
#47
LABEL
3TU-2178A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#48
SEAL 1
4BH-28218-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#49
PANEL, INNER 2
4BH-2836L-00-00
|
$236.99 | ||
|
Unavailable |
|||
|
#50
LABEL
3TU-2178A-00-00
|
$2.30 | ||
|
Unavailable |
|||
|
#51
SEAL 3
4BH-28238-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#52
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#53
LID 1
4BH-2839K-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#54
SEAL 2
4BH-28228-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#55
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Unavailable |
|||
|
#56
TRIM
4BH-28376-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#57
EMBLEM, YAMAHA
99237-00100-00
Superseded by 99247-00100-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
EMBLEM
4BH-28315-40-00
|
$121.99 | ||
|
Unavailable |
|||
