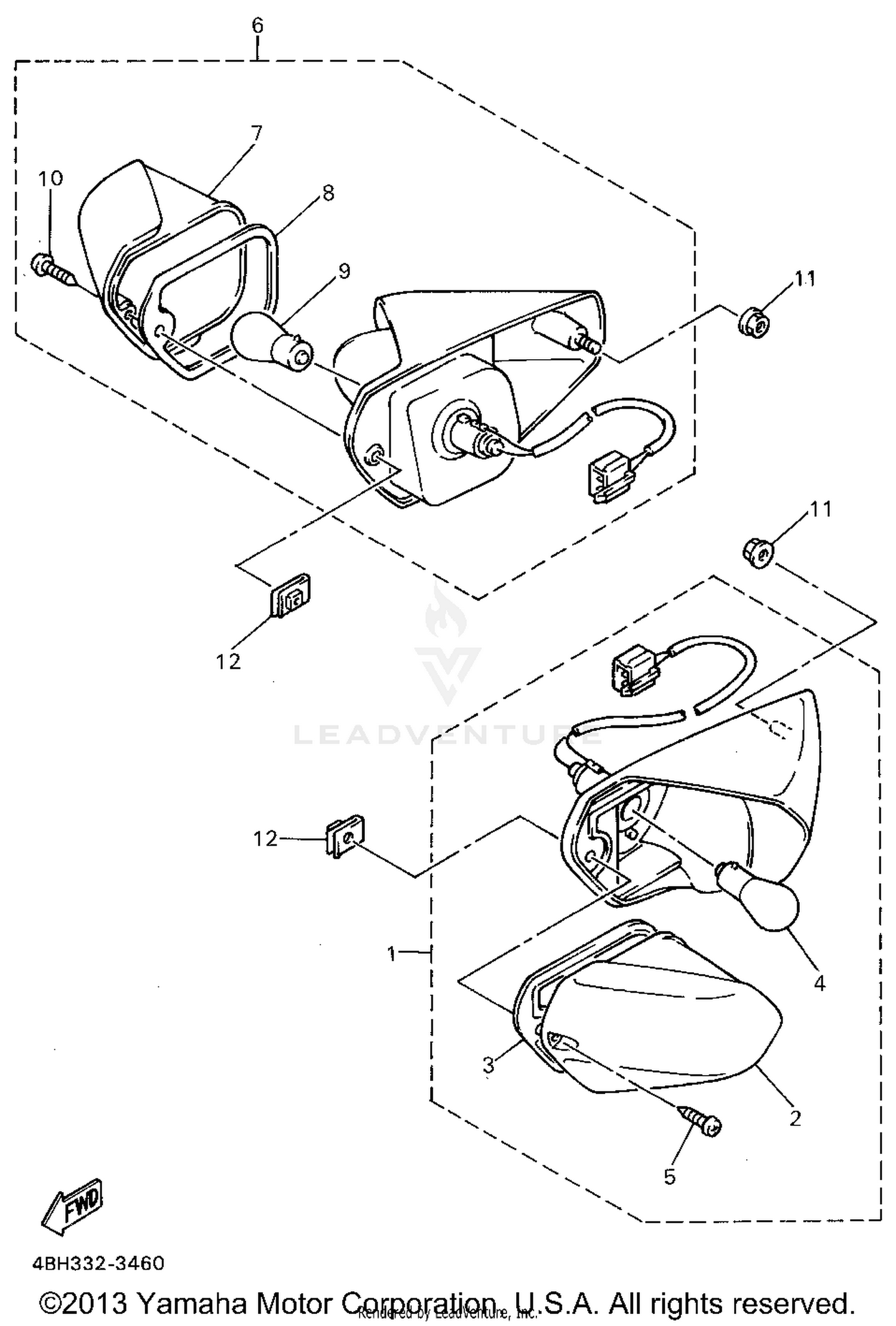

Turnsignal Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSEMBLY 1
4BH-83310-10-P1
|
$82.99 | ||
|
Unavailable |
|||
|
#2
LENS, FLASHER
4BH-83312-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#3
GASKET, FLASHER LENS
4BH-83313-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#4
BULB (12V-21/5W)
137-84714-61-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-40125-00
Superseded by 97780-40525-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRONT FLASHER LIGHT ASSEMBLY 2
4BH-83320-10-P1
|
$70.22 | ||
|
Unavailable |
|||
|
#7
LENS, FLASHER 2
4BH-83322-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#8
GASKET, FLASHER LENS
4BH-83313-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#9
BULB (12V-21/5W)
137-84714-61-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#10
SCREW, TAPPING
97702-40125-00
Superseded by 97780-40525-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-04056-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
