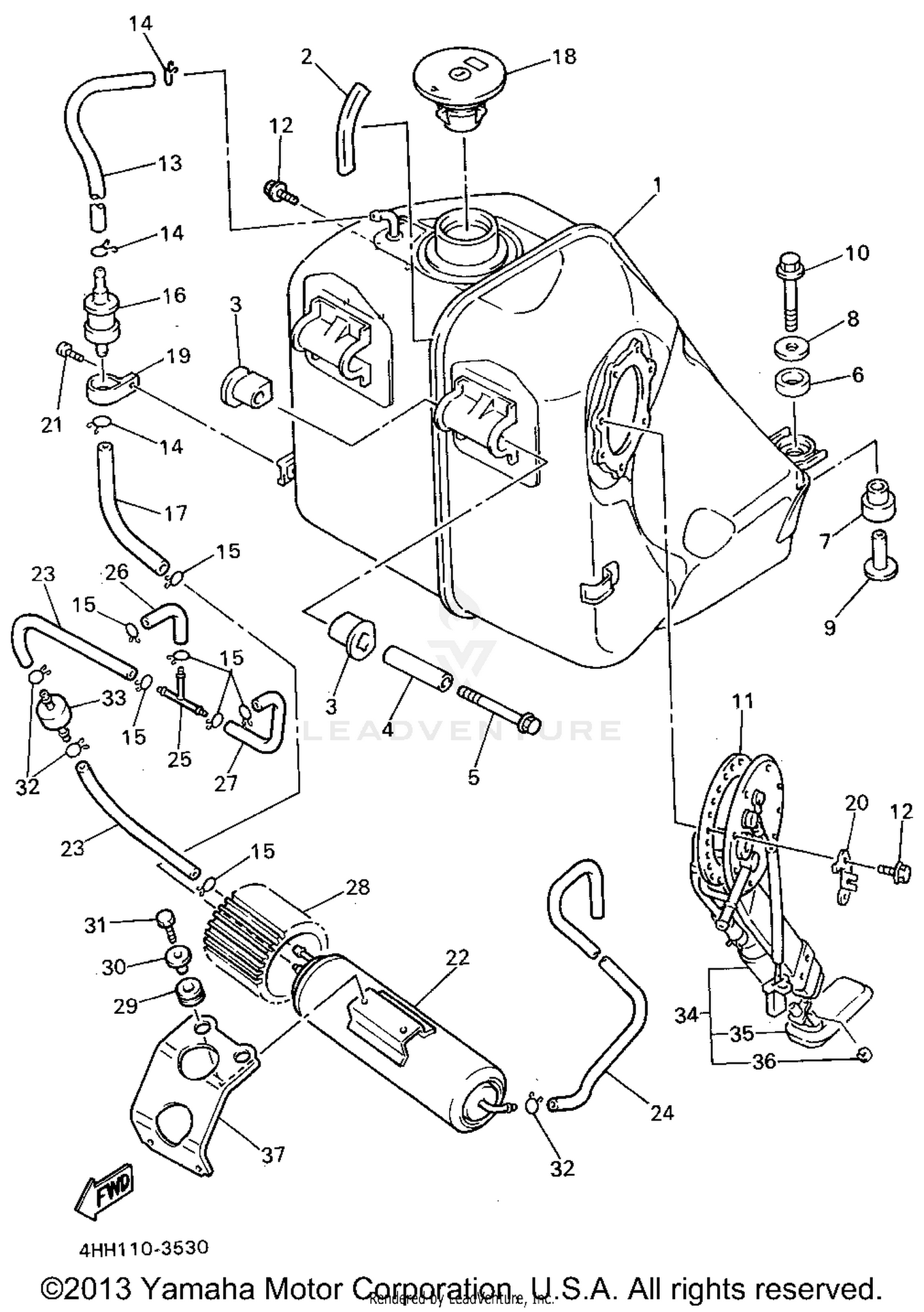

Fuel Tank California Model Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4BH-24110-00-00
|
$875.99 | ||
|
Unavailable |
|||
|
#2
MOLD, FUEL TANK
1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 1
4BH-24181-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#4
COLLAR
90387-06380-00
|
$4.00 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95811-06080-00
Superseded by 95817-06080-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
4BH-24183-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-10570-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-08612-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-0801N-00
|
$3.96 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
4BH-2414G-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-05071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE (L400)
90445-11735-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE (L400)
90445-11501-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Unavailable |
|||
|
#18
CAP ASSEMBLY
3HE-24602-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#19
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, FUEL PIPE 1
4BH-24366-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
CANISTER ASSEMBLY
4HH-24170-00-00
|
$565.99 | ||
|
Unavailable |
|||
|
#23
PIPE 3
4HH-24313-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, JOINT 1
3H3-24376-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (L400)
1XG-24312-00-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Unavailable |
|||
|
#27
PIPE, FUEL 1
1YU-24311-00-00
Superseded by 3AA-24311-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND 1
4HH-24398-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#29
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
VALVE, OUTER VENT CONTROL
1WJ-14895-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#34
FUEL PUMP COMP.
4BH-13907-00-00
|
$684.99 | ||
|
Unavailable |
|||
|
#35
FILTER
4BH-13939-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#36
WASHER
4BH-13995-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
STAY
4HH-14413-00-00
|
$26.99 | ||
|
Unavailable |
|||
