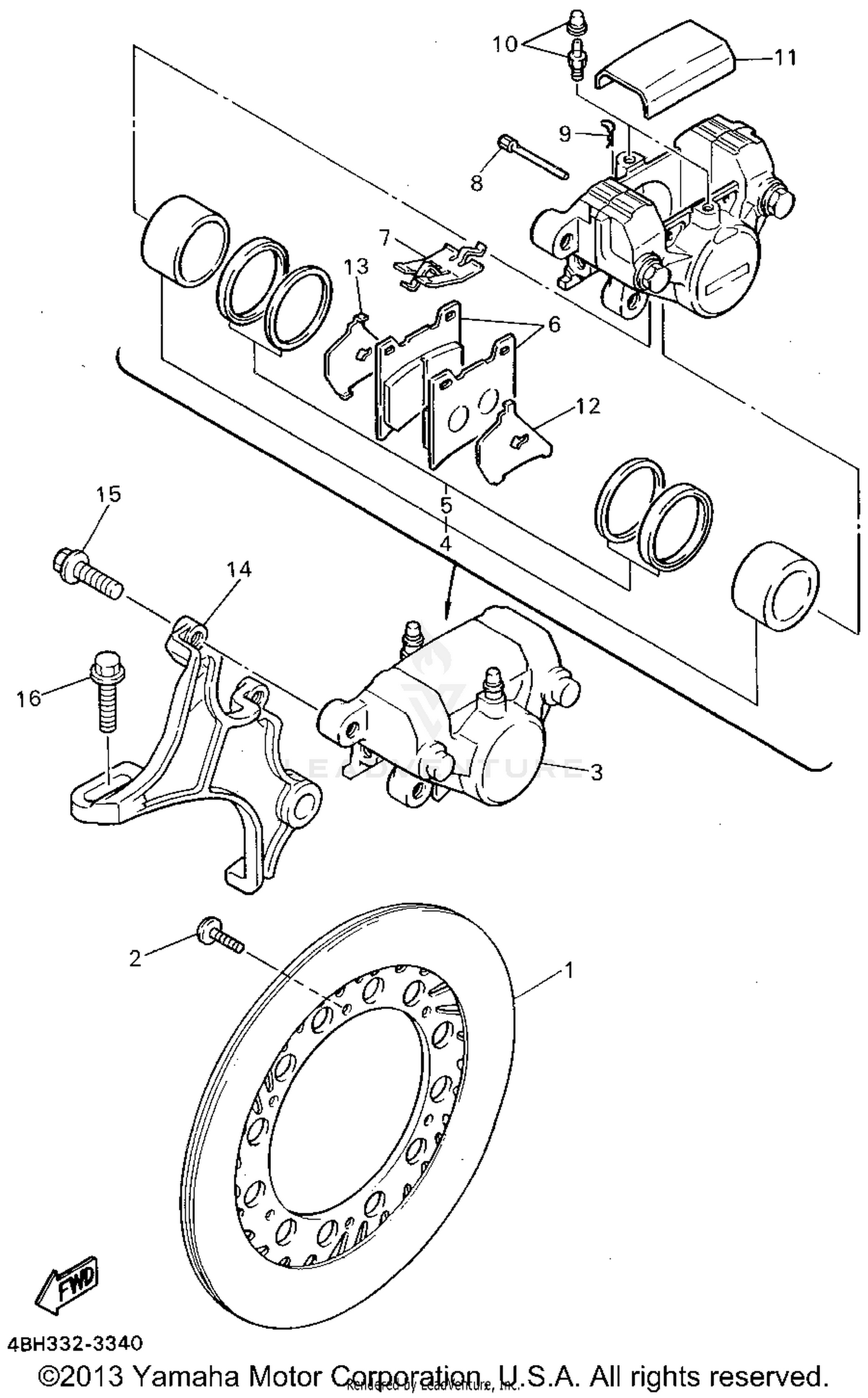

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
4BH-2582W-00-00
|
$267.99 | ||
|
Unavailable |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
4BH-2580W-00-00
Superseded by 4BH-2580W-01-00
|
$426.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
31A-W0057-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
31A-W0047-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT 2
1FK-W0046-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT, PAD
26H-25919-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
3HE-25924-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
3HE-25925-00-00
Superseded by 3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, DUST
41Y-25836-00-00
Superseded by 41Y-25836-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
SHIM, CALIPER
1FK-25827-00-00
Superseded by 1FK-25827-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, CALIPER
1FK-25828-00-00
Superseded by 1FK-25828-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, CALIPER
4BH-25819-00-00
|
$179.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-10634-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-10030-00
Superseded by 95817-10030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
