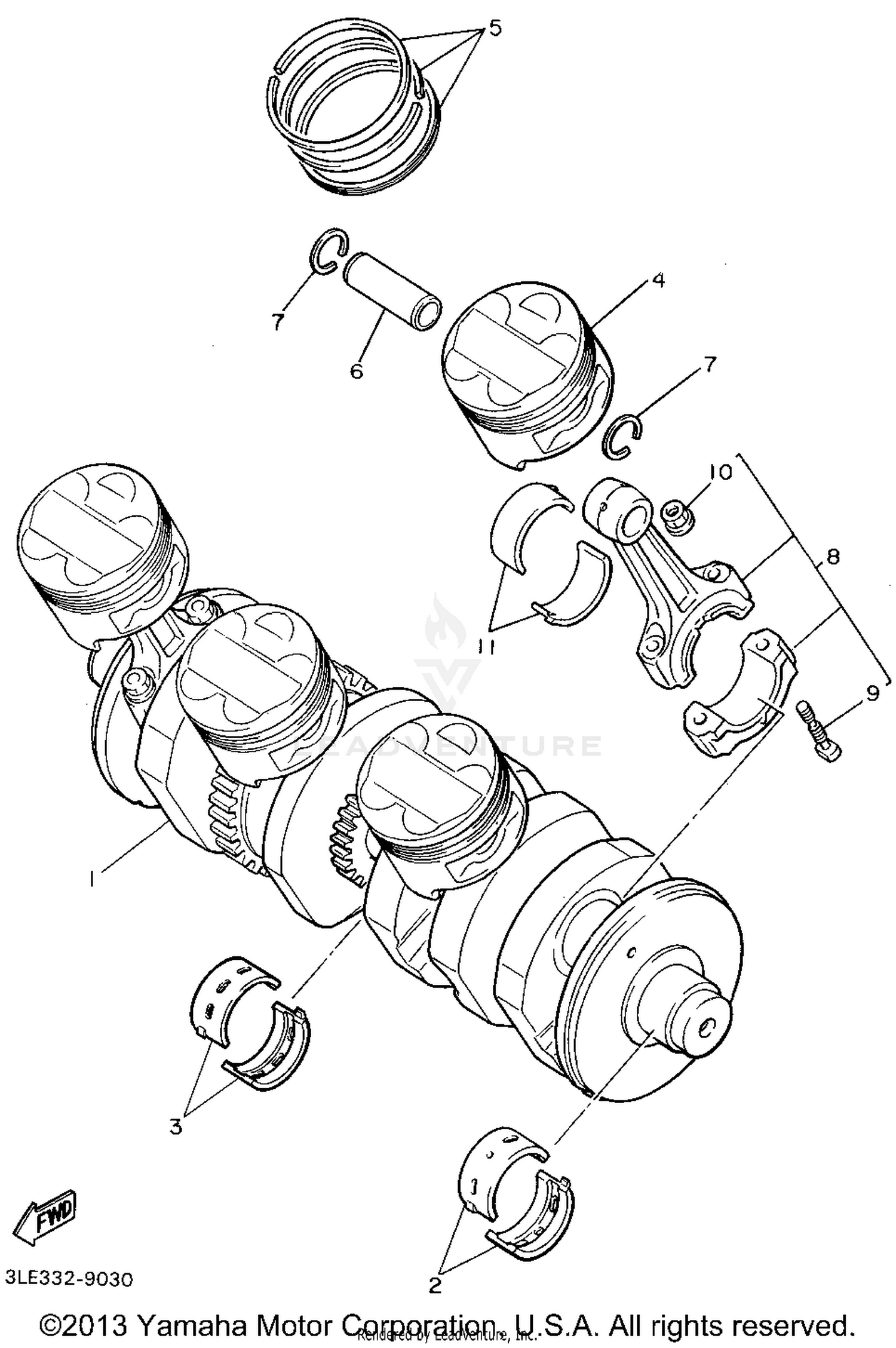

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
4BH-11411-00-00
|
$1,107.99 | ||
|
Unavailable |
|||
|
#2
PLANE BEARING, CRANKSHAFT 1
2GH-11416-40-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
2GH-11416-30-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
2GH-11416-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
2GH-11416-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
2GH-11416-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
PLANE BEARING, CRANKSHAFT 1
3GM-11416-40-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
3GM-11416-30-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
3GM-11416-20-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
3GM-11416-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
3GM-11416-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON (STD)
4BH-11631-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.50MM O/S)
4BH-11636-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#5
PISTON RING SET (0.50MM O/S)
4BH-11605-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
4BH-11603-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, PISTON
3GM-11633-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93450-19095-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTING ROD ASSEMBLY
3GM-11650-01-00
Superseded by 3GM-11650-10-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CONNECTING ROD
12R-11654-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-08327-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLANE BEARING, CONNECTING ROD
3GM-11656-20-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
3GM-11656-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
3GM-11656-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
3GM-11656-30-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
