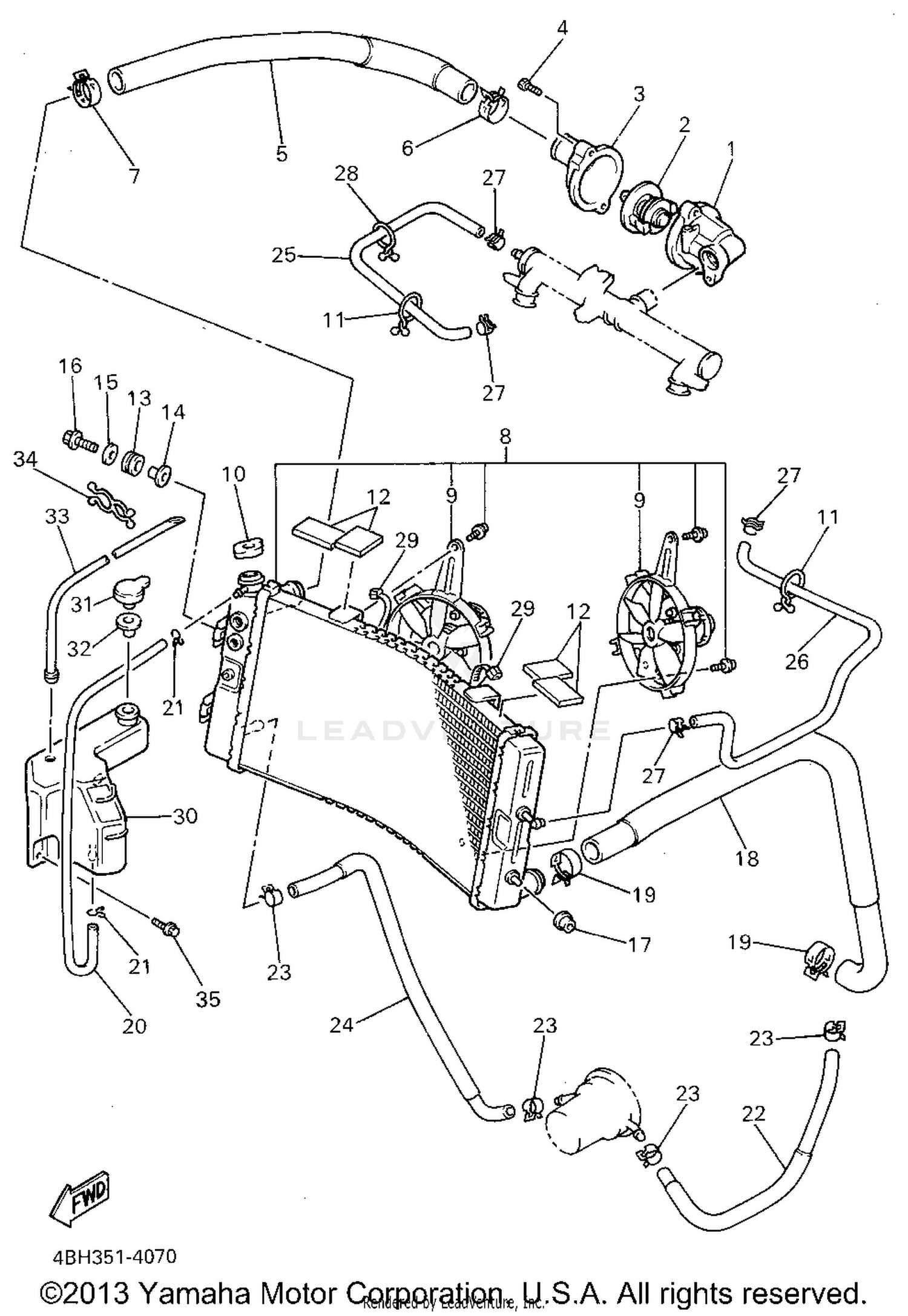

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, THERMOSTAT
3GM-12417-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#2
THERMOSTAT ASSY
3GM-12410-00-00
Superseded by 3GM-12410-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#3
COVER, THERMOSTAT
3GM-12413-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE 1
4BH-12576-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-33143-00
|
$3.36 | ||
|
Unavailable |
|||
|
#7
CLIP
90467-28142-00
Superseded by 90467-28046-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RADIATOR ASSEMBLY
4BH-1240A-00-00
|
$1,279.99 | ||
|
Unavailable |
|||
|
#9
BLOWER ASSEMBLY
4BH-12405-00-00
|
$1,044.99 | ||
|
Unavailable |
|||
|
#10
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-18116-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, SUB TANK
3BB-22261-00-00
|
$2.65 | ||
|
Unavailable |
|||
|
#13
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95826-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-20566-00
|
$2.77 | ||
|
Unavailable |
|||
|
#18
HOSE 2
4BH-12577-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#19
CLIP
90467-28142-00
Superseded by 90467-28046-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
HOSE (L460)
90445-09115-00
Superseded by 90445-083J5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE 5
4BH-12588-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-15141-00
|
$1.38 | ||
|
Unavailable |
|||
|
#24
HOSE 6
4BH-12589-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#25
HOSE 3
4BH-12578-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#26
HOSE 4
4BH-12579-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-11139-00
|
$2.37 | ||
|
Unavailable |
|||
|
#28
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
TANK, RECOVERY
4BH-21871-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#31
CAP
4L0-21875-00-00
Superseded by 1AA-21815-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
1AA-21874-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, OVERFLOW
4BH-21877-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-26114-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, WITH WASHER
90119-06192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
